Part Number # MV10-38R/SX
SKU # 2452914
Image Disclaimers Message

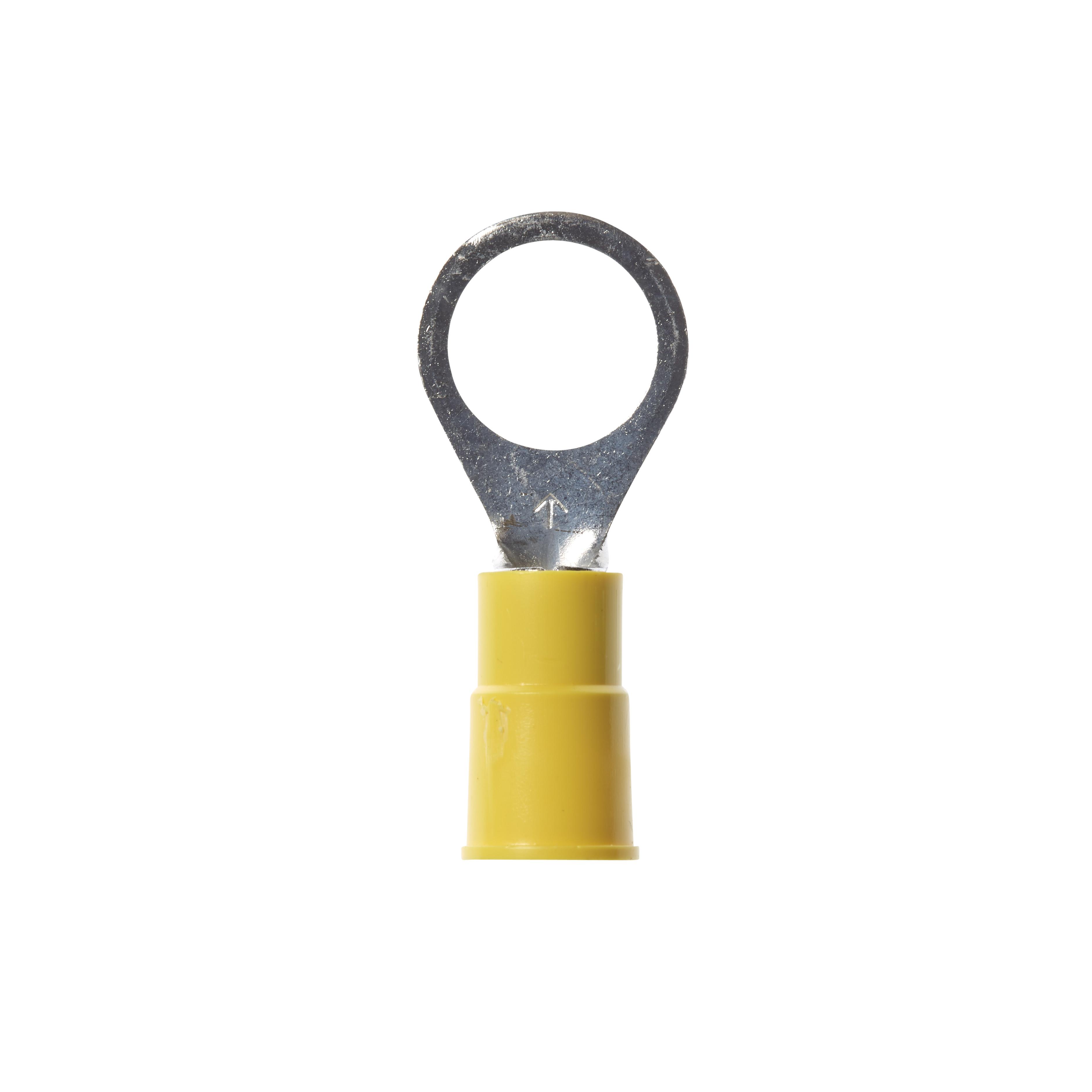

MV10-38R/SX
3M MV10-38R/SX
Part Number # MV10-38R/SX
SKU # 2452914
$56.50 / 50Each
Typical price:$71.50 / Each
3M MV10-38R/SX Key Features
| Brand: | 3M |
|---|---|
| Part Number # : | MV10-38R/SX |
| SKU #: | 2452914 |
| Temperature Rating (Degrees F): | -40 to 221 deg F |
| Tongue Size: | 0.54 in W x 0.04 in THK |
| Tongue Type: | Ring |
| Type: | Insulated Standard |
| Color: | Yellow |
| Length: | 1.26 in |
| Material: | Vinyl |
| Barrel Size: | 0.135 in ID x 0.25 in L |
| Barrel Type: | Brazed Seam |
| Conductor Size: | 12 to 10 AWG |
| Country of origin: | US |
| Finish: | Tin Plated |
| Manufacturer Name: | 3M |
| Specifications: | 1/4 in Dia Max Insulation, 0.44 in Clearance |
| UNSPSC: | 31200000 |
| UPC: | 00051128589830 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$56.50 / 50Each
Typical price:$71.50 / Each
Quantity:
- Scotchlok, 7000133421, Terminal, Insulated, 12 to 10 AWG Conductor, 3/8 in Stud, 1.26 in Length, Brazed Seam Barrel, 0.135 in ID x 0.25 in L Barrel, Ring Tongue, 0.54 in W x 0.04 in THK Tongue, 600/1000 V AC, Specifications: 1/4 in Dia Max Insulation, 0.44 in Clearance, -40 to 221 deg F, Vinyl, Tin Plated, Yellow
MV10-38R/SX Application
Building Fixtures or Luminaires, Signs and Wire ApplicationsMV10-38R/SX Item Features
- Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Standard-style ring tongue fits around the stud
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- Withstands a temperature range of -40 to 221 deg F (-40 to 105 deg C)
MV10-38R/SX Standards
LR22190 CSA Certified|Compliant|UL E23438SKU #2452914Part Number #MV10-38R/SXUNSPSC31200000UPC00051128589830
