Part Number # ERMB22CCLBUNGW
SKU # 2453047
ERMB22CCLBUNGW
Appleton ERMB22CCLBUNGW
Part Number # ERMB22CCLBUNGW
SKU # 2453047
$1229.87 / Each
Typical price:$2174.41 / Each
Appleton ERMB22CCLBUNGW Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | ERMB22CCLBUNGW |
| SKU #: | 2453047 |
| Light Output: | 133 Lumens/W |
| Series: | ERM |
| UNSPSC: | 39112102 |
| UPC: | 00078138135005 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1229.87 / Each
Typical price:$2174.41 / Each
Quantity:
Appleton ERMB22CCLBUNGW
Brand: Appleton
Part Number: ERMB22CCLBUNGW
Additional Description: APLE-ERMB22CCLBUNGW ERM 2ft Std Bkt 5K CCT Clr Gls BU
Catalog Description: Explosionproof Rigmaster Linear LED CID1 Standard fixture with large swivel bracket mounting, 2FT 4K LUMEN, 3/4 IN NPT, Cool 5000K CCT and Clear Glass lens. Linear Light Distribution pattern, 120-277 Vac 125-300 Vdc, gray color, standard wire nuts wiring method.
ERMB22CCLBUNGW Application
Suitable for use in Wet LocationsERMB22CCLBUNGW Item Features
- Low profile design makes installation easy even in compact spaces
- Screw-off cover allows quick and hassle free access to wiring compartment
- Up to four safety retention points to secure fixture and enhance workplace safety
- Mounting brackets support numerous bolt patterns to facilitate retrofit installation
- Notched position locking mechanism for aiming consistency
- One 3/4 in NPT hubs on each side for through wiring
- 1/2 in NPT available as an option
- The standard fixture offers up to 7600 lumens of uniform high quality illumination
- Operating in emergency mode, the Rigmaster delivers up to 1350 lumens with 90 min and 180 min battery backup options
- Industry-leading thermal management for safe, reliable operation over wide temperature range
- Field replaceable LED driver and lens
- 60,000+ hrs LED life for years of maintenance free operation
ERMB22CCLBUNGW Standards
NEC/CEC Certified Class I, Division 1, Groups C, D/Class II, Division 1, Groups E, F, G/Class I, Zone 1, Group IIB/Class III/Type 3R, 4, 4X, IP66/Simultaneous Exposure/Suitable for Use in Wet Locations/Marine Outside Type (Salt Water)/American Bureau of Shipping (ABS) CertifiedSKU #2453047Part Number #ERMB22CCLBUNGWUNSPSC39112102UPC00078138135005

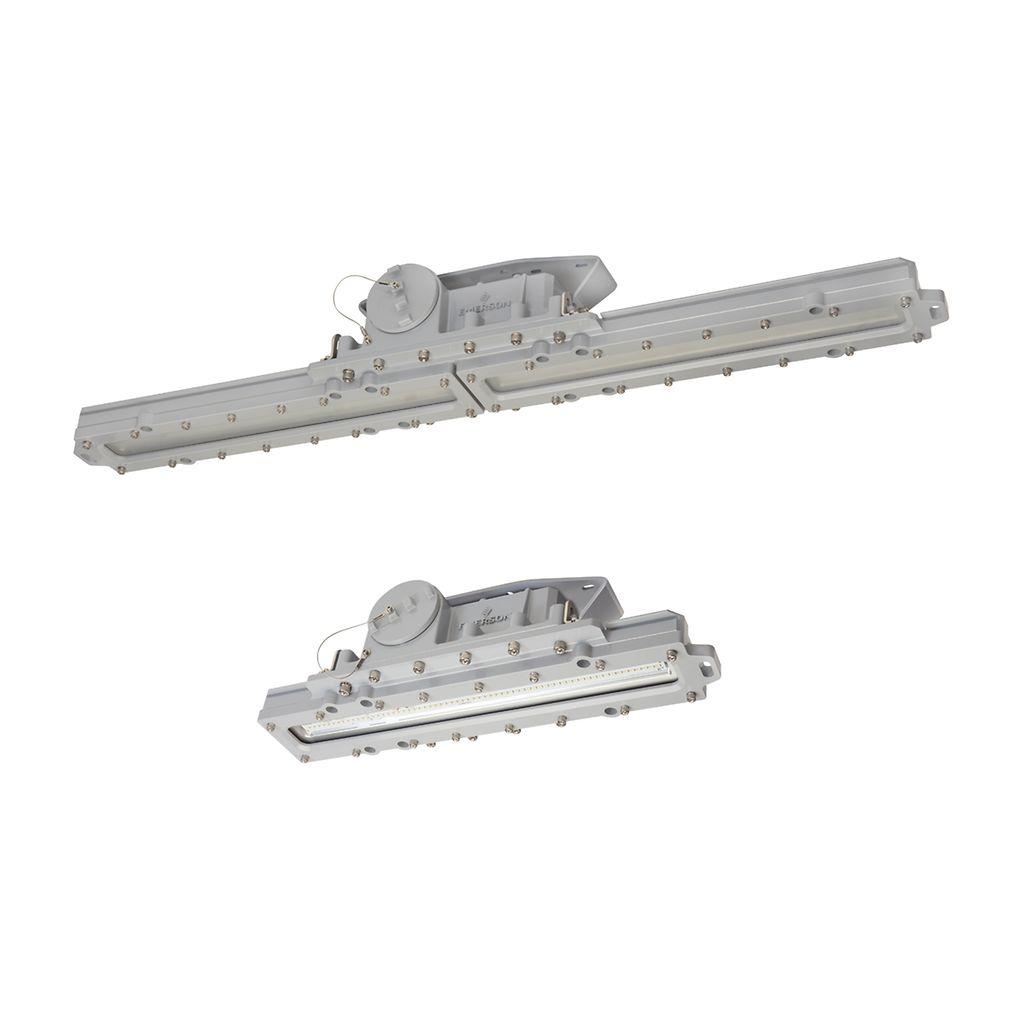

Image provided may only be a representation of final product and may include optional equipment
