Part Number # QOU3807100
SKU # 2453164
Image Disclaimers Message
QOU3807100

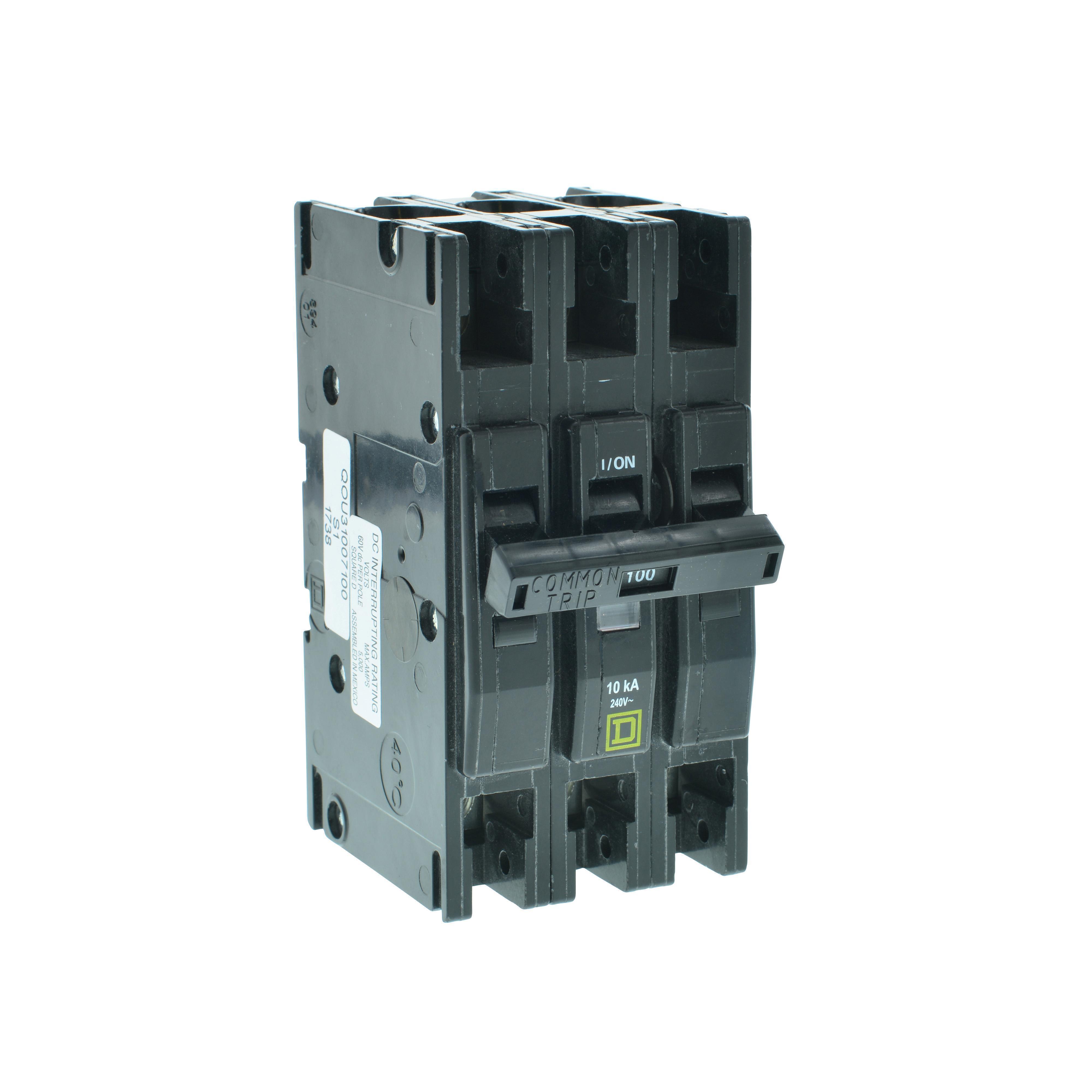

Schneider Electric QOU3807100
Part Number # QOU3807100
SKU # 2453164
$408.50 / Each
Typical price:$498.00 / Each
Schneider Electric QOU3807100 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | QOU3807100 |
| SKU #: | 2453164 |
| Amperage Rating: | 80 A |
| Dimensions: | 6.3 in H x 2.07 in W x 2.96 in D |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 10 kA at 240 VAC, 5 kA at 60 VDC |
| Number of Poles: | 3 |
| Temperature Rating (Degrees F): | 14 to 140 deg F |
| Trip Type: | Thermal Magnetic |
| Type: | Type QOU |
| Wire Size: | 12 to 2/0 AWG Al/Cu |
| Connection type: | Line/Load Lug |
| Country of origin: | US |
| Mounting type: | Unit |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121603 |
| UPC: | 00785901691693 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$408.50 / Each
Typical price:$498.00 / Each
Quantity:
- Square D Miniature Circuit Breaker, Type QOU, 240 V AC, 80 A, 50/60 Hz Frequency, 10 kA at 240 V AC, 5 kA at 60 VDC Interrupt, Thermal Magnetic Trip, 3 Pole, Line/Load Lug Connection, 12 to 2/0 AWG Al/Cu Wire, Unit Mounting, 14 to 140 deg F, 6.3 in H x 2.07 in W x 2.96 in D Dimensions
QOU3807100 Application
Commercial HVAC and Wastewater Treatment ApplicationsQOU3807100 Item Features
- Provide a means to manually open a circuit
- Automatically open a circuit under overload or short circuit conditions
- Features common tripping of all poles
- Have a Visi-Trip trip indicator
- Has lugs at both ends (cable-in/cable-out construction)
- Operate in any position
QOU3807100 Standards
RoHS Compliant|UL 489 File No. E84967|CSA C22.2 No. 5|NEMA AB1|Federal Specification W-C-375B/GEN|NOM/ANCE Certified|HACR Rated|PROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.govSKU #2453164Part Number #QOU3807100UNSPSC39121603UPC00785901691693
