Part Number # 148-90060
SKU # 2453192
Image Disclaimers Message
148-90060

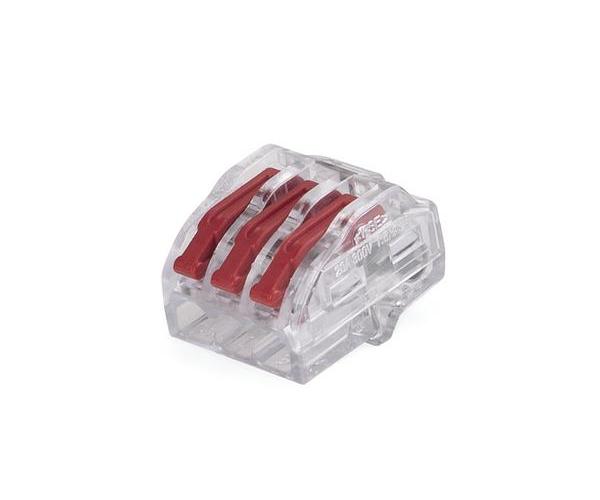

Hellermann Tyton 148-90060
Part Number # 148-90060
SKU # 2453192
Hellermann Tyton 148-90060 Key Features
| Brand: | Hellermann Tyton |
|---|---|
| Part Number # : | 148-90060 |
| SKU #: | 2453192 |
| Dimensions: | 14 mm H x 20.5 mm W x 17 mm L |
| Series: | HCRN-3 |
| Specifications: | 32 A Current, 10 mm L Stripping |
| Temperature Rating (Degrees F): | -30 to 85 deg C |
| Type: | 3 Conductors |
| Wire Type: | Solid/Stranded |
| Color: | Transparent |
| Country of origin: | CN |
| Material: | Polycarbonate |
| Manufacturer Name: | HellermannTyton |
| UNSPSC: | 39131707 |
| UPC: | 00089306485247 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hellermann Tyton 148-90060
Brand: Hellermann Tyton
Part Number: 148-90060
Additional Description: TYTO-148-90060 HELACON RELEASABLE WIRE CONNECTOR, 3-PORT, (PIECE & PA66), CLEAR, 50/PKG
Catalog Description: HelaCon Releasable Wire Connectors replace traditional twist-on wire connectors. They provide faster, easier and more reliable connections and distribution of cable and conductors in electrical installation applications. These connectors have a lever action that opens for insertion and repositioning of wires and snaps closed to establish a secure connection. Suitable for use with solid and stranded wires.
148-90060 Item Features
- Compact size connector
- Wire clamping range: 0.2 - 4.0 sq-mm
- Separate voltage test entry on the top
- For proper fixing that can be visually checked through transparent housing
- Safe application, installation and maintenance
- Quick release simplifies insertion and removal of wires for fast, safe and secure operation
- Connects solid and stranded wires within same housing for versatile wire management
- Clear housing eases inspection with visual verification that wires have been inserted properly
148-90060 Standards
RoHS Compliant|cULus Listed|ELV Compliant|UL File No. E316080|UL 94-V-0 Flammability RatingSKU #2453192Part Number #148-90060UNSPSC39131707UPC00089306485247
