Intermatic H10S23Y1DG1
Part Number # H10S23Y1DG1
SKU # 2453463

H10S23Y1DG1
Intermatic H10S23Y1DG1
Part Number # H10S23Y1DG1
SKU # 2453463
Intermatic H10S23Y1DG1 Key Features
| Brand: | Intermatic |
|---|---|
| Part Number # : | H10S23Y1DG1 |
| SKU #: | 2453463 |
| Dimensions: | 5.25 in W x 3.29 in D x 10.59 in H |
| Electrical Ratings: | 120/208 Wye V |
| Environmental Conditions: | -40 to 176 deg F |
| Indicator Type: | Blue/Red LED |
| Modes of Protection: | H-G/H-L/H-N/L-G/L-L/L-N/N-G |
| Series: | H10 Series |
| UNSPSC: | 39121634 |
| UPC: | 00078275152090 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Intermatic H10S23Y1DG1
Brand: Intermatic
Part Number: H10S23Y1DG1

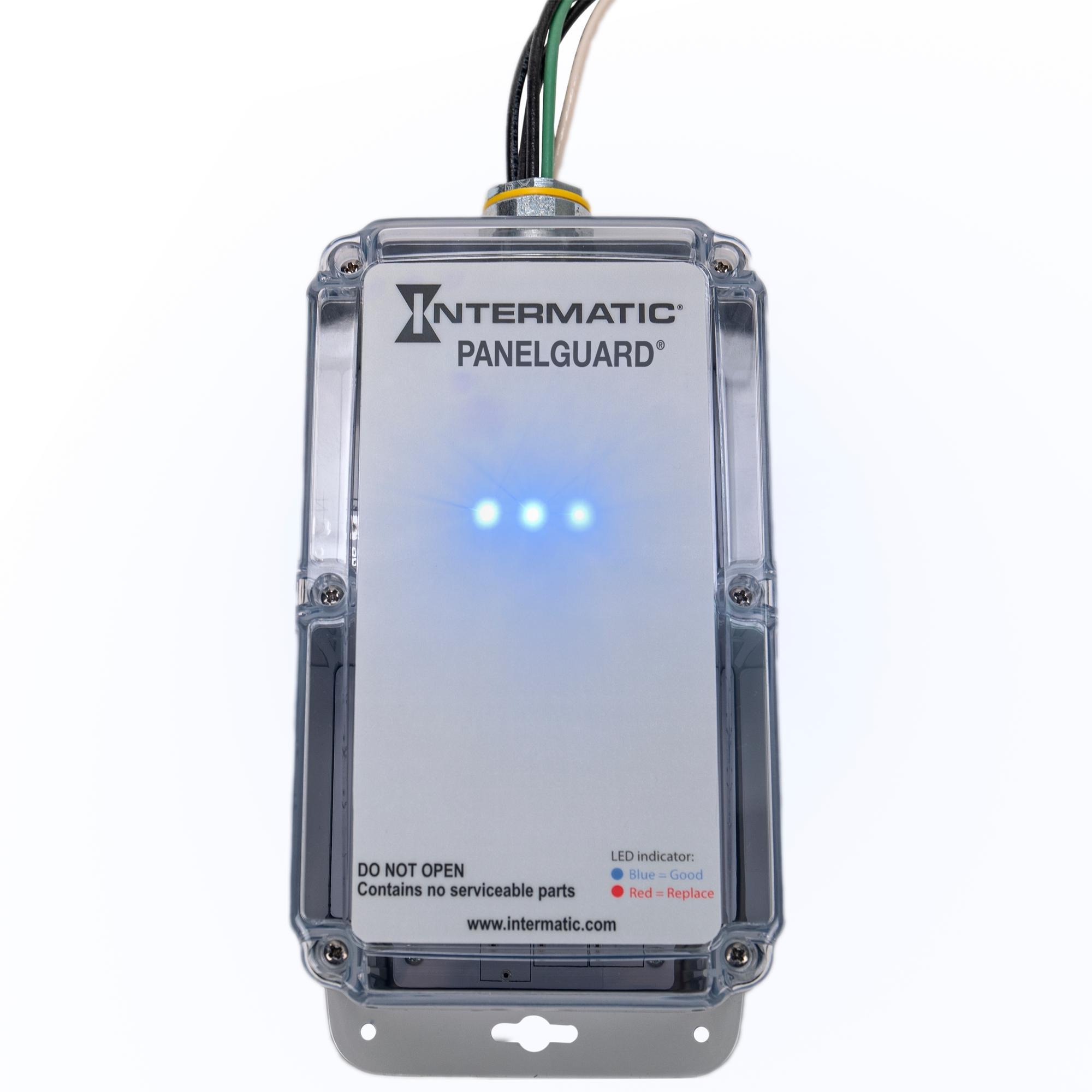

Intermatic PanelGaurd Surge Protective Device, Series: H10 Series, 120/208 Wye V Electrical Rating, 50/60 Hz Frequency, 4+G Wires, 200 kA Short Circuit, 100 kA Peak Surge Current, 150 V (L-N)/150 V (L-G)/300 V (L-L)/150 V (N-G) Clamping, 20 kA Nominal Discharge, Modes of Protection: H-G/H-L/H-N/L-G/L-L/L-N/N-G, Blue/Red LED Indicator, 3 ph, Environmental Conditions: -40 to 176 deg F, NEMA 4X/IP65 Enclosure, Lead Wire Terminal, Gray, 5.25 in W x 3.29 in D x 10.59 in H Dimensions
Additional Description: INTR-H10S23Y1DG1 SURGE PROTECTIVE DEVICE, 7-MODE, 120/208 VAC 3PH Y, TYPE 2, EMI/RFI FILTER, SURGE CURRENT RATING 100KA
Catalog Description: Surge Protective Device, 7-Mode, 120/208 VAC 3Ph Y, Type 2, EMI/RFI Filter, Surge Current Rating 100kA
H10S23Y1DG1 Application
Commercial/Industrial, Electrical Distribution Panels, Motor Control, Panel Boards, Switchboards, Switchgear, Transfer Switches, Service Entrance, HVAC Equipment Protection and Indoor/Outdoor ApplicationsH10S23Y1DG1 Includes
EMI/RFI FilterH10S23Y1DG1 Item Features
- Optional audible alarm and dry relay contacts
- NEMA 4X enclosure for indoor or outdoor installation
- Individually integrated disconnect TPMOV surge protection technology
- https://youtu.be/t9R3z5i0wOw
H10S23Y1DG1 Standards
RohS|ANSI/UL 1283|ANSI/UL 1449 4th Edition|CSA C22.2 No. 269.2-13, and No. 8-13 (VZCA, VZCA7, FOKY, KOKY7)|2020 National Electric Code|Article 242 (previously NEC, Art. 285), 700.10 & 708.20|ANSI/IEEE C62.72-2016|ANSI/IEEE C62.41.1|C62.41.2-2002|C62.45-2002|ANSI/IEEE C62.62-2010 environments: Categories: A, B & C|NFPA 780 & UL 96A Lightning protection systemsH10S23Y1DG1 Warranty
10 years LimitedSKU #2453463Part Number #H10S23Y1DG1UNSPSC39121634UPC00078275152090
Image provided may only be a representation of final product and may include optional equipment
