Part Number # L5F21S1DG2
SKU # 2453464
L5F21S1DG2
Intermatic L5F21S1DG2
Part Number # L5F21S1DG2
SKU # 2453464
Intermatic L5F21S1DG2 Key Features
| Brand: | Intermatic |
|---|---|
| Part Number # : | L5F21S1DG2 |
| SKU #: | 2453464 |
| Dimensions: | 4.81 in W x 3.54 in D x 6.46 in H |
| Electrical Ratings: | 120/240 V |
| Enclosure Type: | NEMA 4X/IP65 |
| Environmental Conditions: | -40 to 176 deg F |
| Frequency Rating: | 50/60 Hz |
| Indicator Type: | Blue/Red LED |
| Modes of Protection: | L-G/L-L/L-N/N-G |
| Number of Wires: | 3+G |
| Peak Surge Current: | 50 kA |
| Phase: | 1 |
| Series: | L5 Series |
| Short Circuit Current Rating (kA): | 200 kA |
| Terminal Type: | Lead Wire |
| Country of origin: | US |
| Manufacturer Name: | Intermatic |
| UNSPSC: | 39121634 |
| UPC: | 00078275151703 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

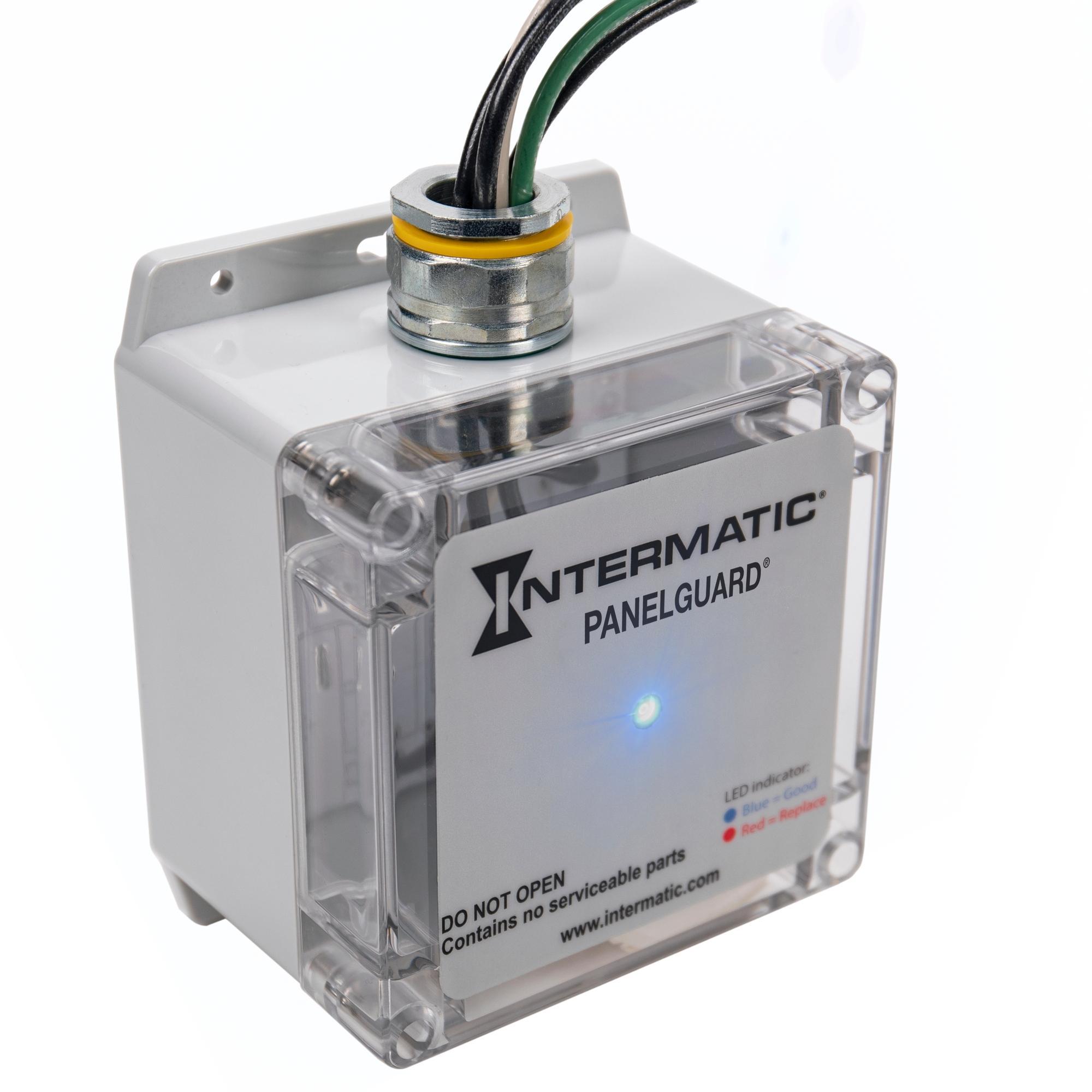

Intermatic L5F21S1DG2
Brand: Intermatic
Part Number: L5F21S1DG2
Intermatic® PanelGaurd™ Surge Protective Device, Series: L5 Series, 120/240 V Electrical Rating, 50/60 Hz Frequency, 3+G Wires, 200 kA Short Circuit, 50 kA Peak Surge Current, 150 V (L-N)/150 V (L-G)/300 V (L-L)/150 V (N-G) Clamping, 20 kA Nominal Discharge, Modes of Protection: L-G/L-L/L-N/N-G, Blue/Red LED Indicator, 1 ph, Environmental Conditions: -40 to 176 deg F, NEMA 4X/IP65 Enclosure, Lead Wire Terminal, Gray, 4.81 in W x 3.54 in D x 6.46 in H Dimensions
Additional Description: INTR-L5F21S1DG2 SURGE PROTECTIVE DEVICE, 4-MODE, 120-240 VAC 1 PH, TYPE 2, EMI/RFI FILTER, AUDIBLE ALARM, FORM C CONTACT, SURGE CURRENT RATING 50KA
Catalog Description: Surge Protective Device, 4-Mode, 120-240 VAC 1 Ph, Type 2, EMI/RFI Filter, Audible Alarm, Form C Contact, Surge Current Rating 50kA
L5F21S1DG2 Application
Commercial/Industrial, Electrical Distribution Panels, Motor Control, Panel Boards, Switchboards, Switchgear, Transfer Switches, Service Entrance, HVAC Equipment Protection and Indoor/Outdoor ApplicationsL5F21S1DG2 Includes
Audible Alarm, Dry Relay Form-C Contact and EMI/RFI FilterL5F21S1DG2 Item Features
- NEMA 4X enclosure for indoor or outdoor installation
- Individually integrated disconnect TPMOV surge protection technology
- https://youtu.be/t9R3z5i0wOw
L5F21S1DG2 Standards
RohS|ANSI/UL 1283|ANSI/UL 1449 4th Edition|CSA C22.2 No. 269.2-13, and No. 8-13 (VZCA, VZCA7, FOKY, KOKY7)|2020 National Electric Code|Article 242 (previously NEC, Art. 285), 700.10 & 708.20|ANSI/IEEE C62.72-2016|ANSI/IEEE C62.41.1|C62.41.2-2002|C62.45-2002|ANSI/IEEE C62.62-2010 environments: Categories: A, B & C|NFPA 780 & UL 96A Lightning protection systemsL5F21S1DG2 Warranty
5 years LimitedSKU #2453464Part Number #L5F21S1DG2UNSPSC39121634UPC00078275151703
Image provided may only be a representation of final product and may include optional equipment
