2591250000

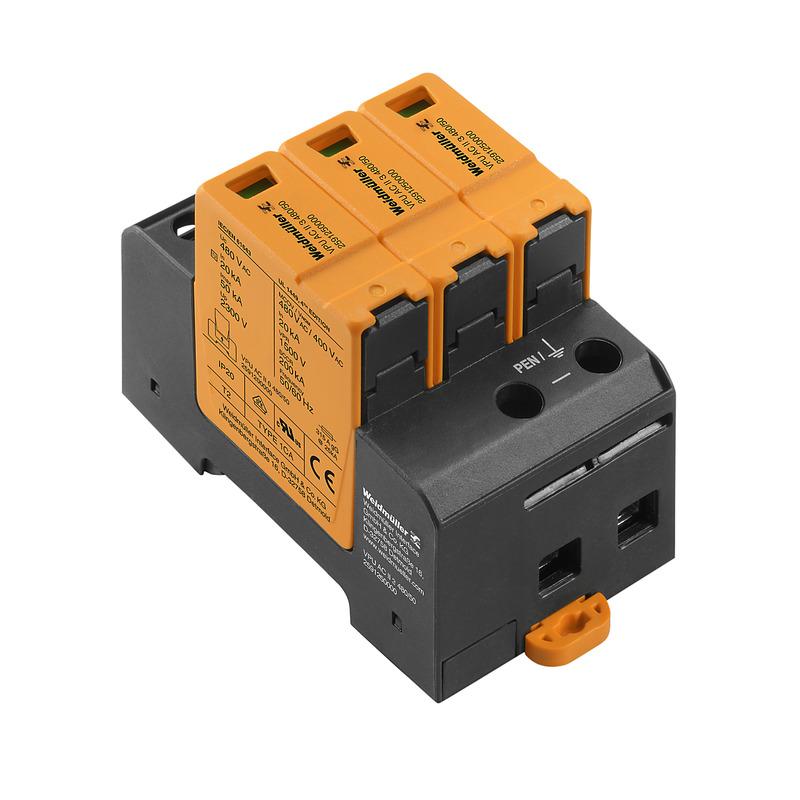

Weidmuller 2591250000
Part Number # 2591250000
SKU # 2453597
$237.18 / Each
Typical price:$263.45 / Each
Weidmuller 2591250000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 2591250000 |
| SKU #: | 2453597 |
| Class: | II |
| Dimensions: | 96.3 mm H x 54 mm W x 68 mm D |
| Electrical Ratings: | 400 V AC |
| Enclosure Type: | IP20 |
| Environmental Conditions: | -40 to 85 deg C Operating/Storage Temperature, 5 to 95% Relative Humidity |
| Frequency Rating: | 50/60 Hz |
| Modes of Protection: | L-PE |
| Number of Poles: | 3 |
| Response Time: | <=25 ns |
| Series: | VPU Series |
| Short Circuit Current Rating (kA): | 200 kA |
| Terminal Type: | Screw |
| Type: | Low Voltage |
| Country of origin: | SI |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 0 |
| UPC: | 04050118599688 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$237.18 / Each
Typical price:$263.45 / Each
Quantity:
- Weidmuller, 2591250000, Surge Protection, Low Voltage, Series: VPU Series, 400 V AC Electrical Rating, 50/60 Hz Frequency, 3 Pole, 200 kA Short Circuit, 20 to 50 kA Nominal Discharge, Modes of Protection: L-PE, <=25 ns Response, Class: II, Environmental Conditions: -40 to 85 deg C Operating/Storage Temperature, 5 to 95% Relative Humidity, IP20 Enclosure, DIN Rail Mounting, Screw Terminal, Black/Orange, 96.3 mm H x 54 mm W x 68 mm D Dimensions
2591250000 Item Features
- Weidmuller VPU I (Type I), VPU II (Type II) and VPU III (Type III) surge protection products effectively reduce the interference coupling that can occur due to transient surge voltages, even significantly below the limits prescribed by insulation co-ordination according to EN 60664-3 / DIN VDE 0110-3, this means that the whole installation is exposed to fewer malfunctions
- The arresters are tested according to product standard IEC 61643-11 / DIN EN 61643-11 and can be installed in systems according to IEC 61643-12 / VDE 0675-6-12 and IEC 62305-4 / VDE 0185-4
- This lightning and surge protection device is suited for installation in power supply systems
- Weidmuller offers different products depending on the particular mains network type and voltage level
- A special Type I and Type II protective device is even available for photovoltaic applications
2591250000 Standards
RoHS Compliant|CE Certified|cURus Listed|EAC Certified|VDESKU #2453597Part Number #2591250000UNSPSC0UPC04050118599688
Image provided may only be a representation of final product and may include optional equipment
