Brand: Erico
Erico 569041
Part Number # 569041
SKU # 2453674
Brand: Erico
569041
Erico 569041
Part Number # 569041
SKU # 2453674
$59.48 / Each
Typical price:$88.22 / Each
Erico 569041 Key Features
| Brand: | Erico |
|---|---|
| Part Number # : | 569041 |
| SKU #: | 2453674 |
| UNSPSC: | 39121421 |
| UPC: | 00078285666415 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$59.48 / Each
Typical price:$88.22 / Each
Quantity:

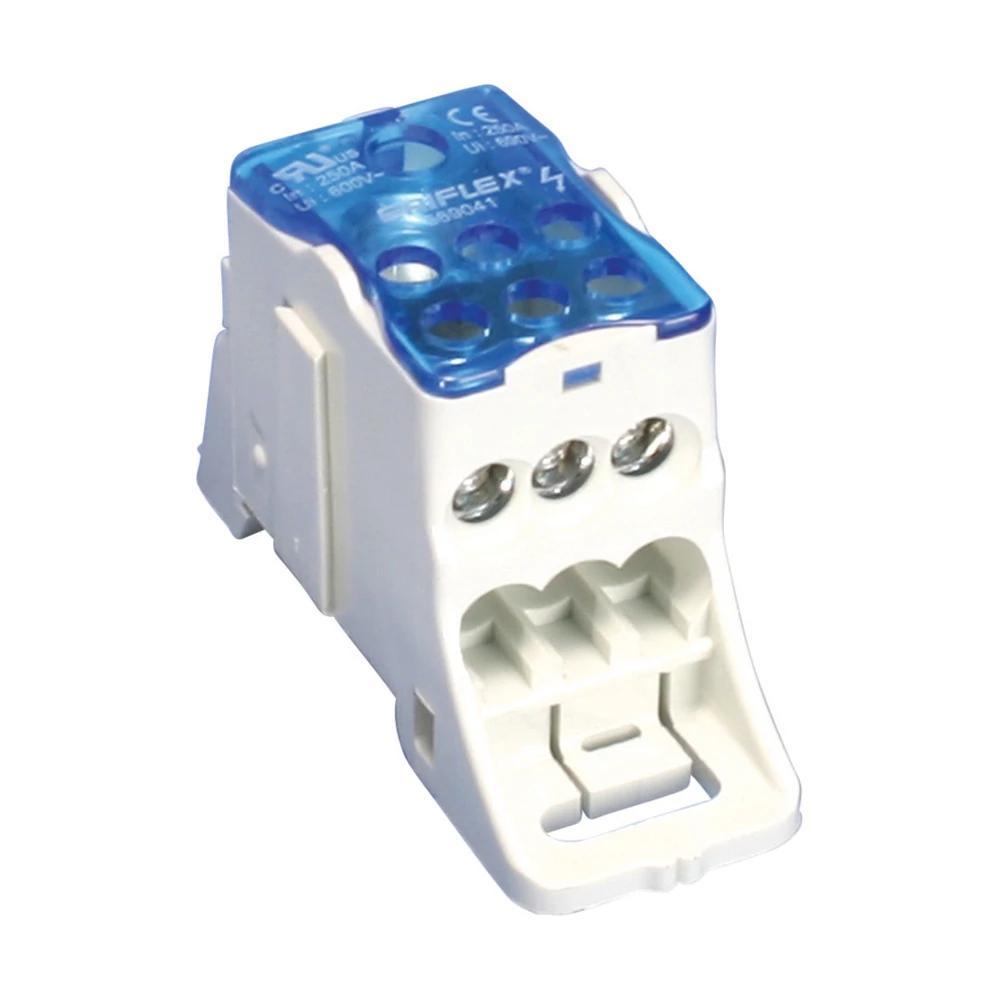

- nVent ERIFLEX Distribution Block, Series: ERI2, 600 V AC, 1000 V AC/DC, 250/255 A, 1 Pole, 1 Primary Connections/Pole, 6 Secondary Connection/Pole, (6) 10 to 4 AWG Wire, 100 kA Short Circuit, Copper/Thermoplastic, Tin Plated, 3.11 in H x 1.16 in W x 1.82 in D Dimensions
569041 Includes
569041569041 Item Features
- Tinned copper or aluminum block allows for copper or aluminum conductor direct connections, or using ferrule
- Screw retaining cover is hinged and removable
- Design allows for visual inspection of conductor and confirmation of connection
- Modular snap-together blocks for building multi-pole power blocks
- Easily clips onto DIN rail or mounts to panel with screws
- 95% fill ratio
- Halogen free
- https://youtu.be://4s_sucFZ_hQ
569041 Standards
UL 1059 E198301|cUL CSA C22.2 No. 158|E198301|UL 94V-0|CSA C22.2 No. 158-10, 70044370|IEC 60947-7-1|IEC 60529|IP20|EAC 0234267|RoHS CompliantSKU #2453674Part Number #569041UNSPSC39121421UPC00078285666415
Image provided may only be a representation of final product and may include optional equipment
