Part Number # THQB22020
SKU # 2453734
ABB THQB22020 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | THQB22020 |
| SKU #: | 2453734 |
| Amperage Rating: | 20 A |
| Dimensions: | 2 in W x 2-3/8 in D x 3-9/32 in H |
| Interrupt Rating: | 10 kA |
| Number of Poles: | 2 |
| Trip Type: | Thermal Magnetic |
| Type: | Type THQB |
| Wire Size: | 14 to 8 AWG, 12 to 8 AWG |
| Mounting type: | Bolted-On |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121603 |
| UPC: | 00783164012316 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB THQB22020
Brand: ABB
Part Number: THQB22020
Additional Description: ABB -THQB22020 (N) THQB MCB 10KA 2P 240V NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Q line circuit breakers are one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QB breakers are bolt-on versions of the Q Line used for bolting to the bus connections of load centers and lighting panels. All Q Line circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. Q Line breakers are available in 1, 2, and 3 pole versions, can be ordered with auxiliary contact and shunt trip accessories, and can be ordered for use in HID applications. 2020 Amps 20 A
THQB22020 Application
Residential, Commercial, Electrical Distribution and Control ApplicationsTHQB22020 Item Features
- Suitable for reverse feed
- Standard continuous current rated
- Fixed long time and fixed instantaneous trip function
- Copper aluminum wire
- 10 kA at 240 VAC interrupt rating
THQB22020 Standards
UL File No. E11592SKU #2453734Part Number #THQB22020UNSPSC39121603UPC00783164012316

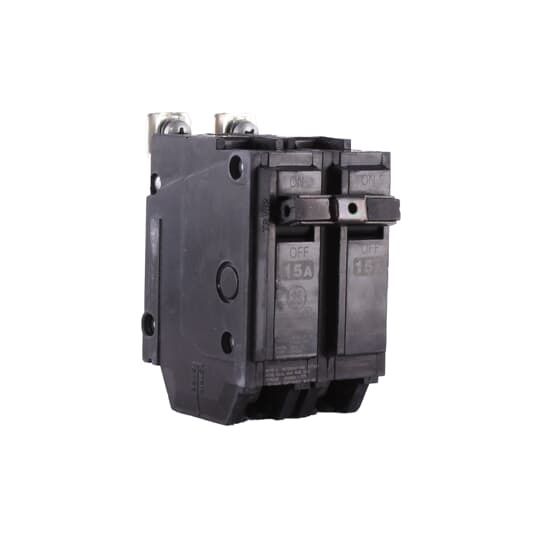

Image provided may only be a representation of final product and may include optional equipment
