Part Number # E5325-W
SKU # 2454485
Image Disclaimers Message
E5325-W

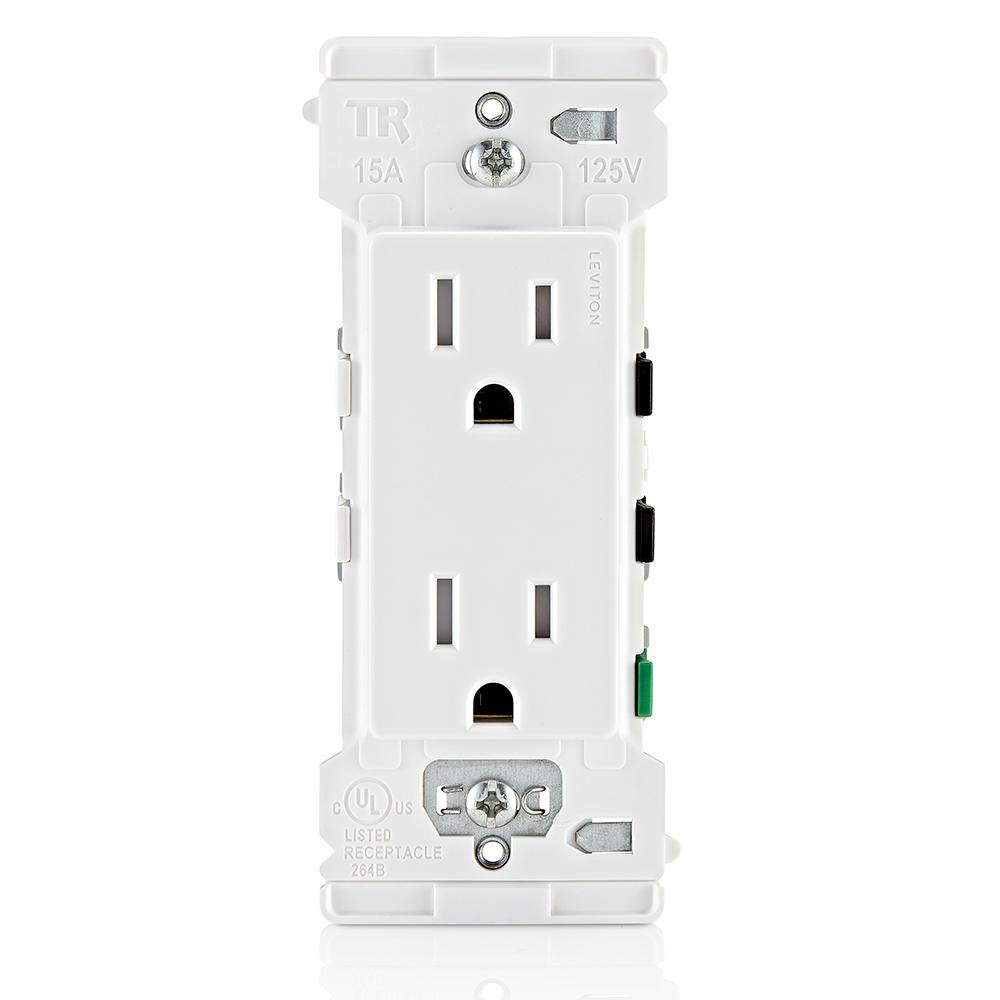

LEVITON E5325-W
Part Number # E5325-W
SKU # 2454485
$415.00 / 100Each
Typical price:$506.00 / Each
LEVITON E5325-W Key Features
| Brand: | LEVITON |
|---|---|
| Part Number # : | E5325-W |
| SKU #: | 2454485 |
| Amperage Rating: | 15 A |
| Cord Diameter: | 14 to 12 AWG |
| Dimensions: | 4.56 in H x 1.78 in W x 1.18 in D |
| NEMA Rating: | Type 3R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Terminal Type: | Side Wire |
| Type: | Self-Grounded |
| Country of origin: | CN |
| Material: | Thermoplastic |
| Manufacturer Name: | Leviton |
| UNSPSC: | 39122200 |
| UPC: | 00078477332559 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$415.00 / 100Each
Typical price:$506.00 / Each
Quantity:
- Leviton, E5325-W, Receptacle, Self-Grounded, 125 V AC, 15 A, 2 Pole, 3 Wires, Type 3R NEMA Rating, 14 to 12 AWG Diameter Cord, Side Wire Terminal, Thermoplastic, 4.56 in H x 1.78 in W x 1.18 in D Dimensions
E5325-W Application
Allows for split circuit applicationsE5325-W Item Features
- Provides the traditional appearance and superior performance of Decora devices in a new, faster, easier-to-install, and safer design
- Patent pending lever terminals for fast, efficient wiring
- Color-coded lever terminals reduces risk of miswiring
- Lever doors have snap feature to assure connection has been made, audible click confirms lever door is closed
- Only Residential device on the market with a quick termination ground wire
- No exposed metal parts for enhanced safety, eliminates need for electrical tape
- Straps unique tongue and groove alignment offers quicker trim out on multi-gang installations
- Lever connectors work with 14 ga and 12 ga stranded and solid copper wire
- Wire openings prevent wire insulation from being inserted into the terminals
- One standard strip gauge for all devices
- Devices coordinate seamlessly with other Decora devices
- Longer and wider strap is compatible with Midway wallplates, and with Standard sized wallplates when breakaway tab is removed
- Can be used with Decora wallplates and Decora Plus screwless wallplates
- Outlet allows for split circuit applications
- Outlet is Tamper-Resistant to help prevent access by most non-rated/foreign objects
- https://www.youtube.com/embed/Kcw2baTJlXo
E5325-W Standards
C22.2 No. 42: File 152105|NOM|UL 498 File E13399|NEC CompliantSKU #2454485Part Number #E5325-WUNSPSC39122200UPC00078477332559
