Brand: Erico
Erico 569207
Part Number # 569207
SKU # 2454785
Brand: Erico
569207
Erico 569207
Part Number # 569207
SKU # 2454785
$147.12 / Each
Typical price:$218.20 / Each
Erico 569207 Key Features
| Brand: | Erico |
|---|---|
| Part Number # : | 569207 |
| SKU #: | 2454785 |
| Amperage Rating: | 760/1000 A |
| Dimensions: | 2.17 in W x 5.8 in D x 3.14 in H |
| Finish: | Tin Plated |
| Number of Poles: | 1 |
| Series: | UD Series |
| Short Circuit Current Rating (kA): | 100 kA |
| Wire Size: | 2 AWG to 500 kcmil Line Side/#12 to #4 AWG Load Side |
| Country of origin: | CN |
| Material: | Aluminum/Thermoplastic |
| Manufacturer Name: | nVent |
| UNSPSC: | 39121421 |
| UPC: | 00078285697541 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$147.12 / Each
Typical price:$218.20 / Each
Quantity:

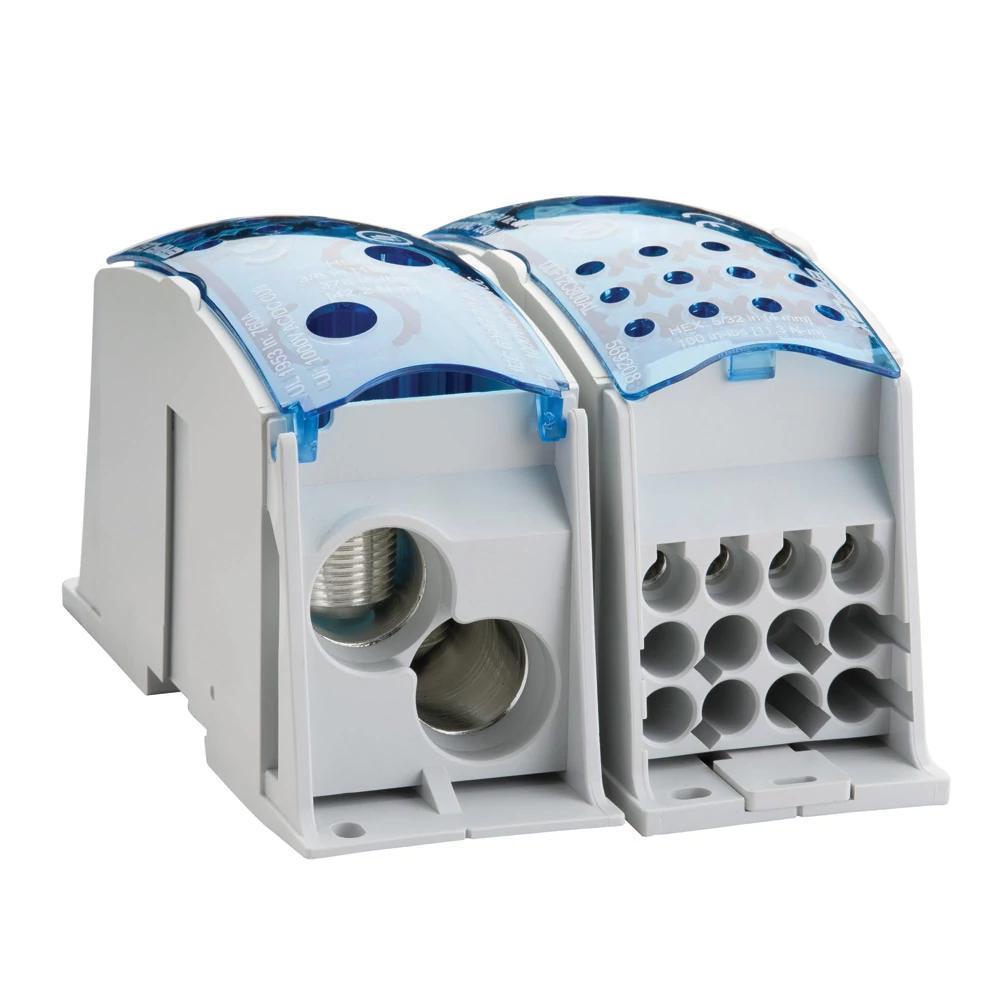

- nVent ERIFLEX Distribution Block, Series: UD Series, 1000 VAC/VDC, 1500 VDC, 760/1000 A, 1 Pole, (2) Line Primary Connections/Pole, (12) Load Secondary Connection/Pole, 2 AWG to 500 kcmil Line Side/#12 to #4 AWG Load Side Wire, 100 kA Short Circuit Current Rating, Aluminum/Thermoplastic, Tin Plated, 2.17 in W x 5.8 in D x 3.14 in H
569207 Application
For visual inspection of conductor and confirmation of connection569207 Item Features
- Tinned copper or aluminum block allows for copper or aluminum conductor direct connections, or using ferrule
- Screw retaining cover is hinged and removable
- Modular snap-together blocks for building multi-pole power blocks
- Easily clips onto DIN rail or mounts to panel with screws
- 95% fill ratio
- Halogen free
- https://youtu.be://8C8KPiqDfR8
569207 Standards
RoHS Compliant|CSA Certified|IEC 60947-7-1|UL 1953/94 V-0SKU #2454785Part Number #569207UNSPSC39121421UPC00078285697541
Image provided may only be a representation of final product and may include optional equipment
