Part Number # CD1X0004F
SKU # 2454854
CD1X0004F
Hammond Power Solutions CD1X0004F
Part Number # CD1X0004F
SKU # 2454854
$319.84 / Each
Typical price:$403.00 / Each
Hammond Power Solutions CD1X0004F Key Features
| Brand: | Hammond Power Solutions |
|---|---|
| Part Number # : | CD1X0004F |
| SKU #: | 2454854 |
| Enclosure Type: | Open Frame |
| Horsepower: | 2 hp NEC 400, 3 hp NEC 600 |
| Series: | CD1X |
| Type: | Natural Convection Cooling |
| Height: | 5.5 in |
| Mounting type: | Wall/Ceiling/Floor |
| UNSPSC: | 83101808 |
| UPC: | 00803423168049 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$319.84 / Each
Typical price:$403.00 / Each
Quantity:
- HPS, CD1X0004F, Filter, Natural Convection Cooling, Series: CD1X, 600 V, 4 A, 2 hp NEC 400, 3 hp NEC 600, 5.5 in Height, 8 in Width, 6 in Depth, Open Frame Enclosure, Wall/Ceiling/Floor Mounting
CD1X0004F Application
Designed for applications with long cables between the VFD and the motorCD1X0004F Item Features
- The dV/dT filter combines an inductor and parallel resistor network to mitigate both high frequency components and voltage spikes between the VFD and motor
- The filter can mitigate the effects of reflected wave voltages greater than what a reactor alone can accomplish
- The filter provides protection to the motor by slowing down the rate of voltage increase and minimizes the damaging peak voltages that occur within the motors windings and along the length of cables feeding the motor
CD1X0004F Standards
cULSKU #2454854Part Number #CD1X0004FUNSPSC83101808UPC00803423168049

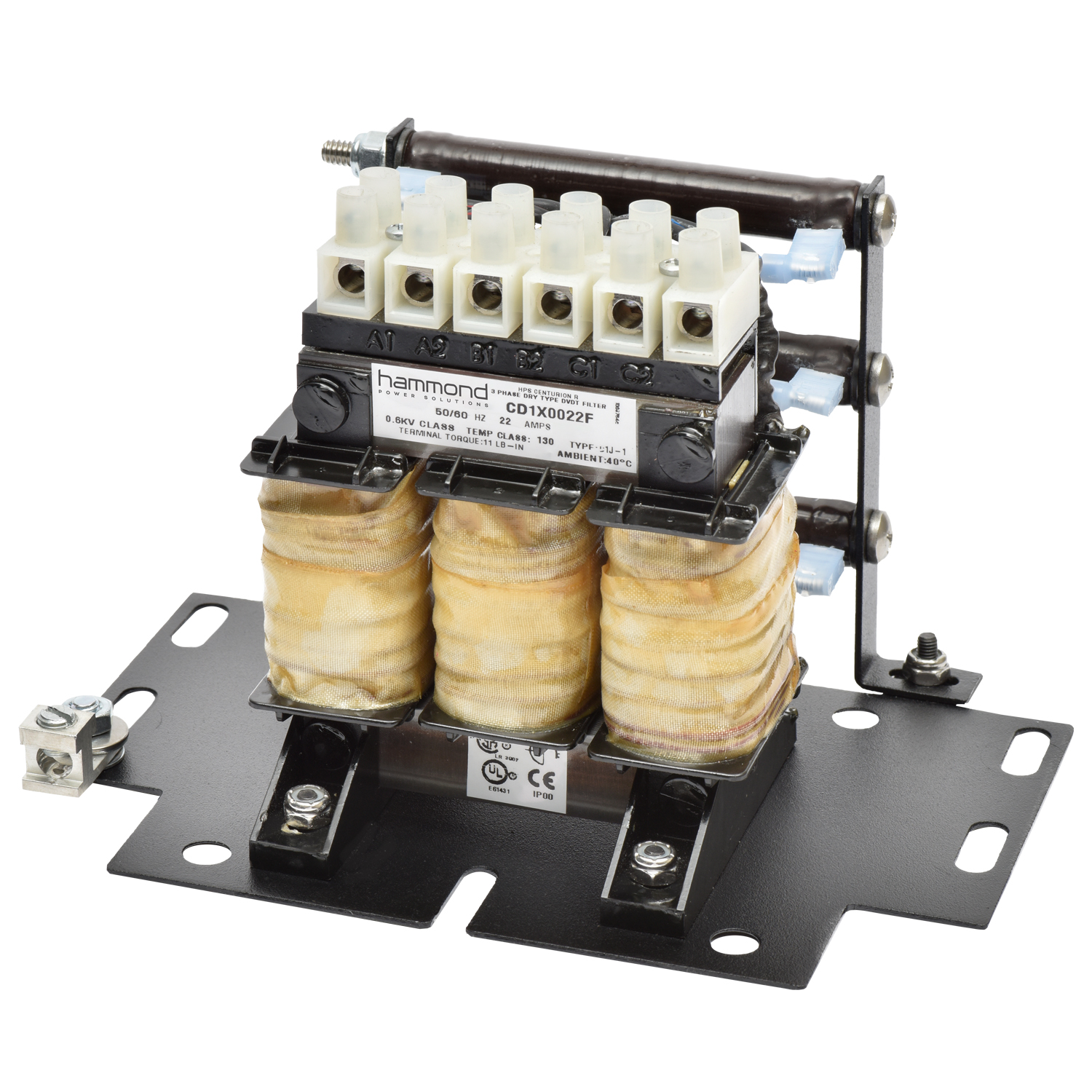

Image provided may only be a representation of final product and may include optional equipment
