Part Number # BPS300B
SKU # 2455283
Image Disclaimers Message
BPS300B
B-Line BPS300B
Part Number # BPS300B
SKU # 2455283
$20.06 / Each
Typical price:$27.67 / Each
B-Line BPS300B Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | BPS300B |
| SKU #: | 2455283 |
| Dimensions: | 13-1/2 in L |
| Finish: | Paintable |
| Temperature Rating (Degrees F): | -40 to 178 deg F |
| Color: | Black |
| Country of origin: | CN |
| Material: | Polypropylene Copolymer |
| Mounting type: | Strut/Trapeze |
| Manufacturer Name: | Eaton |
| Shield Size: | 3.46 in |
| UNSPSC: | 40141725 |
| UPC: | 00079903879137 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$20.06 / Each
Typical price:$27.67 / Each
Quantity:

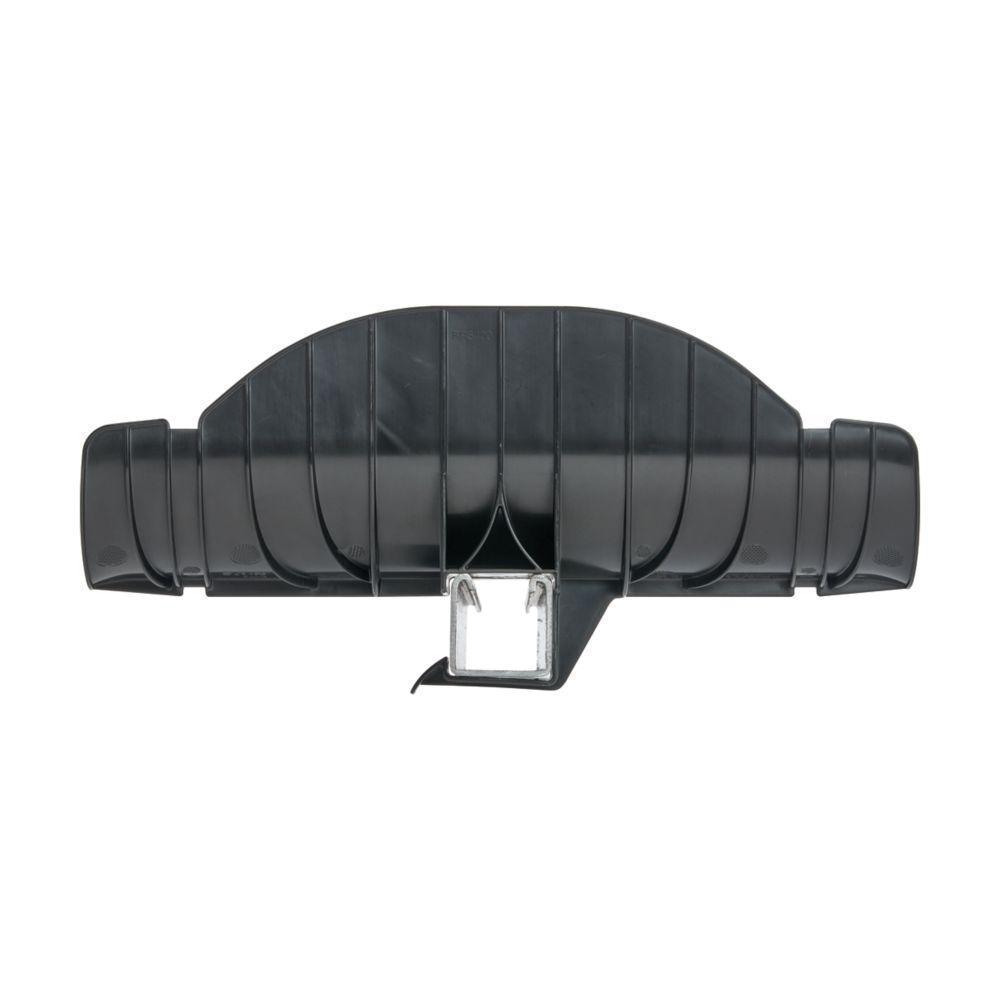

- B-Line Pipe Support, 3.46 in Shield, Polypropylene Copolymer, Paintable, Black, Strut/Trapeze Mount, 13-1/2 in L, -40 to 178 deg F, Import
BPS300B Application
For strut or trapeze mounted horizontal pipe runs for refrigeration, air conditioning and plumbingBPS300B Item Features
- Fast, easy installation - snaps onto strut channel up to 60% quicker than traditional metal shields
- No tools required
- Horizontal installation attachment feature to minimize the need to lift the pipe during installation
- Tight snap-on fit design helps eliminate shield movement which helps prevent insulation damage
- Tapered lip end design helps protect insulation from damage that can be caused by sharp edge of traditional saddles
- High sidewalls are designed to contain refrigerant liquid lines for efficient system installation
- Designed for side-by-side installation to help minimize costs in high density applications
- Wide mounting flange to allow for optional self-tapping screws
- MSS standards require 12 in of surface contact for pipe sizes up to 4 in, all sizes of Snap N Shield have 12 in of surface contact
- Built-in cable tie grooves
BPS300B Standards
cULus Listed|FDA Compliant|CA PROP65 CompliantSKU #2455283Part Number #BPS300BUNSPSC40141725UPC00079903879137
