Part Number # A1040295
SKU # 2455393
LUTZE A1040295 Key Features
| Brand: | LUTZE |
|---|---|
| Part Number # : | A1040295 |
| SKU #: | 2455393 |
| Number of Conductors: | 1 Pair |
| Outside Diameter: | 0.228 in |
| Series: | A104 |
| Temperature Rating (Degrees F): | -10 to 70 deg C Moving, -40 to 80 deg C Fixed |
| UNSPSC: | 0 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

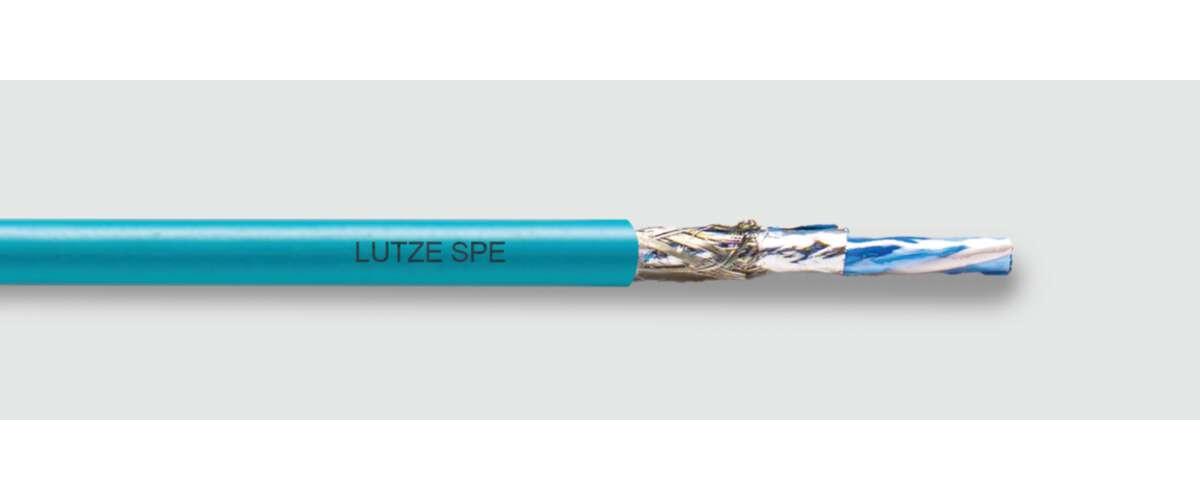

- LUTZE, A1040295, Ethernet Cable, Series: A104, 300 V, 1 pair Conductors, Stranded Conductor, 22 AWG Conductor, 0.228 in OD, 7 Strands, Polyolefin Insulation, PVC Jacket, Teal Jacket, -10 to 70 deg C Moving, -40 to 80 deg C Fixed
A1040295 Application
For the cabling of Industrial Single Pair Ethernet systems, Cable design for harsh industrial environments and operating conditions with high noise levels, Application in automation technology, transport and conveyor technology, machine tool manufacture, Designed to IEC 61156-11 (40 m) and IEEE 802.3cg (25 m), PODL compatibleA1040295 Item Features
- High protection against electromagnetic interference (EMI)
- PODL compatible
- For the cabling of industrial Single Pair Ethernet systems
- Cable design for industrial environments and operating conditions with high electrical noise levels
A1040295 Standards
CMG|PLTC|Class I and II, Div. 2|Class 1 Div. 2 per NEC|501/502/505|IEC 61156-11|IEEE 802.3cgSKU #2455393Part Number #A1040295UNSPSC0UPC
Image provided may only be a representation of final product and may include optional equipment
