Part Number # SH31401P01A2100
SKU # 2455470
Image Disclaimers Message
SH31401P01A2100

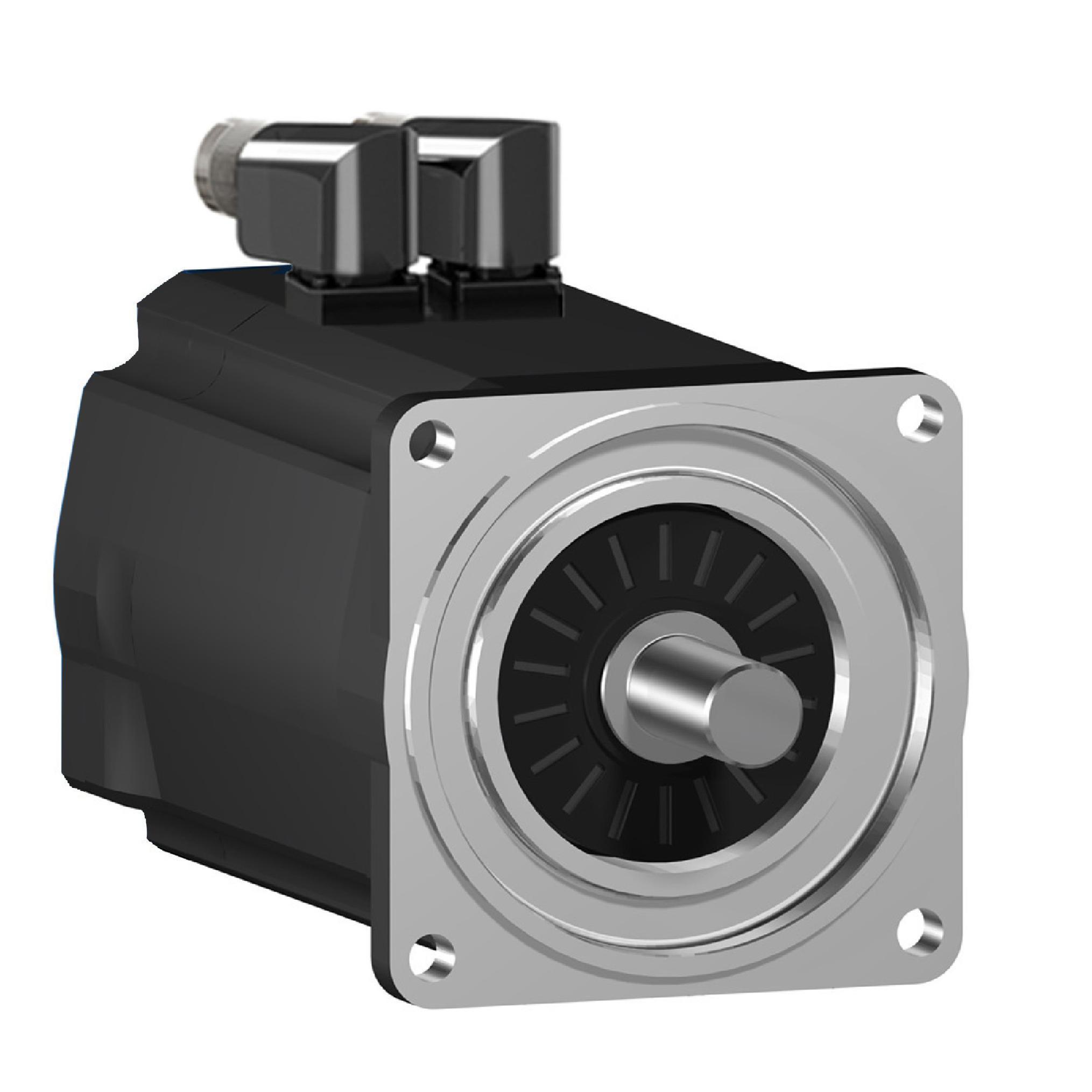

Schneider Electric SH31401P01A2100
Part Number # SH31401P01A2100
SKU # 2455470
$4275.47 / Each
Schneider Electric SH31401P01A2100 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | SH31401P01A2100 |
| SKU #: | 2455470 |
| Amperage Rating: | 20.8 A |
| Dimensions: | 5.51 in W x 8.58 in D x 7.01 in H |
| Enclosure Type: | IP65 |
| Horsepower: | 3.9 hp |
| Series: | SH3 140 |
| Shaft Size: | 0.94 in Dia x 1.97 in L |
| Special Features: | Synchronous Permanent Magnet AC Motors |
| Speed: | 4000 rpm |
| Temperature Rating (Degrees F): | -4 to 104 deg F |
| Torque Rating: | 96.92 to 74.35 in-lbf |
| Type: | 3-Phase Singleturn Smooth Shaft End Natural Convection |
| Country of origin: | US |
| Insulation class: | Class F |
| Mounting type: | Flange |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121021 |
| UPC: | 03606481550637 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4275.47 / Each
Quantity:
Schneider Electric SH31401P01A2100
Brand: Schneider Electric
Part Number: SH31401P01A2100
Additional Description: SQD -SH31401P01A2100 SH3 MOTOR 140.1 SGL ANG IP65
Catalog Description: servo motor SH3 140 11,1Nm,nokey,single,nobrake,90°conn.IP65/IP65,4k RPM
SH31401P01A2100 Application
General Machine Control, Packaging Machine Automation and Handling ApplicationsSH31401P01A2100 Item Features
- Overload capacity - high peak current (up to 4X the continuous current)
- Increases the range of movement
- Power density - the compact size of the servo drives offers maximum efficiency in a small space
- External braking resistors, when the Servo Motor has to be braked frequently
- Line chokes for improved protection against over voltages to reduce harmonic distortion of the current
- Additional EMC input filters to reduce conducted emissions on the line supply below the limits of standard IEC/EN 61800-3 edition 2, category C2 or C3
- Without holding brake and key
- 96.92 in-lbf at 115 V 3 ph, 93.82 in-lbf at 230 V 3 ph, 81.43 in-lbf at 400 V 3 ph and 74.35 in-lbf at 480 V 3 ph
SH31401P01A2100 Standards
CE Certified|EN/IEC 60034-5|Green Premium Listed|REACH Compliant|RoHS Compliant|UL 1004|WEEE Certified|PROP65: This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.govSKU #2455470Part Number #SH31401P01A2100UNSPSC39121021UPC03606481550637
