Part Number # 722814
SKU # 2455564
Image Disclaimers Message
722814
LUTZE 722814
Part Number # 722814
SKU # 2455564
$2598.54 / Each
Typical price:$3401.73 / Each
LUTZE 722814 Key Features
| Brand: | LUTZE |
|---|---|
| Part Number # : | 722814 |
| SKU #: | 2455564 |
| Amperage Rating: | 100 A |
| Case Material: | Aluminum |
| Frequency Rating: | 47 to 63 Hz |
| Input Voltage: | 340 to 550 V AC, 340 to 550 VAC |
| Series: | Compact |
| Type: | 3-Phase Primary Switch Mode |
| Country of origin: | TW |
| Depth: | 111 mm |
| Height: | 169 mm |
| Mounting type: | DIN Rail |
| Output voltage: | 24 V DC, 24 VDC |
| Width: | 233 mm |
| Manufacturer Name: | LUTZE Inc |
| UNSPSC: | 0 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2598.54 / Each
Typical price:$3401.73 / Each
Quantity:

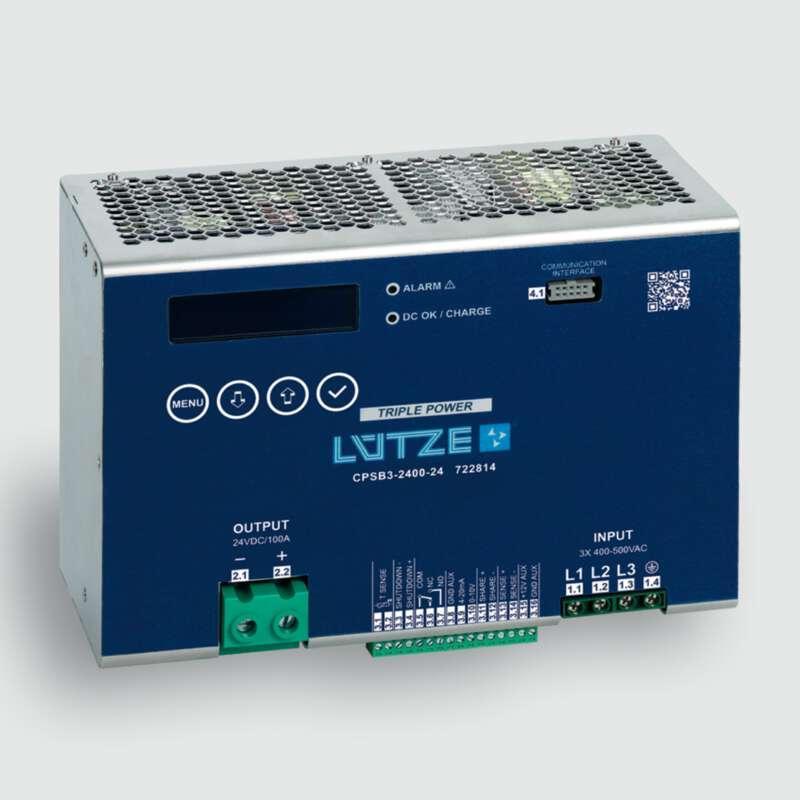

- LUTZE Power Supply, 3-Phase Primary Switch Mode, Series: Compact, 340 to 550 V AC Input, 24 VDC Output, 2400 W Power, 100 A, 47 to 63 Hz Frequency, DIN Rail Mounting, Aluminum Case, 233 mm Width, 111 mm Depth, 169 mm Height
722814 Application
For industrial applications722814 Item Features
- Suitable for industrial applications especially where high inrush power is required, as well as when compact housing or extended reliability are desired
- Short circuit and overload protection
- Adjustable output voltage
- Output alarm relay
- High efficiency
- IP20 protection class
- Parallel operation
- Extremely compact footprint
722814 Standards
cULus E249179|EN 55011/60950/61000-4-2/3/4/5/6/11|IEC 950|Surge immunity level IV|UL 508|VDE 0160SKU #2455564Part Number #722814UNSPSC0UPC
