Part Number # TH3361
SKU # 2455893
Image Disclaimers Message
TH3361

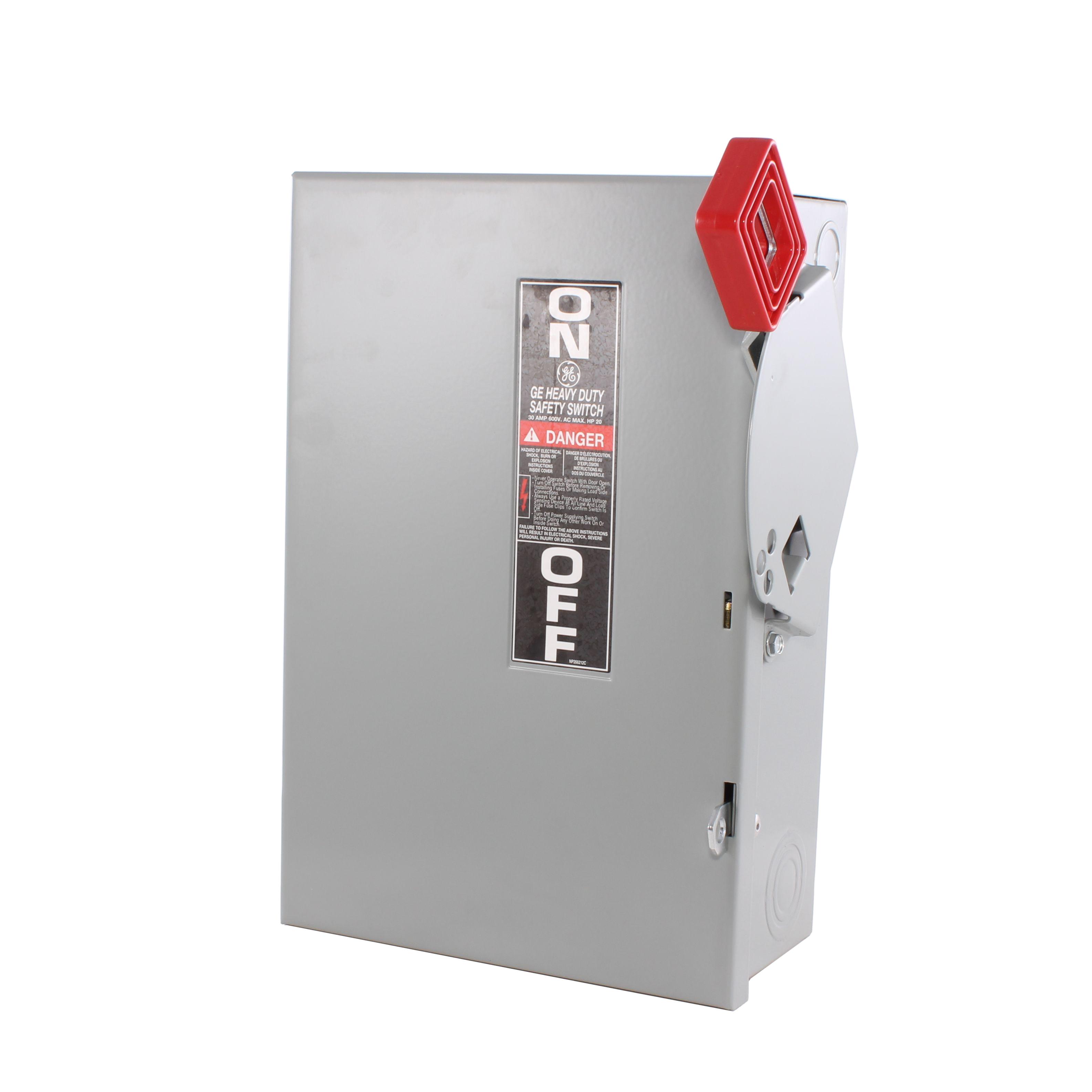

ABB TH3361
Part Number # TH3361
SKU # 2455893
$270.79 / Each
Typical price:$363.00 / Each
ABB TH3361 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | TH3361 |
| SKU #: | 2455893 |
| Actuator Type: | Handle |
| Amperage Rating: | 30 A |
| Dimensions: | 12.6 in H x 8.3 in W x 4 in D |
| Enclosure Type: | NEMA 1 |
| Frequency Rating: | 50/60 Hz |
| Horsepower: | 7-1/2 hp Standard Fuse/20 hp Time Delay |
| Number of Poles: | 3 |
| Number of Wires: | 3 |
| Phase: | 3 |
| Series: | TH Series |
| Short Circuit Current Rating (kA): | 200 kA |
| Temperature Rating (Degrees F): | 60/75 deg C |
| Type: | Fusible Heavy Duty |
| Mounting type: | Surface |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122205 |
| UPC: | 00783164009095 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$270.79 / Each
Typical price:$363.00 / Each
Quantity:
- GE Spec-Setter Safety Switch, Fusible Heavy Duty, Series: TH Series, 600 V AC, 30 A, 7-1/2 hp Standard Fuse/20 hp Time Delay, 3 ph, 50/60 Hz Frequency, 3 Pole, 3 Wires, 200 kA Short Circuit, Handle Actuator, NEMA 1 Enclosure, Surface Mounting, 60/75 deg C, 12.6 in H x 8.3 in W x 4 in D Dimensions
TH3361 Application
Commercial, Industrial, Electrical Distribution and Control ApplicationsTH3361 Item Features
- Donut handle ideal for hook stick operation and accepts 3 padlocks in the off position
- Direct drive, quick-make, quick-break mechanism "snaps" contacts open and closed providing positive on/off indication
- Self-leveling, 3-point mounting system
- Coin-proof, defeatable interlock
- Visible confirmation of plated blade contact positions
- Spring reinforced fuse clips assure reliable contact for cool operation
- With class R fuses or J fuses, 30 to 600 A switches have UL listed short circuit rating of 200000 rms symmetrical A
- Switches rated 800 to 1200 A use class L fuses and have a UL listed short circuit rating of 10000 rms symmetrical A
- UL listed as service entrance equipment when installed in accordance with the national electric code
TH3361 Standards
UL 98|CSA C22.2 No. 4-04|Federal Specification W-S-865C|NEMA KS1 - 2013|Seismic CertifiedSKU #2455893Part Number #TH3361UNSPSC39122205UPC00783164009095
