Part Number # ATS430D32S6
SKU # 2456009
ATS430D32S6
Schneider Electric ATS430D32S6
Part Number # ATS430D32S6
SKU # 2456009
$1045.80 / Each
Schneider Electric ATS430D32S6 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | ATS430D32S6 |
| SKU #: | 2456009 |
| Amperage Rating: | 32 A |
| Coil Voltage: | 110 to 230 V AC |
| Dimensions: | 10.7 in H x 5.1 in W x 6.7 in D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50 to 60 Hz |
| Motor Power: | 7.5, 10, 20, 25 hp |
| Operating Temperature: | -13 to 104 deg F |
| Phase: | 3 ph |
| Series: | ATS430 |
| Connection type: | RJ45 |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121521 |
| UPC: | 03606486948613 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1045.80 / Each
Quantity:
- Schneider Electric, ATS430D32S6, Soft Starter, Series: ATS430, 208 to 600 V AC, 32 A, 50 to 60 Hz Frequency, 7.5, 10, 20, 25 hp Motor, 110 to 230 VAC Coil, 3 ph, RJ45 Connection, IP20 Enclosure, -13 to 104 deg F Operating, 10.7 in H x 5.1 in W x 6.7 in D Dimensions
ATS430D32S6 Application
For Standard industrial machinesATS430D32S6 Item Features
- Improved sustainability (enviromental performance, durability and efficiency)
- Reduce time (design to operation) and overall cost
- Reduced operational expenditure (high durability)
ATS430D32S6 Standards
IP65|IP43|UL 60947-4-2|cULus|UKCA|IEC 61000-4-6|CE|IEC 60664-1|CCC|EN/IEC 60947-4-2|IEC 61000-4-18|RCMSKU #2456009Part Number #ATS430D32S6UNSPSC39121521UPC03606486948613

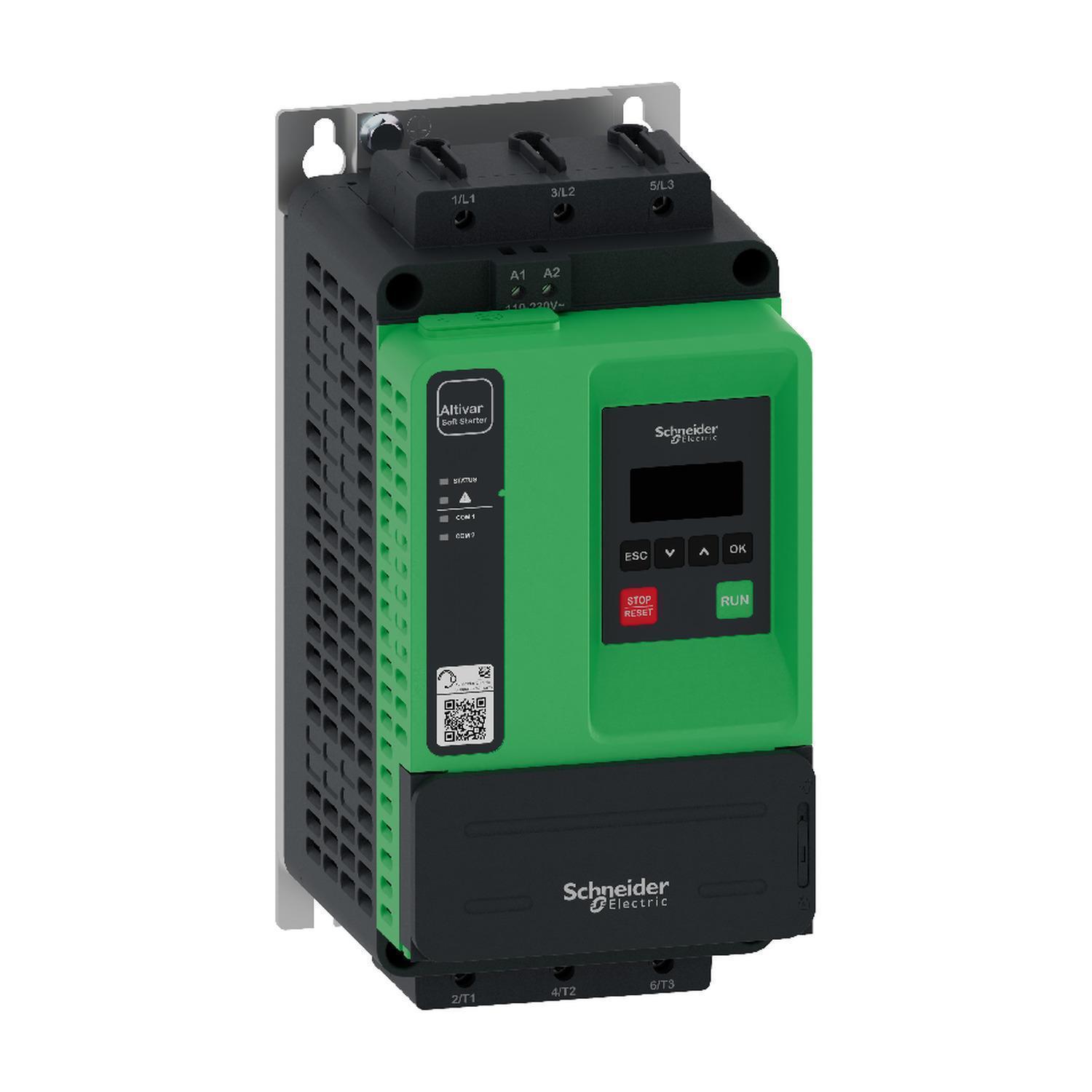

Image provided may only be a representation of final product and may include optional equipment
