Part Number # B3480-DB
SKU # 2456033
Image Disclaimers Message
Brand: LEVITON
B3480-DB

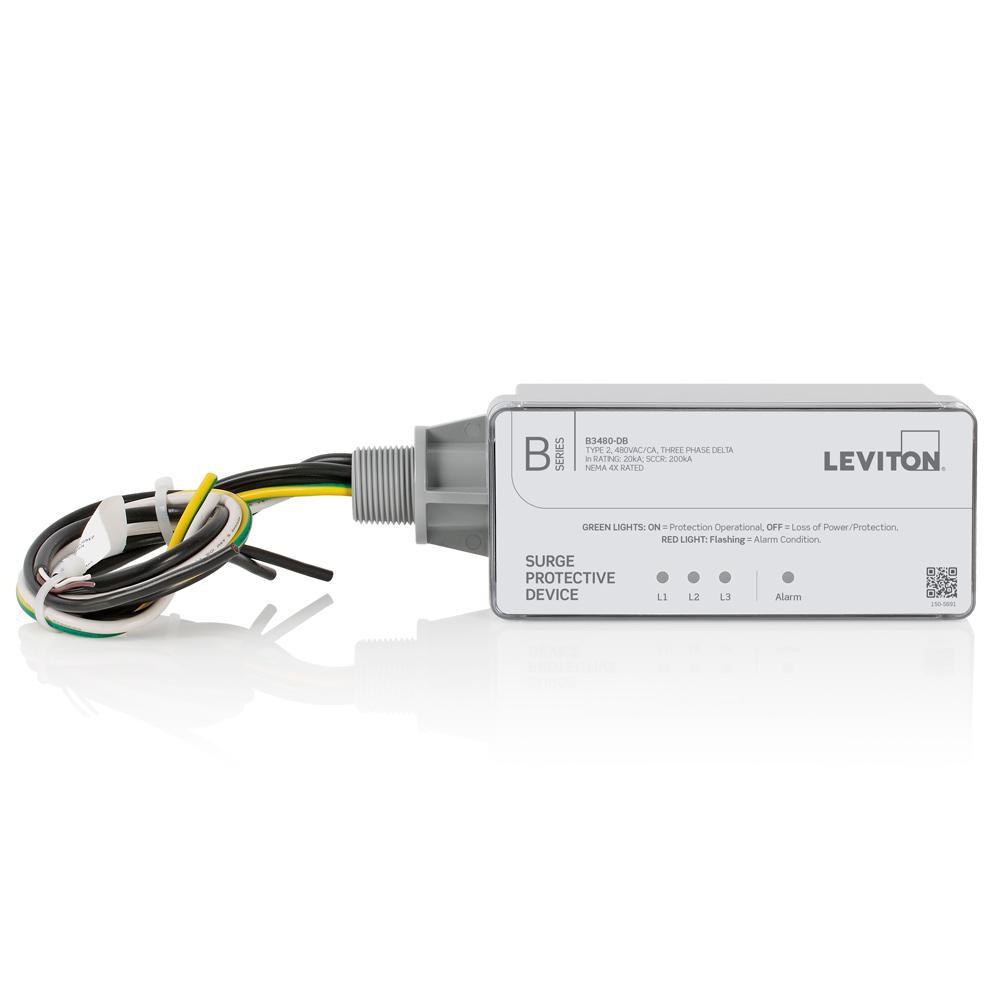

LEVITON B3480-DB
Part Number # B3480-DB
SKU # 2456033
$1109.75 / Each
Typical price:$1502.20 / Each
LEVITON B3480-DB Key Features
| Brand: | LEVITON |
|---|---|
| Part Number # : | B3480-DB |
| SKU #: | 2456033 |
| Dimensions: | 3.06 in H x 7.95 in W x 2.75 in D |
| Electrical Ratings: | 480 V AC |
| Enclosure Type: | NEMA 4X |
| Environmental Conditions: | -40 to 60 deg C Storage Temperature, 0 to 95% Non-Condensing Humidity |
| Frequency Rating: | 50/60 Hz |
| Indicator Type: | LED/Audible Alarm |
| Modes of Protection: | L-G/L-L |
| Peak Surge Current: | 65 kA |
| Phase: | 3 |
| Series: | B Series |
| Short Circuit Current Rating (kA): | 200 kA |
| Type: | Type 2 |
| Wire Size: | 12 AWG |
| Color: | Gray |
| Country of origin: | GR |
| Material: | Polycarbonate |
| Mounting type: | Surface |
| Manufacturer Name: | Leviton |
| UNSPSC: | 39121610 |
| UPC: | 00078477583111 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1109.75 / Each
Typical price:$1502.20 / Each
Quantity:
- Leviton, B3480-DB, Surge Protective Device, Type 2, Series: B Series, 480 V AC Electrical Rating, 50/60 Hz Frequency, 3 ph, 12 AWG Wire, 200 kA Short Circuit, 65 kA Peak Surge Current, Modes of Protection: L-G/L-L, LED/Audible Alarm Indicator, Environmental Conditions: -40 to 60 deg C Storage Temperature, 0 to 95% Non-Condensing Humidity, NEMA 4X Enclosure, Surface Mounting, 3.06 in H x 7.95 in W x 2.75 in D Dimensions, Polycarbonate, Gray
B3480-DB Application
Indoor, Outdoor, Ideal for the branch panel in Commercial and Industrial application and the main panel in light commercial applications, the B Series is versatile in its usageB3480-DB Item Features
- The maximum amount of current the device is capable of diverting to ground during a single surge event without performance degradation of more than 10%, Higher values are better
- The amount of current the device can divert to ground 15 times under specific test conditions and maintain performance levels, Higher values are better
- The maximum voltage a surge protector will let through to connected devices, Lower values are better
- The maximum current a device or system can safely withstand for a specified time or until a specified fuse or circuit breaker opens and clears the circuit
- Maximum line voltage (or V rms) that may be applied to the SPD without damaging the MOV, A lower MCOV rating allows for a lower VPR, but decreases the life of an MOV
- A mode is a path that has an SPD component between two electrical points, More modes is better, 7-Mode example: L1-N, L2-N, L3-N, L1-G, L2-G, L3-G, N-G
B3480-DB Standards
ANSI/IEEE C-62.41.1-2002/C-62.41.2-2002/C-62.45-2002 Specified|CSA C22.2 No. 269.1-17, 2017-02 Certified|RoHS B Series Compliant|UL 1449 5th Edition: 2021 Listed|cULus Listed|PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harmSKU #2456033Part Number #B3480-DBUNSPSC39121610UPC00078477583111
