Part Number # DVSW0003E
SKU # 2456203
Image Disclaimers Message
MTE CORPORATION DVSW0003E Key Features
| Brand: | MTE CORPORATION |
|---|---|
| Part Number # : | DVSW0003E |
| SKU #: | 2456203 |
| Amperage Rating: | 3 A |
| Enclosure Type: | NEMA 3R |
| Horsepower: | 1/2 hp, 3/4 hp, 1/2 to 1-1/2 hp, 1/2 to 2 hp |
| Phase: | 3 |
| Series: | dV Sentry |
| Country of origin: | MX |
| Depth: | 12 in |
| Height: | 15-1/2 in |
| Mounting type: | Floor |
| Width: | 10.9 in |
| Manufacturer Name: | MTE Corporation |
| UNSPSC: | 0 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

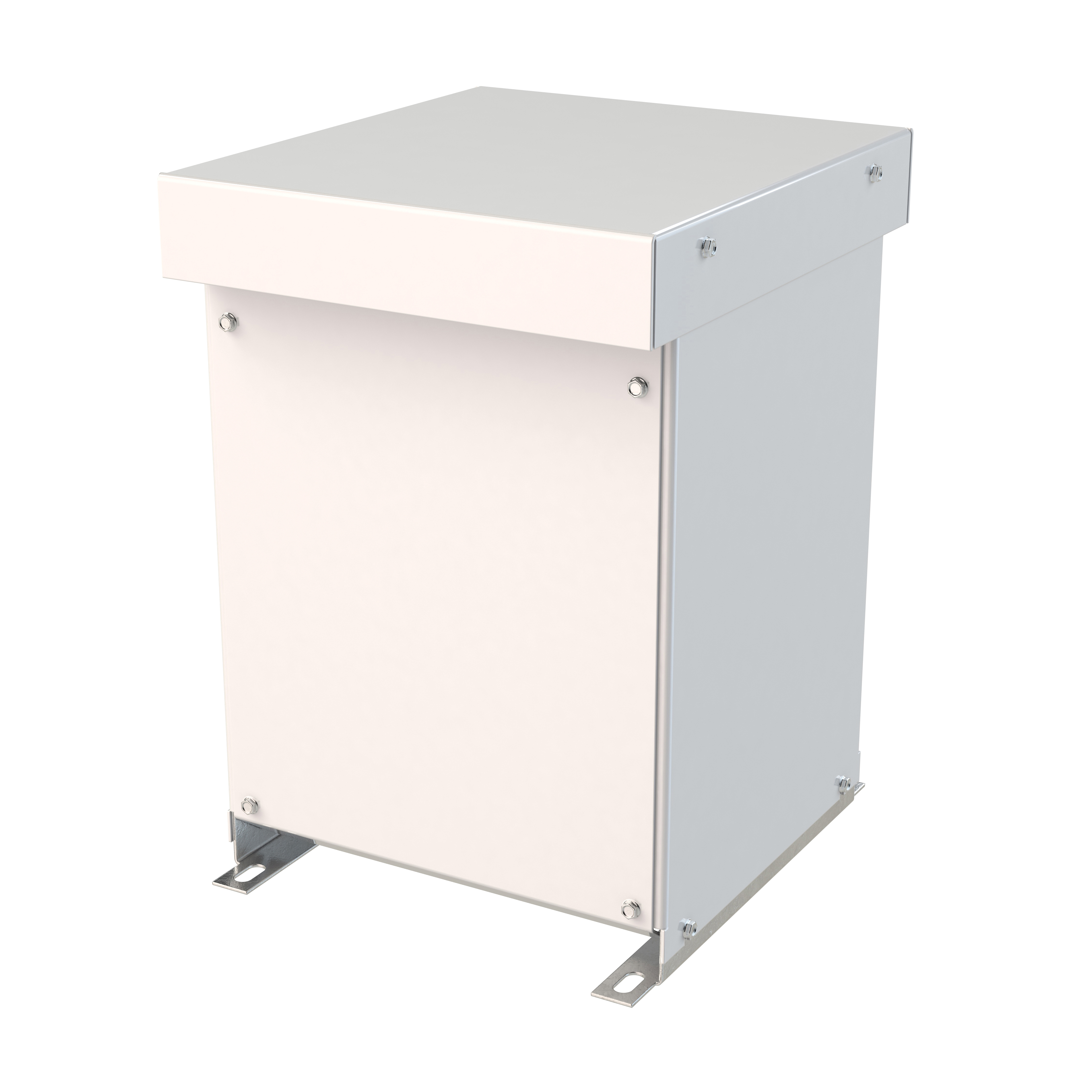

- MTE DV/DT Filter, Series: dV Sentry, 208 to 600 V AC, 3 A, 1/2 hp, 3/4 hp, 1/2 to 1-1/2 hp, 1/2 to 2 hp, 3 ph, 15-1/2 in Height, 10.9 in Width, 12 in Depth, NEMA 3R Enclosure, Floor Mounting
DVSW0003E Application
Motor Protection, Variable Frequency Drives (VFDs), Pumps, Fans, Compressors, Chillers, Artificial Lifting, Air Handlers, MCCs, Water/Wastewater, HVAC, Oil and Gas, Data Centers, Marine, Irrigation, Food and Beverage, Agriculture and IndustryDVSW0003E Includes
(1) Reactor Assembly and Resistors in a NEMA 3R CabinetDVSW0003E Item Features
- Reduces common mode by over 50%
- Provides peak voltage protection
- Reduces rise time
- Low watts loss reduces heating in systems
- Small footprint, with unique flat design, allows filter to be easily integrated
- Strong, robust design
- Runs quiet at <65 dB, similar to a conversation
- Easy to install terminations are key for simple installation
- 1/2 hp at 208 VAC, 3/4 hp at 240 VAC, 1/2 to 1-1/2 hp at 480 VAC, 1/2 to 2 hp at 600 VAC
- https://youtu.be/42QVneTT-Gg
DVSW0003E Standards
RoHS Compliant|REACH Compliant|UL 508|CSA 22.2 #14|EN 50178|EN 61558-2-20|EN 60831-1 and 2|Seismic Certification ICC-ES A156DVSW0003E Warranty
3 YearsSKU #2456203Part Number #DVSW0003EUNSPSC0UPC
