Part Number # 376LR-J5230-S
SKU # 2456354
Image Disclaimers Message
Brand: Thomas & Betts
376LR-J5230-S
Thomas & Betts 376LR-J5230-S
Part Number # 376LR-J5230-S
SKU # 2456354
$544.64 / Each
Typical price:$729.82 / Each
Thomas & Betts 376LR-J5230-S Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 376LR-J5230-S |
| SKU #: | 2456354 |
| Amperage Rating: | 200 A |
| Conductor Size: | 1 AWG Stranded/Compressed, 1/0 AWG Solid/Compact, 50 sq-mm Compact |
| Connector Type: | Push-In |
| Series: | 376LR |
| Color: | Black |
| Country of origin: | US |
| Material: | EPDM Rubber |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121421 |
| UPC: | 00783786304561 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$544.64 / Each
Typical price:$729.82 / Each
Quantity:
Thomas & Betts 376LR-J5230-S
Brand: Thomas & Betts
Part Number: 376LR-J5230-S
Additional Description: TB -376LR-J5230-S (N) 35KV 200A LB ELBOW W/TP J5230 S NON-CANCELABLE, NON-RETURNABLE

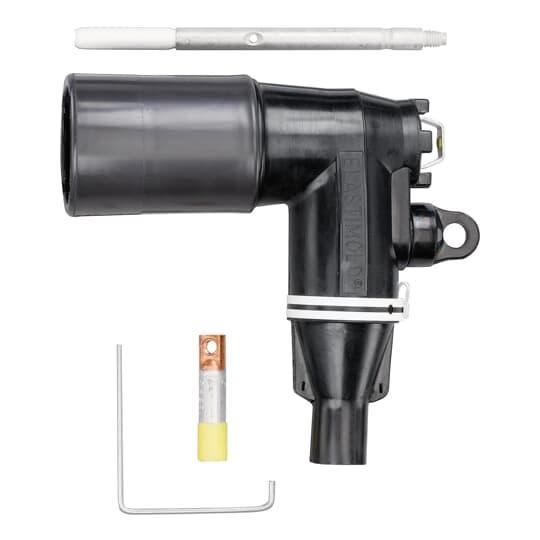

Catalog Description: 35kV 200 Amp, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.980 inch to 1.180 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded #1/Solid 1/0 /mmSquared 42.41. 200ECS Jacket Seal Included.
376LR-J5230-S Includes
(1) 376BLR-W Elbow Connector Housing, (1) 02500XXX Compression Lug, (1) 375LRF Probe, (1) 271-94 Probe Wrench, (1) 82-08 Lubricant Tube, Cold-Shrinkable Jacket Seal, (1) CC-0024 Crimp Chart, (1) Peroxide VD Cap and (1) IS-0359 Installation Instruction Sheet376LR-J5230-S Item Features
- Fully shielded, fully submersible molded rubber housing
- 100% peroxide-cured construction includes insulation and conductive EPDM materials
- Provision for hot stick operation
- Provision for ground wire connection
- Non-corrosive capacitive test point
376LR-J5230-S Standards
ANSI Specified|IEEE 386SKU #2456354Part Number #376LR-J5230-SUNSPSC39121421UPC00783786304561
