1863360000
Weidmuller 1863360000
Part Number # 1863360000
SKU # 2456464
$167.80 / 50Each
Typical price:$193.15 / Each
Weidmuller 1863360000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1863360000 |
| SKU #: | 2456464 |
| Dimensions: | 12.4 mm H x 44.58 mm W x 7.1 mm D |
| Series: | BC/SC 3.81 Series |
| UNSPSC: | 31163101 |
| UPC: | 04032248428502 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$167.80 / 50Each
Typical price:$193.15 / Each
Quantity:
- Weidmuller OMNIMATE Signal PCB Plug-In Connector, Board Connection, Series: BC/SC 3.81 Series, 9 Positions, 1 Row, 3.81 mm Pitch/Row Spacing, PCB Mounting, 300/320 V, Male Header Connector, THT/THR Solder Termination, Copper Alloy Contact, LCP GF Housing Material, -50 to 120 deg C, Black, 12.4 mm H x 44.58 mm W x 7.1 mm D Dimensions
1863360000 Item Features
- High temperature-resistant pin header (SC-SMT 180LF) in 3.81 mm pitch (0.15 in)
- Plugging direction is perpendicular to PCB (standing)
- Pin length of 3.2 mm
- Weidmuller 3.81 mm pitch (0.15 in) plug-in connectors are compatible with the layouts of standard connectors and offer space for labelling
- 320 V IEC, 300 V UL
- https://youtu.be/Ifq_mdNjF4g
1863360000 Standards
RoHS Compliant|IEC 60664-1, IEC 61984|cULus File No. E60693 Recognized|UL 1059|CSA File No. 200039-1121690|UL 94 V-0 Flammability Rating|EAC CertifiedSKU #2456464Part Number #1863360000UNSPSC31163101UPC04032248428502

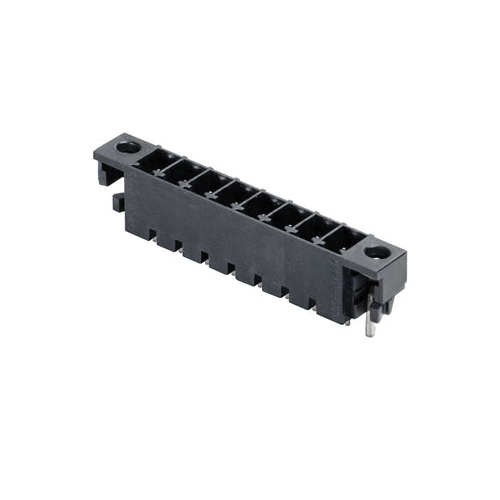

Image provided may only be a representation of final product and may include optional equipment
