Part Number # 723501
SKU # 2456533
723501
LUTZE 723501
Part Number # 723501
SKU # 2456533
$155.60 / Each
Typical price:$203.70 / Each
LUTZE 723501 Key Features
| Brand: | LUTZE |
|---|---|
| Part Number # : | 723501 |
| SKU #: | 2456533 |
| Amperage Rating: | 5 A |
| Case Material: | Aluminum |
| Frequency Rating: | 47 to 63 Hz |
| Input Voltage: | 120/240 V |
| Series: | Compact |
| Type: | Primary Switched |
| Country of origin: | TW |
| Depth: | 126 mm |
| Height: | 103 mm |
| Mounting type: | DIN Rail |
| Output voltage: | 24 V DC |
| Width: | 35 mm |
| Manufacturer Name: | LUTZE Inc |
| UNSPSC: | 0 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$155.60 / Each
Typical price:$203.70 / Each
Quantity:
LUTZE 723501
Brand: LUTZE
Part Number: 723501
Additional Description: LUTZ-723501 CPS2B1-120-24 POWER SUPPLY - 5A, 24V, 120W
723501 Application
For industrial applications723501 Item Features
- -40 to 70 deg C operating/-40 to 85 deg C storage
- 1.4 A at 120 VAC/0.7 at 240 VAC rated current
- 20 to 90% RH, non-condensing relative humidity
- 4AT or MCB 4A C-curve external fuse
- 90% efficiency
- Less than 1% load regulation
- Less than 32 A / 0.49 A2s inrush peak current
- Less than 60 mV ripple and noise
- Greater than 20 ms at 120 VAC/ Greater than 230 ms at 240 VAC hold up time
- Greater than 33 VDC over voltage protection
- Greater than 500,000 hr MTBF
- Air convection, 50 mm distance top/bottom, 20 mm side cooling
- Metal housing material
- Parallel operation
- Short circuit: hiccup mode
- Suitable for industrial applications especially where high inrush power is required, as well as when compact housing or extended reliability are desired
- T3, 15 A (non-replaceable) internal fuse
723501 Standards
cULus E249179|EN 60950/50178/55011/55022/60529|IEC 61000-4-2/3/4/5/11|IEC 60068-2-6|IEC 60068-2-27SKU #2456533Part Number #723501UNSPSC0UPC

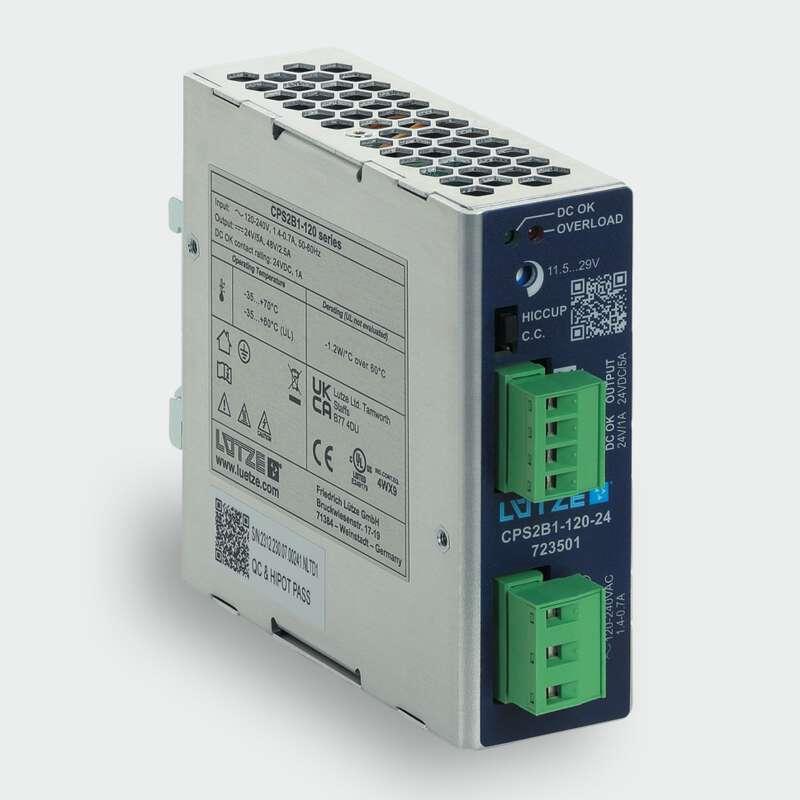

Image provided may only be a representation of final product and may include optional equipment
