Part Number # METSEPM2130
SKU # 2456560
METSEPM2130
Schneider Electric METSEPM2130
Part Number # METSEPM2130
SKU # 2456560
$753.52 / Each
Typical price:$866.55 / Each
Schneider Electric METSEPM2130 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | METSEPM2130 |
| SKU #: | 2456560 |
| Class: | Class 1/Class 0.5S/Class 5 |
| Dimensions: | 3.78 in H x 3.78 in W x 3.00 in D |
| Enclosure Type: | IP30/IP54 |
| Series: | EasyLogic |
| Country of origin: | IN |
| Material: | Polycarbonate |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 41113708 |
| UPC: | 00060648080015 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$753.52 / Each
Typical price:$866.55 / Each
Quantity:
Schneider Electric METSEPM2130
Brand: Schneider Electric
Part Number: METSEPM2130
Additional Description: SQD -METSEPM2130 PM2130 POWER METER CL 0.5S RS485
Catalog Description: EasyLogic PM2130, Power & Energy meter, up to the 31st harmonic, LED display, RS485, class 0.5S
METSEPM2130 Application
For this meter is either 1A or 5A input, For WAGES monitoring, For 23 different types of alarms stored in 40 registersMETSEPM2130 Item Features
- EasyLogic PM2000 series energy and power meters provide all the measurement capabilities required to monitor an electrical installation in a single 96x96 mm unit
- LED and LCD display options
- Ctive energy Class 0.5S as per IEC 62053-22, Active energy Class 1 as per IEC 62053-21
- Reactive energy Class 1 as per IEC 62053-24 standard
- Active load timers monitor meter operation and Run hours, advising maintenance requirements
- Field configurable password for securing setup information to prevent tampering of integrated values
- Cyber security option to disable RS-485 port through front panel keys, protecting against unauthorized access, which is helpful during installation and trouble shooting of communication network
- LED display: Auto scaling, 9+3 digits for energy, 4 digits for other parameters
- LCD display: 6 digits with auto scaling for energy and other parameters 12 A.M. snap shot summary page stored in the meter for 24 hours
- 2 configurable rate counters display values in customer specified units based on energy measured
- Energy preset feature for retrofit application
- Optional I/O modules available: 2 Digital Inputs& 2 Outputs or 2 Analogue Inputs
- 2 Outputs for comprehensive WAGES monitoring
- Mounts using two clips, no tools required
- Compact size with maximum of 54 mm depth
- Connectable up to 480 V ac L-L +/- 10% without voltage transformers for category III, double insulated installations
- Test LED on front panel for test and calibration on site or in laboratory
- Heart-beat LED indicates normal functioning and communication status if connected to RS-485 network
- Total harmonic distortion up to the 31st harmonic power quality analysis
METSEPM2130 Standards
CE|IEC 61010-1|CULus|UL 61010-1|CULus conforming to CSA C22.2 No 61010-1|RCM|EAC|C-TickSKU #2456560Part Number #METSEPM2130UNSPSC41113708UPC00060648080015

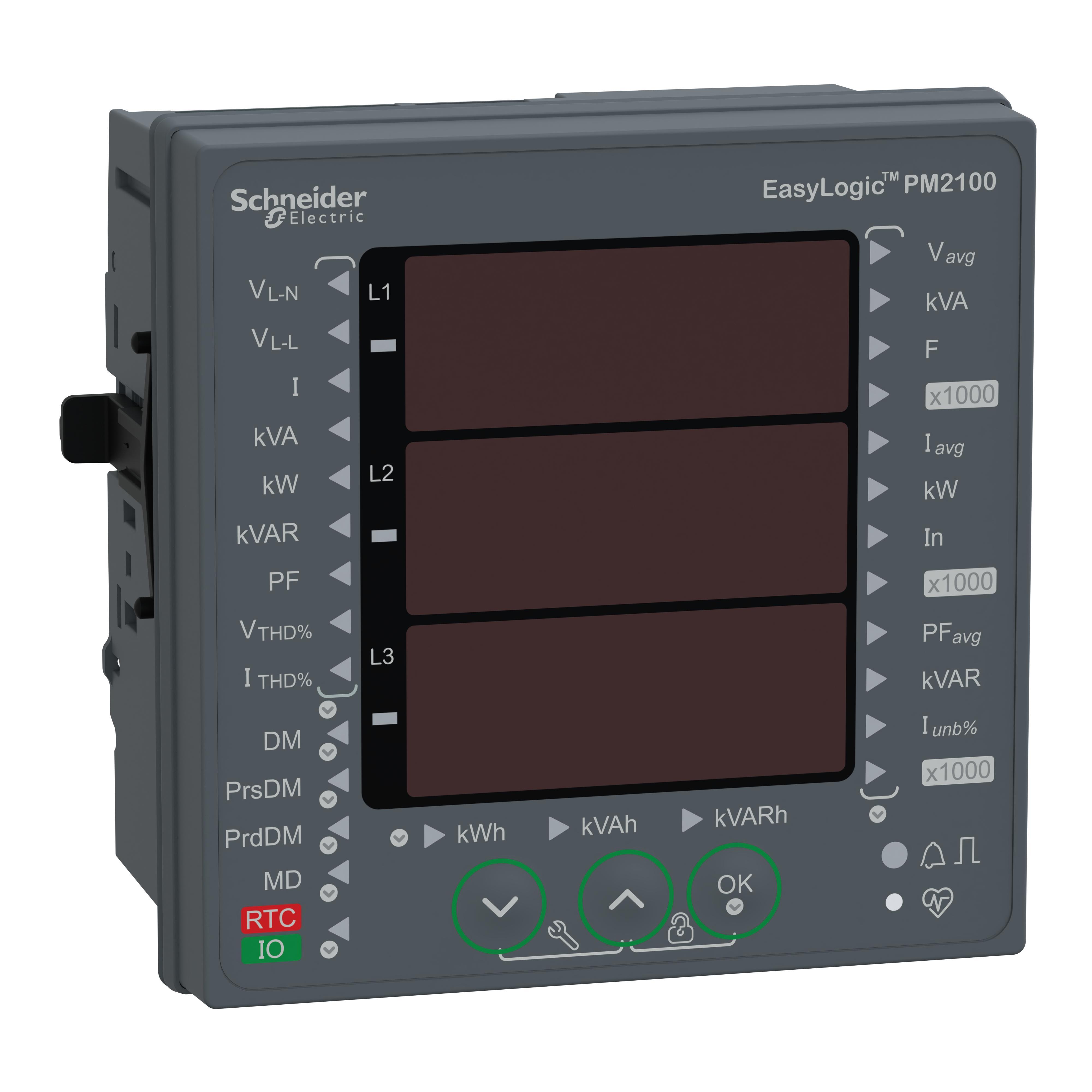

Image provided may only be a representation of final product and may include optional equipment
