Part Number # K675S1
SKU # 2456774

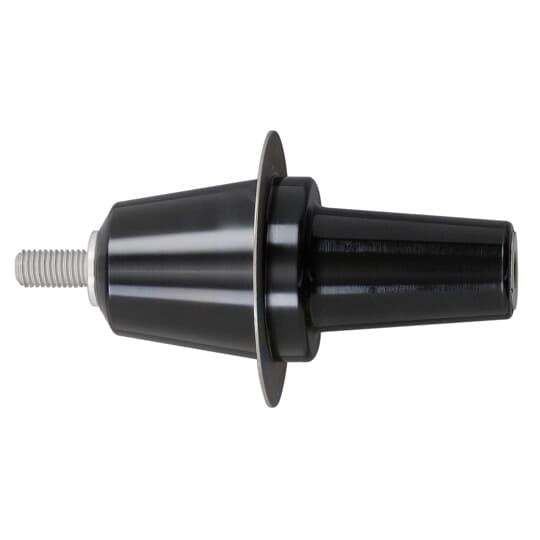

Image provided may only be a representation of
final product and may include optional equipment
K675S1
Thomas & Betts K675S1
Part Number # K675S1
SKU # 2456774
Thomas & Betts K675S1 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | K675S1 |
| SKU #: | 2456774 |
| Amperage Rating: | 900 A |
| Dimensions: | 4-1/2 in Dia x 8-1/2 in L |
| Specifications: | -40 to 65 deg C |
| Type: | Short Shank |
| Country of origin: | US |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 26121630 |
| UPC: | 00783786620432 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts K675S1
Brand: Thomas & Betts
Part Number: K675S1
Additional Description: TB -K675S1 (N) 900 AMP BUSHING 25KV NON-CANCELABLE, NON-RETURNABLE
Catalog Description: 15/25kV, 900 Amp, Deadbreak, Short Shank Bushing for In-Oil and SF6 Applications (Pad-Mounted or Vault-Type or Submersible Transformers or Switchgear). One Factory installed 5/8-11 UNC-2A Stud included, other Stud must be Purchased Separately. Overall Length 8.12 inch, Diameter 4.50 inch. Molded Epoxy with Stainless Steel Flange.
K675S1 Application
For in-oil and SF6 applicationsK675S1 Includes
5/8-11 UNC-2A StudK675S1 Item Features
- Conductive shield made of molded conductive EPDM makes positive ground contact with EPDM flange of bushing insert
- Stainless steel flange resists corrosion and can be externally clamped or welded to apparatus
- Epoxy structure with exceptionally high physical, electrical and chemical resistance properties
- Interface meets ANSI/IEEE 386 dimensional criteria for proper fit of mating parts
- Without stud
K675S1 Standards
ANSI Specified|IEEE 386SKU #2456774Part Number #K675S1UNSPSC26121630UPC00783786620432
