Part Number # MAPW0128D
SKU # 2456795
Image Disclaimers Message
MAPW0128D
MTE CORPORATION MAPW0128D
Part Number # MAPW0128D
SKU # 2456795
$9238.00 / Each
MTE CORPORATION MAPW0128D Key Features
| Brand: | MTE CORPORATION |
|---|---|
| Part Number # : | MAPW0128D |
| SKU #: | 2456795 |
| Amperage Rating: | 128 A |
| Enclosure Type: | NEMA 3R |
| Horsepower: | 100 hp |
| Impedance: | 6 % |
| Phase: | 3 |
| Series: | Matrix AP |
| Country of origin: | MX |
| Depth: | 30 in |
| Height: | 51.3 in |
| Mounting type: | Floor |
| Width: | 27.7 in |
| Manufacturer Name: | MTE Corporation |
| UNSPSC: | 0 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$9238.00 / Each
Quantity:

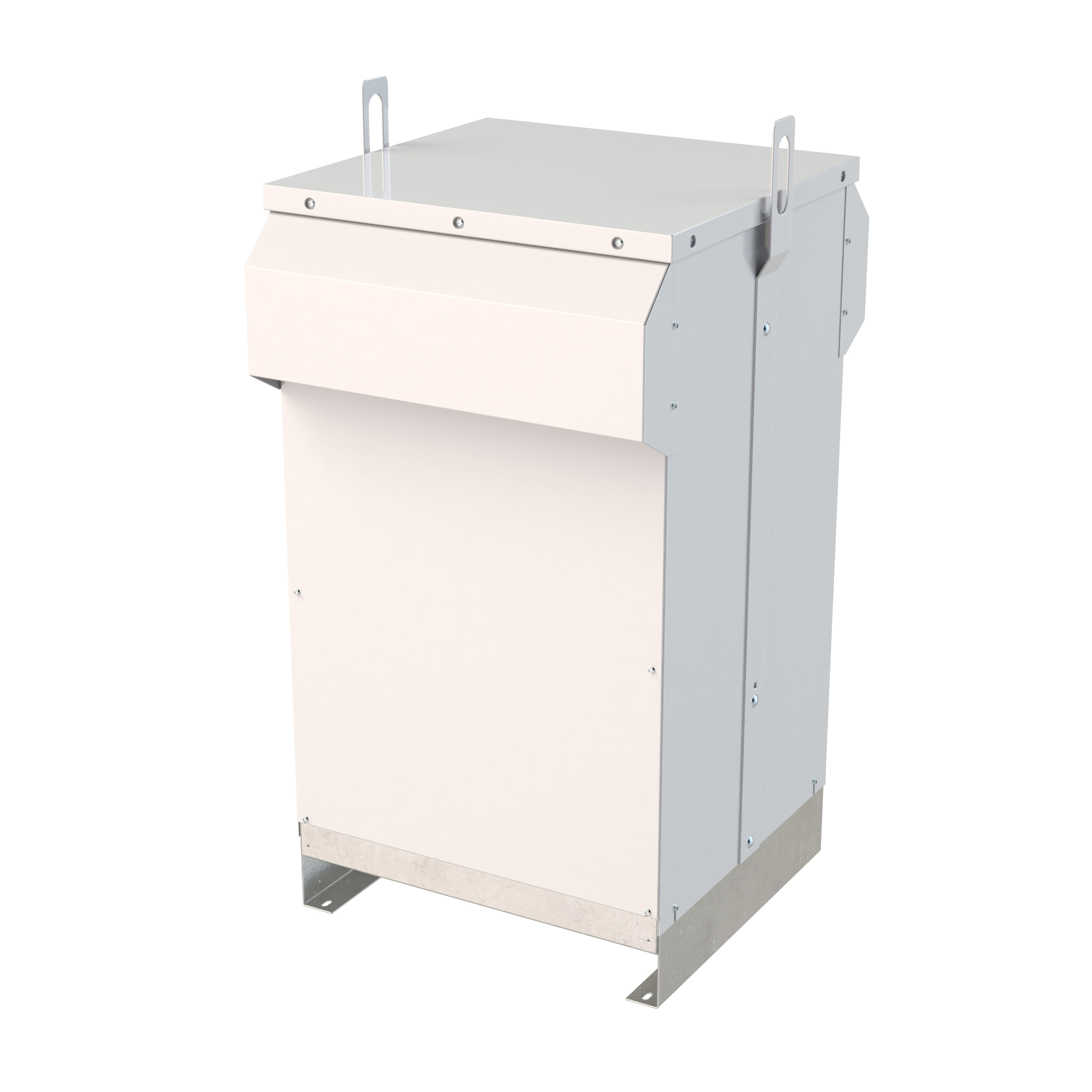

- MTE Harmonic Filter, Series: Matrix AP, 480 V AC, 128 A, 100 hp, 3 ph, 6 % Impedance, 51.3 in Height, 27.7 in Width, 30 in Depth, NEMA 3R Enclosure, Floor Mounting
MAPW0128D Application
Harmonic Mitigation, Variable Frequency Drives (VFDs), Pumps, Fans, Compressors, Chillers, Artificial Lifting, Air Handlers, Generators, MCCs, Irrigation Systems, Water/Wastewater, HVAC, Oil and Gas, Data Centers, Marine, Irrigation, Food and Beverage, Agriculture and IndustryMAPW0128D Includes
(1) Reactor and Capacitor Assemblies in a NEMA 3R CabinetMAPW0128D Item Features
- Allows adherence to IEEE-519 standards
- Performance guarantee of 5% THID at 100% load and less than 8% THID at 30% load
- Compact, modular design provides improved system footprint and heat dissipation options
- Low kVar for generator compatibility
- Extends the service life of electrical equipment
- Reduces downtime
- Adapts to varying power loads
- Adaptive passive technology for superior harmonic mitigation at varying loads
- Best performance in the industry
- https://youtu.be/Yysrytzh0Hg
MAPW0128D Standards
RoHS Compliant|REACH Compliant|IEEE-519 Compliant|cULus Listed|UL 508|CSA 22.2 #14|EN 50178|EN 61558-2-20|EN 60831-1 and 2|CE CertifiedMAPW0128D Warranty
3 YearsSKU #2456795Part Number #MAPW0128DUNSPSC0UPC
