Part Number # 55808704
SKU # 2456856
Southwire 55808704 Key Features
| Brand: | Southwire |
|---|---|
| Part Number # : | 55808704 |
| SKU #: | 2456856 |
| Amperage Rating: | 25 A |
| Conductor Size: | 12 AWG |
| Conductor Type: | Annealed Bare Stranded Copper |
| Jacket Color: | Black |
| Jacket Material: | CPE |
| Number of Conductors: | 3 |
| Outside Diameter: | 0.435 in |
| Strands: | 65 |
| Temperature Rating (Degrees F): | -40 to 90 deg C |
| Type: | Type SJOOW Flexible |
| Country of origin: | US |
| Insulation material: | EPDM |
| Length: | 2500 ft |
| Manufacturer Name: | Southwire Company |
| UNSPSC: | 26121636 |
| UPC: | 00003288687058 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Southwire 55808704
Brand: Southwire
Part Number: 55808704
Royal® Cord, Type SJOOW Flexible, Reel Packaging, 300 VAC, 25 A, 3 Conductors, Annealed Bare Stranded Copper Conductor, 12 AWG Conductor, 0.435 in OD, 2500 ft Length, 65 Strands, EPDM Insulation, CPE Jacket, Black Jacket, -40 to 90 deg C
Additional Description: SOTH-55808704(M) FLEXCORD 12/3 SJOOW 90C Bk 2500R
Catalog Description: 12-65 CU 3/C BLACK/WHITE/GREEN SJOOW BLACK 90C 300V PAPER 2500 FT
55808704 Application
Indoor, Outdoor, Portable Tools, Portable Appliances, Equipment, Small Motors and Associated Machinery55808704 Item Features
- Cable is rated -40 deg C to 105 deg C, water, oil, and weather resistant
55808704 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 62|CSA 22.2 No. 49|OSHA Compliant|MSHA P07-KA070018-1MSHA Flame Test|Federal Specification J-C-580B|NEC Article 400SKU #2456856Part Number #55808704UNSPSC26121636UPC00003288687058

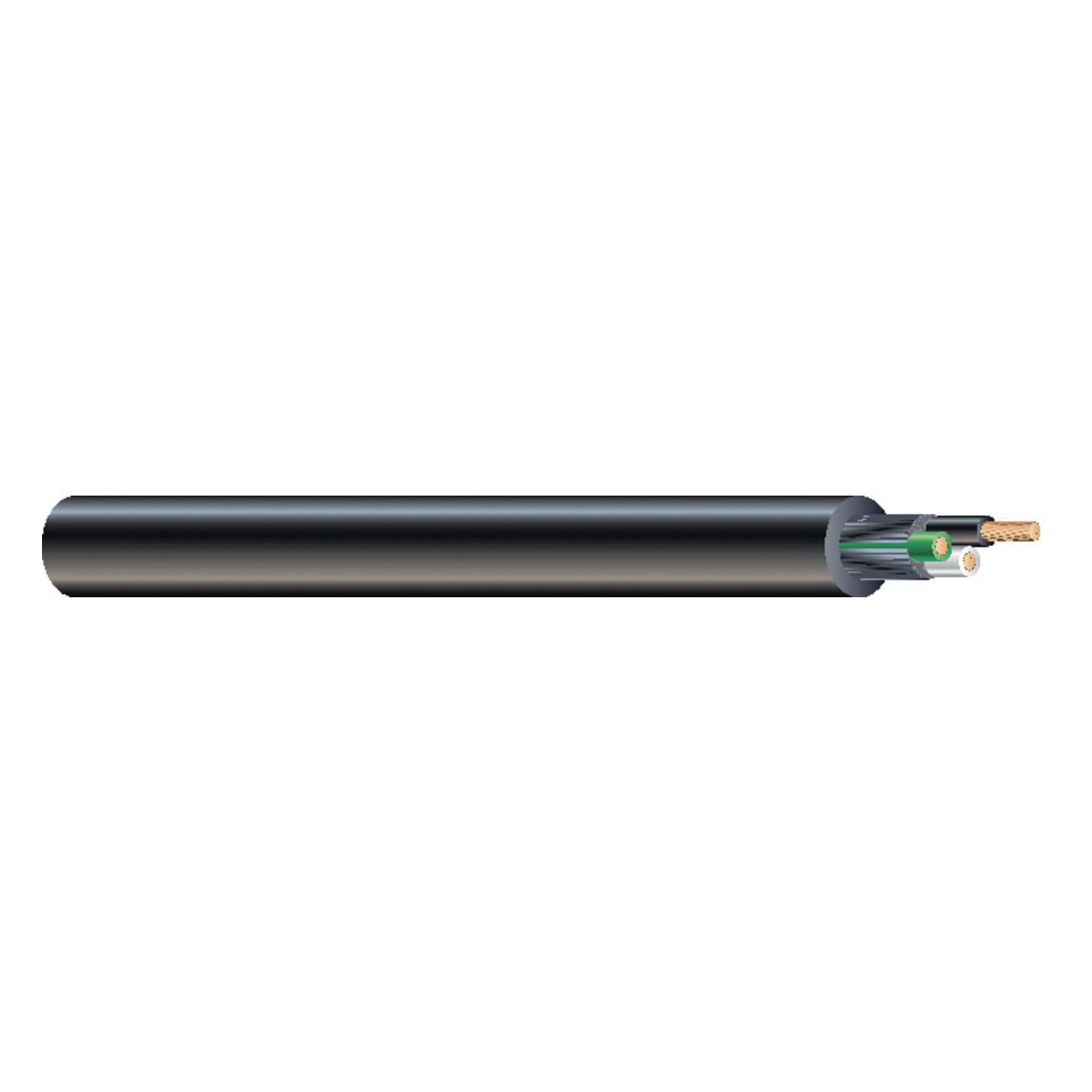

Image provided may only be a representation of final product and may include optional equipment
