Part Number # 113091
SKU # 2456995
Image Disclaimers Message
LUTZE 113091 Key Features
| Brand: | LUTZE |
|---|---|
| Part Number # : | 113091 |
| SKU #: | 2456995 |
| Conductor Size: | 18 AWG |
| Conductor Type: | Stranded Bare Copper |
| Jacket Color: | Gray |
| Jacket Material: | PUR |
| Number of Conductors: | 12 |
| Outside Diameter: | 0.476 in |
| Resistance: | ≥100 Mohm |
| Series: | 3100/4100 |
| Strands: | Super Fine |
| Temperature Rating (Degrees F): | -25 to 90 deg C Moving, -40 to 90 deg C Fixed |
| Type: | Shielded |
| Country of origin: | DE |
| Insulation material: | Special TPE |
| Manufacturer Name: | LUTZE Inc |
| UNSPSC: | 0 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

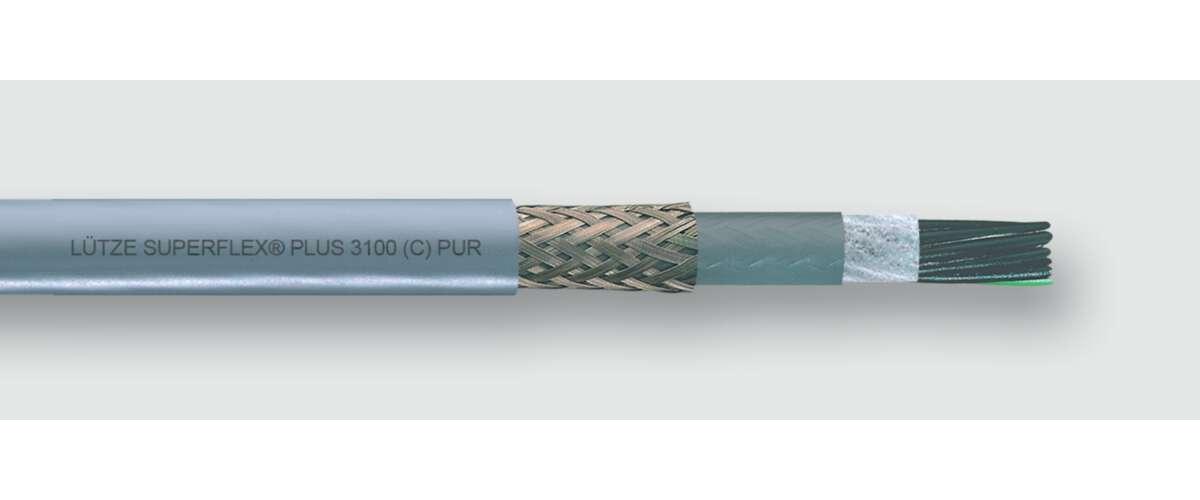

- SUPERFLEX, 113091, Control Cable, Shielded, Series: 3100/4100, 300 V, 12 Conductors, Stranded Bare Copper Conductor, 18 AWG Conductor, 0.476 in OD, Super Fine Strands, ≥100 Mohm Resistance, Special TPE Insulation, PUR Jacket, Gray Jacket, -25 to 90 deg C Moving, -40 to 90 deg C Fixed
113091 Application
For Machine and device construction, transport and conveyor technology, heating and climate technology, In areas with high concentrations of people or material assets, where corrosive gases need to be avoided in the event of fire, As a monitoring, measurement and control cable for industrial applications, Especially for harsh environments, For installation in energy chains with constant linear movement113091 Item Features
- Extremely small cable ODs due to special TPE High Glide insulation
- Reduced friction
- Highest level of resistance against cooling fluids, greases and oils
- Hydrolysis, microbe, and rot resistant
- Dry and wet conditions
- Non-wicking fillers, Talc and silicone free
- Compatible with all major drag chains brands
113091 Standards
AWM Style 21209|UL VW-1|DIN EN 60754-1|DIN EN 60332-1-2|IEC 60332-1|FT1|CE|RoHS|REACH|TSCA|cURus|NFPA 79SKU #2456995Part Number #113091UNSPSC0UPC
