Part Number # 2203-6640
SKU # 2457042
2203-6640
Wago 2203-6640
Part Number # 2203-6640
SKU # 2457042
$479.00 / 50Each
Typical price:$519.00 / Each
Wago 2203-6640 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2203-6640 |
| SKU #: | 2457042 |
| Amperage Rating: | 22 A |
| Dimensions: | 4.319 in H x 0.205 in W x 1.831 in D |
| Number of Poles: | 3 |
| Temperature Rating (Degrees F): | -60 to 105 deg C |
| Type: | Multi-Level |
| Wire Size: | 12 AWG Solid Conductor, 12 AWG Fine-Stranded Conductor |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04066966165364 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$479.00 / 50Each
Typical price:$519.00 / Each
Quantity:
Wago 2203-6640
Brand: Wago
Part Number: 2203-6640
Additional Description: WAGO-2203-6640 MULTI-LEVEL INSTALLATION TERMINAL BLOCK 60490545

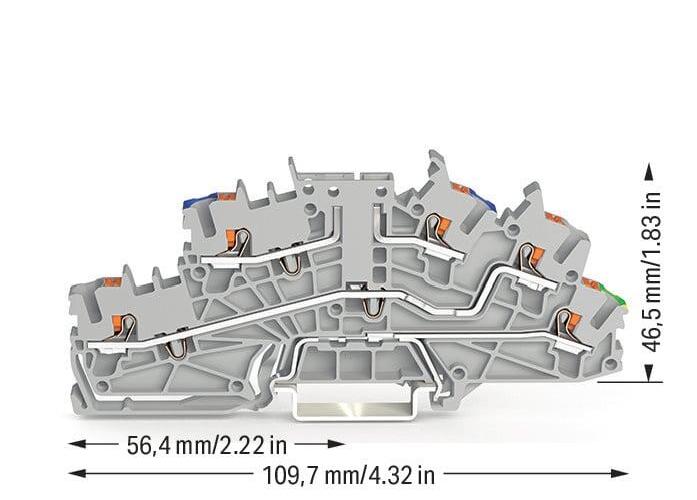

Catalog Description: Multilevel installation terminal block; with push-button; 2.5 mm²; Carrier terminal block without knife; N/L/PE; green-yellow lower deck; Push-in CAGE CLAMP®; 2,50 mm²; gray
2203-6640 Standards
IEC/EN 60947-7-1|RoHS CompliantSKU #2457042Part Number #2203-6640UNSPSC39121421UPC04066966165364
Image provided may only be a representation of final product and may include optional equipment
