1548140000
Weidmuller 1548140000
Part Number # 1548140000
SKU # 2457089
$269.66 / 50Each
Typical price:$299.55 / Each
Weidmuller 1548140000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1548140000 |
| SKU #: | 2457089 |
| Amperage Rating: | 24 A |
| Dimensions: | 91 mm H x 5.1 mm W x 50.5 mm D |
| Series: | A Series |
| Temperature Rating (Degrees F): | -60 to 130 deg C |
| Terminal Type: | Feed-Through |
| Type: | 2-Tier Modular |
| Wire Size: | 28 to 12 AWG |
| Connection type: | Push-In |
| Country of origin: | RO |
| Material: | Wemid |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04050118353853 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$269.66 / 50Each
Typical price:$299.55 / Each
Quantity:

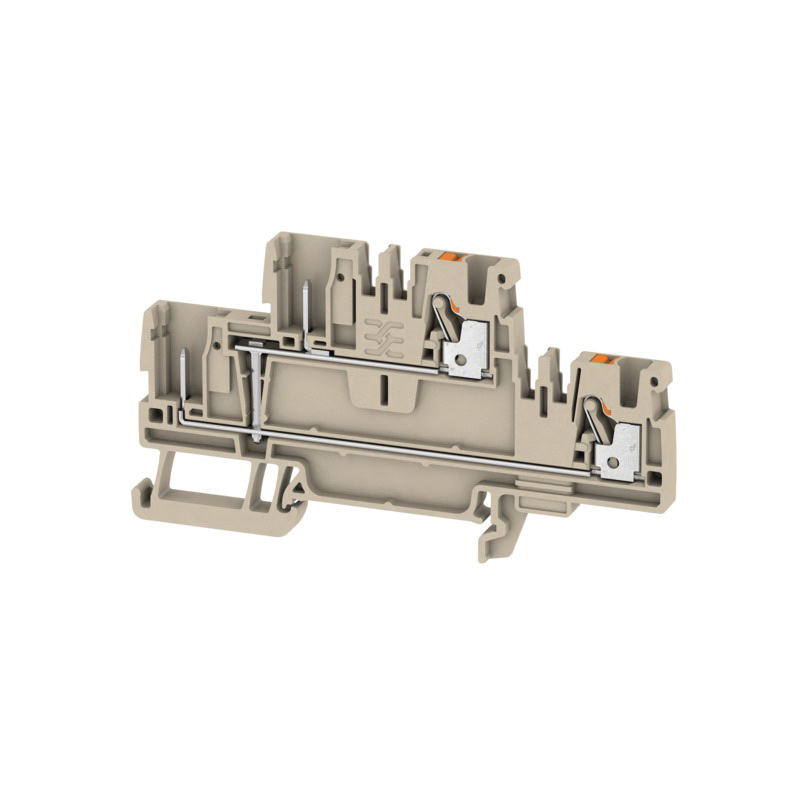

- Klippon Pluggable Terminal Block, 2-Tier Modular, Series: A Series, 800 V, 24 A, 28 to 12 AWG Wire, 10 mm Wire Strip Length, Feed-Through Terminal, DIN Rail Mounting, Push-In Connection, -60 to 130 deg C, Wemid, Dark Beige, 91 mm H x 5.1 mm W x 50.5 mm D Dimensions
1548140000 Item Features
- Innovative PUSH IN technology reduces the amount of time you spend on wiring to a minimum
- Direct insertion guarantees high conductor pull-out forces and simple handling for all conductor types
- https://youtu.be/Ax-uMMGVSA4
1548140000 Standards
RoHS Compliant|ATEX Certified|UL File No. E60693|Bureau Veritas Approved|DNV-GL Approved|cULus Recognized|CE Certified|CSA Certified|IEC 60947-7-1|IEC 61984|UL 94 V-0 Flammability RatingSKU #2457089Part Number #1548140000UNSPSC39121410UPC04050118353853
