Part Number # A9MEM3355
SKU # 2457129
A9MEM3355

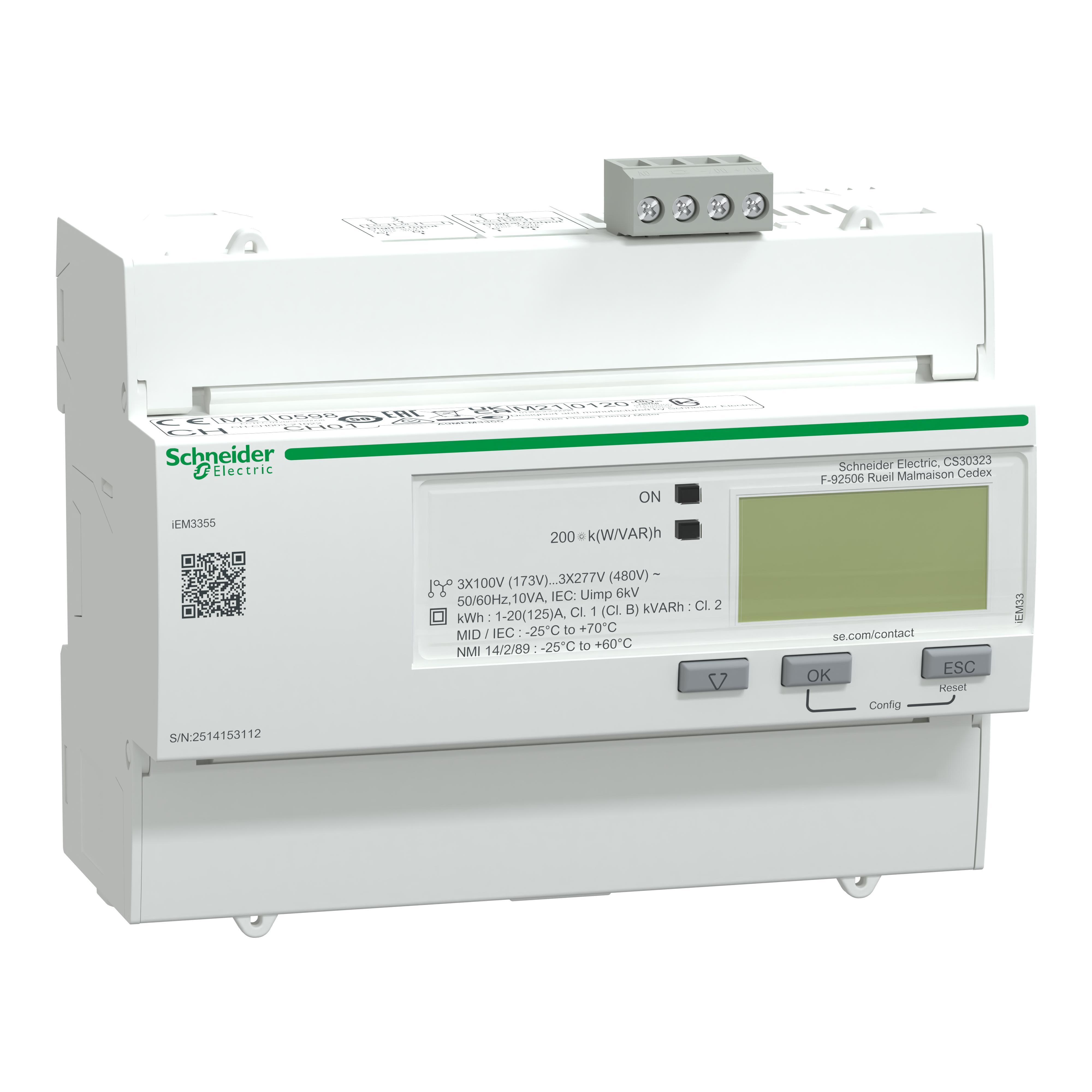

Schneider Electric A9MEM3355
Part Number # A9MEM3355
SKU # 2457129
$733.38 / Each
Typical price:$843.38 / Each
Schneider Electric A9MEM3355 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | A9MEM3355 |
| SKU #: | 2457129 |
| Amperage Rating: | 125 A |
| Dimensions: | 4.06 in H x 4.96 in W x 2.73 in D |
| Display Type: | LCD |
| Operating Temperature: | -13 to 140 deg F |
| Series: | SE Series |
| Communication: | Modbus RTU 9.6, 19.2 and 38.4 kbauds even/odd or none 4000 V |
| Country of origin: | CN |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121117 |
| UPC: | 03606480696428 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$733.38 / Each
Typical price:$843.38 / Each
Quantity:
Schneider Electric A9MEM3355
Brand: Schneider Electric
Part Number: A9MEM3355
Additional Description: SQD -A9MEM3355 (N) IEM3355 125A CL 1 MID ENERGY METER RS485 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: iEM3355 energy meter - 125 A - Modbus - 1 digital I - 1 digital O - multi-tariff - MID
A9MEM3355 Application
For 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 toA9MEM3355 Includes
Green LED power-on indicator, flashing yellow LED for accuracy checking, an overload alarm and communication indicatorsA9MEM3355 Item Features
- The offer ranges from basic kWh meters to more advanced energy meters able to measure a variety of electrical parameters
- The meters provide energy consumption data via graphical display, pulse output and/or Modbus communication
- There are there are ten different models to suit your specific needs
- The meters are fully compliant with the Acti 9 communication system, so integrating electrical distribution into your facility management system has never been simpler
- Graphical display for easy viewing
- Compact size with double fixation on the DIN rail
- Anti-tamper security features ensure the integrity of you data
- Internal clock saves the date and time of the last reset
- Internal clock saves date and time for 48h in case of power outage
- Multi-tariff selection by digital inputs or the internal clock
- Digital output for alarming or configured as pulse output
- WAGES monitoring
- Active and reactive energyActive and reactive powerCurrentVoltage type of measurement
- Active, reactive, apparent energy (signed, four quadrant) metering type
- Direct input input type
- 100 to 277 V173 to 480 V rated voltage
- Electronic technology type
- 32 samples/cycle sampling rate
- 0 to 125 A measurement current
- 99999999.9 kWh maximum value measured
A9MEM3355 Standards
UL Certified|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov|IEC 61010IEC 61036IEC 61557-12IEC 62053-23UL 61010-1IEC 62053-21|EAC Certified|CE IEC 61010 safety)CE EN 61557-12 power monitor)CE IEC 61326-1 EMC)CULus UL 61010 safety)CULus ANSI C12.20 sub-meter)EAC sub-meter)RCM NMI M 6-1 sub-meter)ULMID EN 50470-3 sub-meter)MID conforming to EN 62052 (sub-meter)|MID|CE MarkedSKU #2457129Part Number #A9MEM3355UNSPSC39121117UPC03606480696428
Image provided may only be a representation of final product and may include optional equipment
