Part Number # EMA11
SKU # 2457267
Brand: Schneider Electric
EMA11
Schneider Electric EMA11
Part Number # EMA11
SKU # 2457267
$1993.06 / Each
Typical price:$5750.00 / Each
Schneider Electric EMA11 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | EMA11 |
| SKU #: | 2457267 |
| Dimensions: | 11.4 in H x 8.2 in W x 5.3 in D |
| Environmental Conditions: | -4 to 149 deg f operating temperature, -40 to 149 deg f storage temperature, 0 to 95% operating humidity |
| Mounting type: | Surface/Flush |
| UNSPSC: | 39121634 |
| UPC: | 00047569000225 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1993.06 / Each
Typical price:$5750.00 / Each
Quantity:

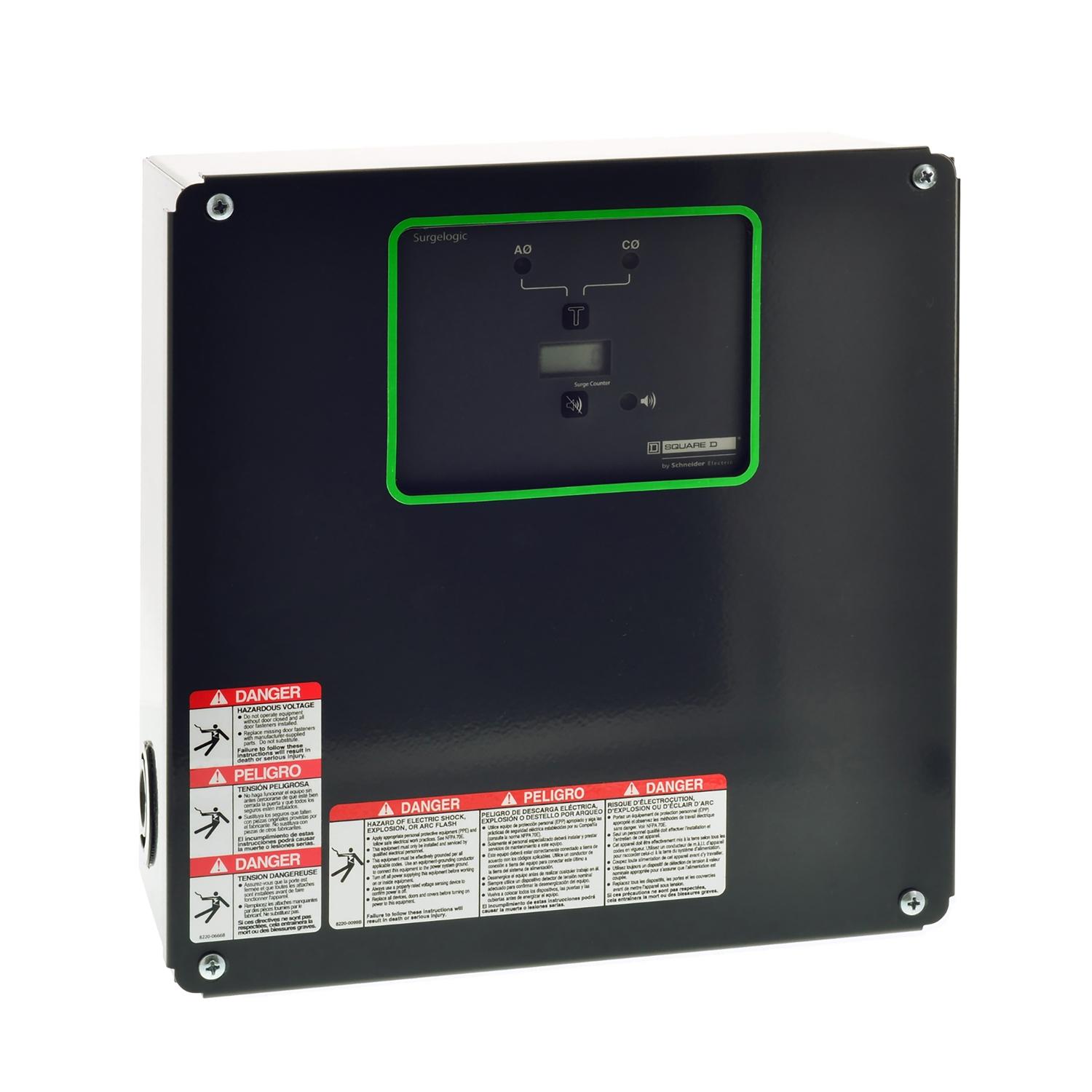

- Square D, EMA11, Surge Protection Module, 120/240 V AC Electrical Rating, 47 to 63 Hz Frequency, 3 Wires, 200 kA Short Circuit, 100 kA Peak Surge Current, 20 kA Nominal Discharge, 1 ph, Environmental Conditions: -4 to 149 deg f operating temperature, -40 to 149 deg f storage temperature, 0 to 95% operating humidity, Surface/Flush Mounting, Lug Terminal, 11.4 in H x 8.2 in W x 5.3 in D Dimensions
EMA11 Item Features
- Quality surge mitigation
- Has 100kA or 200kA per phase rating
- Mutiple voltage configurations to meet customer needs
- Comes in a NEMA 1 enclosure designed for indoor applications
EMA11 Standards
UL 1449:ed. 5|CSA C22.2 No 269.1|UL 96A|UL 1283SKU #2457267Part Number #EMA11UNSPSC39121634UPC00047569000225
Image provided may only be a representation of final product and may include optional equipment
