5NCLPT-1E
Bussmann 5NCLPT-1E
Part Number # 5NCLPT-1E
SKU # 2457404
$1676.35 / 5Each
Typical price:$3408.85 / Each
Bussmann 5NCLPT-1E Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 5NCLPT-1E |
| SKU #: | 2457404 |
| Amperage Rating: | 1E A |
| Class: | E |
| Interrupt Rating: | 63 kA |
| Series: | NCLPT |
| Type: | Current Limiting Single Barrel |
| Material: | Fiberglass Reinforced Resin |
| UNSPSC: | 39121626 |
| UPC: | 05027590093972 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1676.35 / 5Each
Typical price:$3408.85 / Each
Quantity:
Bussmann 5NCLPT-1E
Brand: Bussmann
Part Number: 5NCLPT-1E
EATON Medium Voltage Fuse, Current Limiting Single Barrel, Series: NCLPT, Indicating/Non-Indicating: Non-Indicating, 1E A, 5.5 kV, 63 kA Interrupt, Class: E, Fiberglass Reinforced Resin, 0.81 in Dia x 5.6 in L Body Size
Additional Description: BUSS-5NCLPT-1E CUR LIM Fuse, 5.5kV, 1E, 1BAR
Catalog Description: Eaton Bussmann series medium auxiliary fuse, 5.5kV 1E RATED CURRENT LIMITING FUSE, 1 A, 63K A Breaking Cap, ANSI, Class E, Bolt-on
5NCLPT-1E Application
Indoor Applications5NCLPT-1E Item Features
- Rapid electrical circuit protection in the event of a fault
- keeping the electrical installation safe
- The silver elements ensure high conductivity and low power (revenue ) loss
- maximising network efficiency
- All Eatons Bussmann series Medium voltage voltage and auxiliary transformer fuses are X-rayed during production ensuring the highest possible production standard are maintained
- Cool running
5NCLPT-1E Standards
IEEE Std. C37.41SKU #2457404Part Number #5NCLPT-1EUNSPSC39121626UPC05027590093972

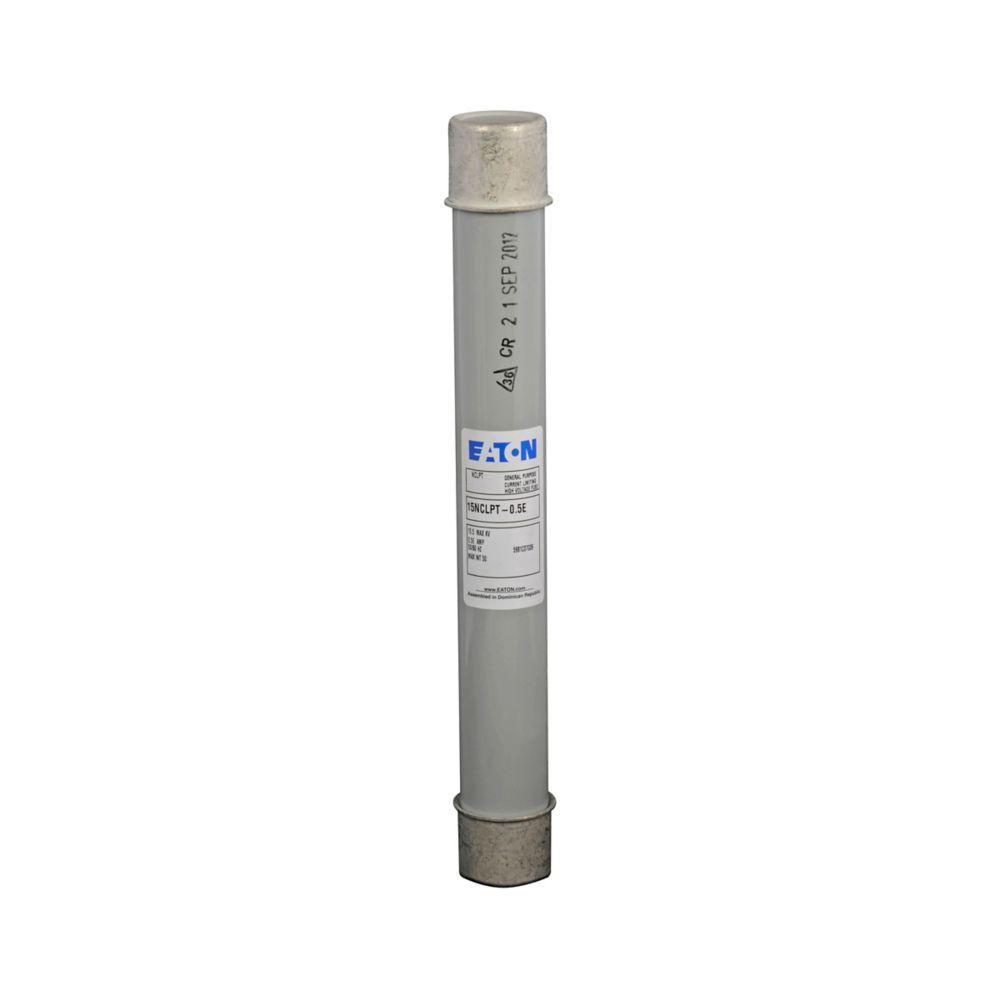

Image provided may only be a representation of final product and may include optional equipment
