2456820000
Weidmuller 2456820000
Part Number # 2456820000
SKU # 2457475
$425.04 / Each
Weidmuller 2456820000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 2456820000 |
| SKU #: | 2457475 |
| Dimensions: | 0.886 in W x 4.472 in D x 5.004 in H |
| Input Type: | Analog Signal |
| Input Voltage: | 10 to 60 V DC |
| Response Time: | <400 ms |
| Series: | ACT20P |
| Specifications: | 300 V Rated Voltage, 5.7 kV Insulation Voltage, -10 to 85 deg C Storage , 10 to 90% Humidity |
| Temperature Rating (Degrees F): | -40 to 70 deg C |
| Type: | 3-Way |
| Connection type: | Push-In |
| Country of origin: | AU |
| Output current: | 0 to 22 mA |
| Output type: | Analog |
| Output voltage: | 0 to 11 V |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121020 |
| UPC: | 04050118471762 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$425.04 / Each
Quantity:
- Weidmuller Measuring Bridge Converter, 3-Way, Series: ACT20P, Analog Signal Input, 10 Output, 10 to 60 V DC Input, 0 to 11 V Output, 0 to 22 mA Output Current, Push-In Connection, -40 to 70 deg C, <400 ms Response, +/-0.05 % Accuracy, Specifications: 300 V Rated Voltage, 5.7 kV Insulation Voltage, -10 to 85 deg C Storage, 10 to 90% Humidity, 0.886 in W x 4.472 in D x 5.004 in H Dimensions
2456820000 Item Features
- Bridge measuring transducer for reading from load cells
- Three way isolation
- Supplies measuring bridges up to four 350 ohm
- Simple calibration of the tare weight using external switch or PLC input
- Input and output ranges adjustable via DIP switch
- https://youtu.be/-hel_Wro7I8
2456820000 Standards
CE Certified|cULus Listed|REACH SVHC Lead 7439-92-1|EAC Compliant|DIN EN 61010-1|DIN EN 61000-4-2|RoHS CompliantSKU #2457475Part Number #2456820000UNSPSC39121020UPC04050118471762

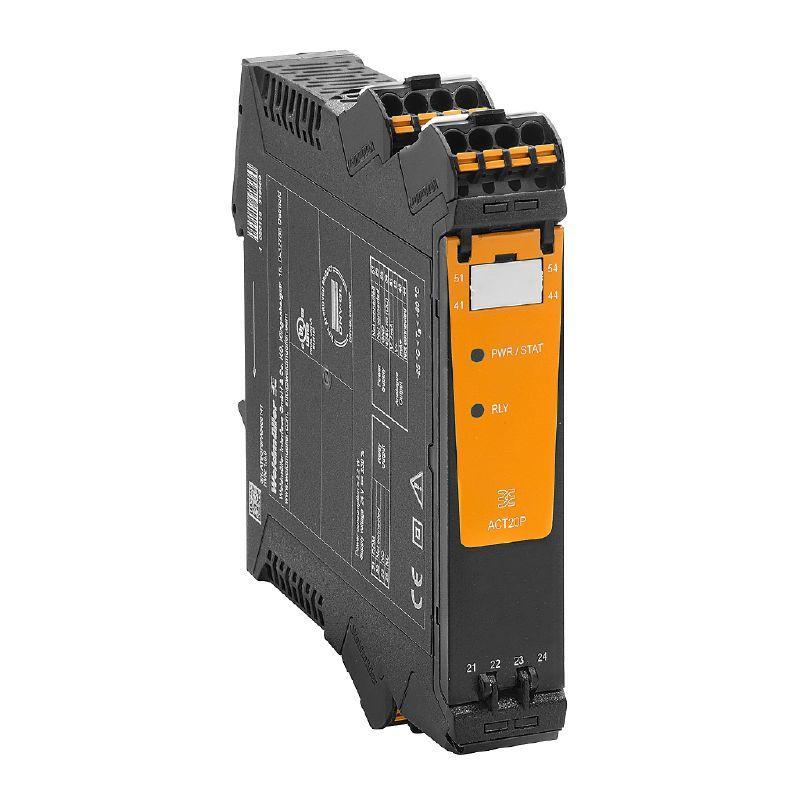

Image provided may only be a representation of final product and may include optional equipment
