Part Number # SC0040
SKU # 2457536
SC0040
3M SC0040
Part Number # SC0040
SKU # 2457536
$627.90 / 10Each
Typical price:$797.30 / Each
3M SC0040 Key Features
| Brand: | 3M |
|---|---|
| Part Number # : | SC0040 |
| SKU #: | 2457536 |
| Conductor Size: | 4/0 AWG |
| Conductor Type: | Stranded |
| Dimensions: | 0.31 in Dia x 6 in L |
| Finish: | Tin Plated |
| Series: | SC Series |
| Country of origin: | US |
| Material: | Aluminum/Copper |
| Manufacturer Name: | 3M |
| UNSPSC: | 27121707 |
| UPC: | 00054007146971 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$627.90 / 10Each
Typical price:$797.30 / Each
Quantity:
3M SC0040
Brand: 3M
Part Number: SC0040
Additional Description: 3M -7000031366 3M S 7000031366
Catalog Description: 3M™ SC Stem Connector is uesd when connector cable to an overhead line. The connector is tin plated aluminum for use on either copper or aluminum cable conductors. The stem "pin" is tin plated copper. It is rated up to 35 kV.
SC0040 Application
For terminating an insulated power cable with 3M termination ApplicationsSC0040 Item Features
- Tin plated aluminum barrel offers reliable performance
- Tin-plated copper stem for connection to overhead connections
- Rated up to 35 kV
- Factory crimped and sealed copper pin
SC0040 Standards
RoHS CompliantSKU #2457536Part Number #SC0040UNSPSC27121707UPC00054007146971

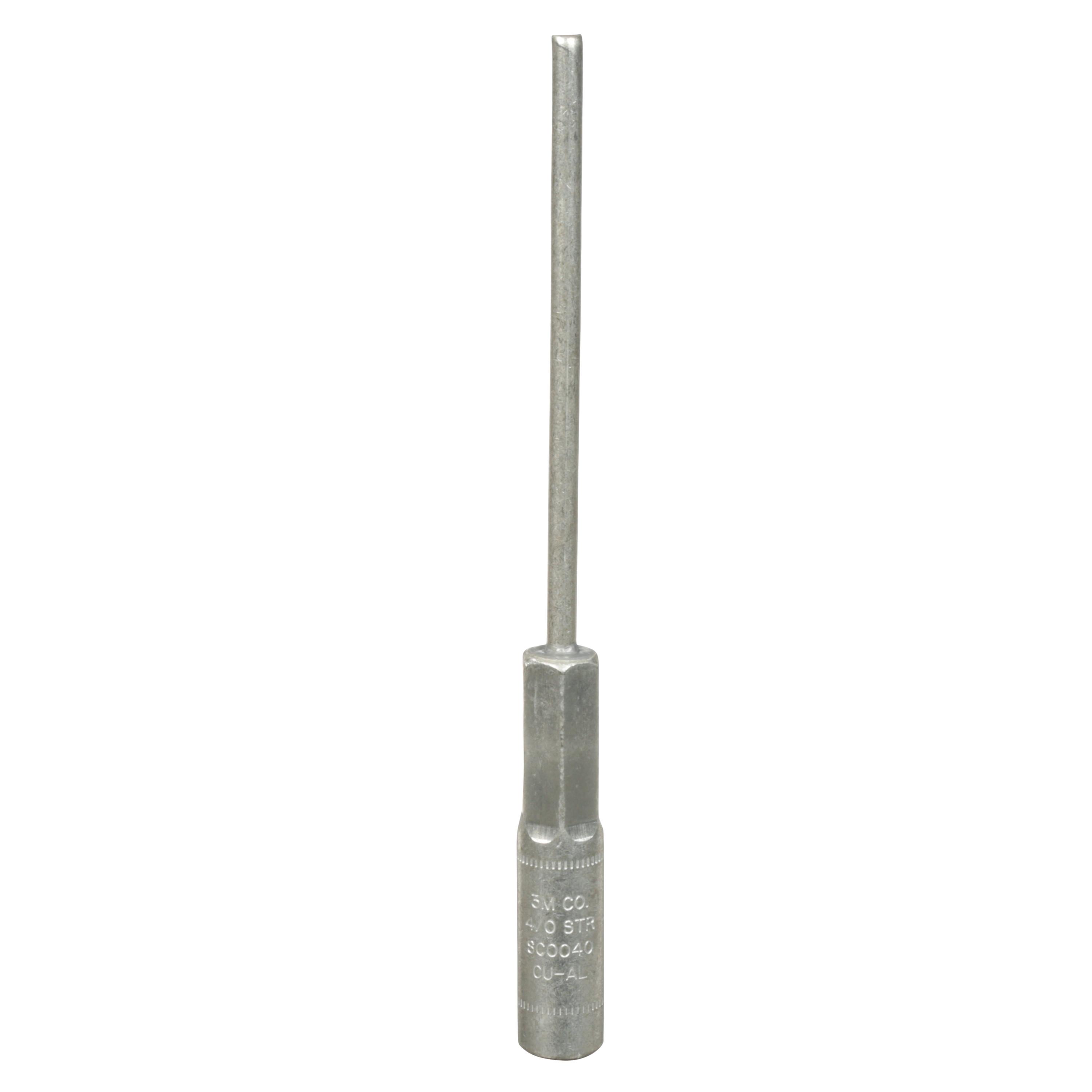

Image provided may only be a representation of final product and may include optional equipment
