Mersen H1200492
Part Number # H1200492
SKU # 2457599

H1200492
Mersen H1200492
Part Number # H1200492
SKU # 2457599
Mersen H1200492 Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | H1200492 |
| SKU #: | 2457599 |
| Dimensions: | 4.63 in L |
| Rated Breaking Capacity: | 250 kA |
| UNSPSC: | 39121606 |
| UPC: | 00605340700954 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Mersen H1200492
Brand: Mersen
Part Number: H1200492

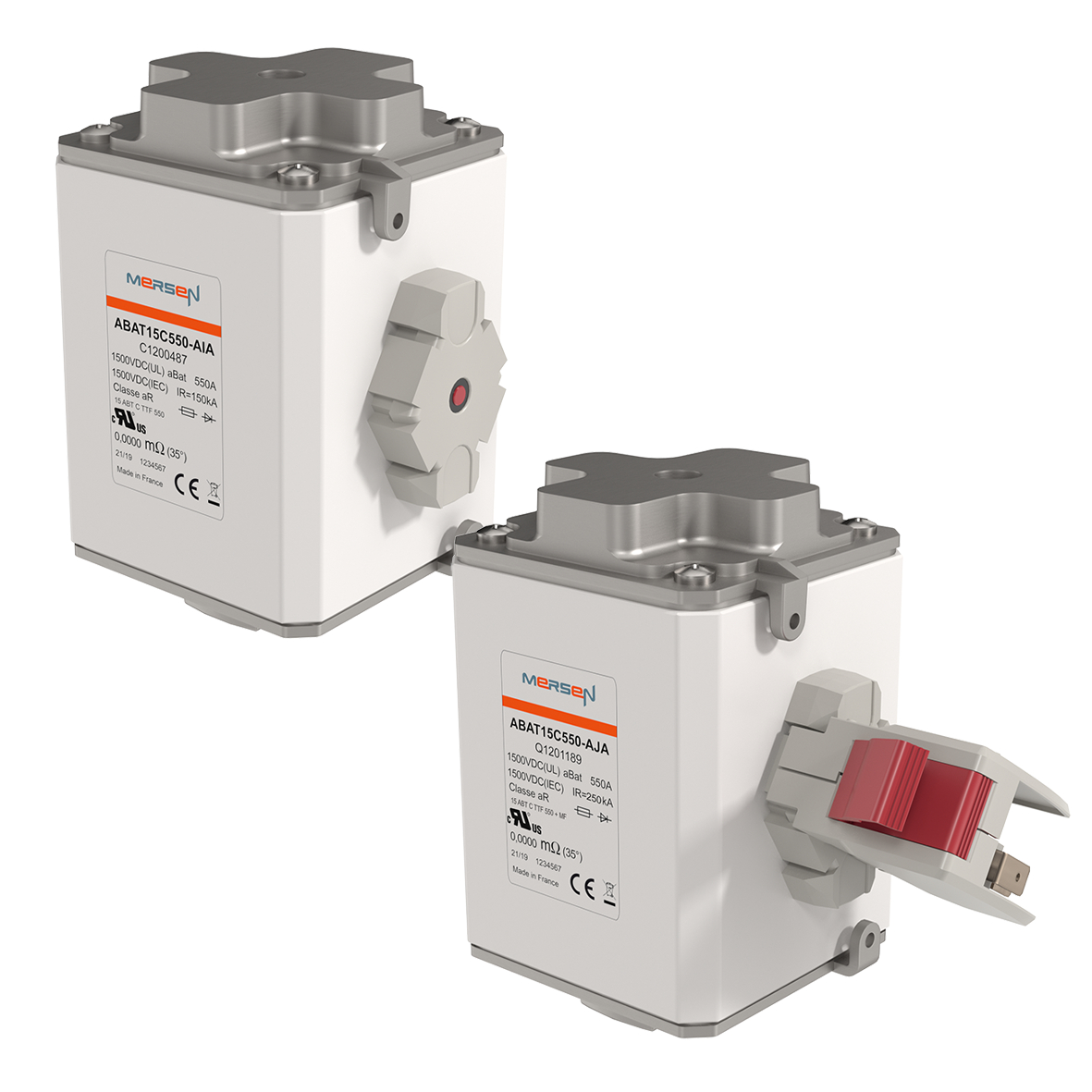

Mersen, H1200492, DC Protection Fuse, High Speed, 1.5 kV DC, 1000 A, 91 W Power, Rated Breaking Capacity: 250 kA, Bolted Mounting, Ceramic, 4.63 in L Dimensions
Additional Description: MERS-H1200492 15 ABT C TTF 1000/1 NON-CANCELLABLE,NON-RETURNABLE
Catalog Description: ABAT Size C, voltage : up to 1500VDC (with L/R?3ms), Class : aBat, 1000A, with Metric thread Flush Ends
H1200492 Application
For Protection of inverters, Battery container protection, Battery rack / string protection, Power Conversion System (PCS) protection, Protection of Battery Connection Panel (BCP), DC Systems protectionH1200492 Item Features
- Mersen DC offers provide a very high performant protection for DC applications in particular battery container or inverter protection
- ABAT15C fuses allow them to clear high Max
- Interrupting Rating and provide a limited power loss
- Designed for DC applications
- Dedicated to battery protection
- Fastest of their category
- Compactness
- High Max
- Interrupting Rating
- Several terminals can be provided
H1200492 Standards
IEC 60 269-7|UL Recognized - UL 248-13|IEC 60 269-4|RoHS CompliantSKU #2457599Part Number #H1200492UNSPSC39121606UPC00605340700954
Image provided may only be a representation of final product and may include optional equipment
