Part Number # OS100GJ12P
SKU # 2457640
OS100GJ12P

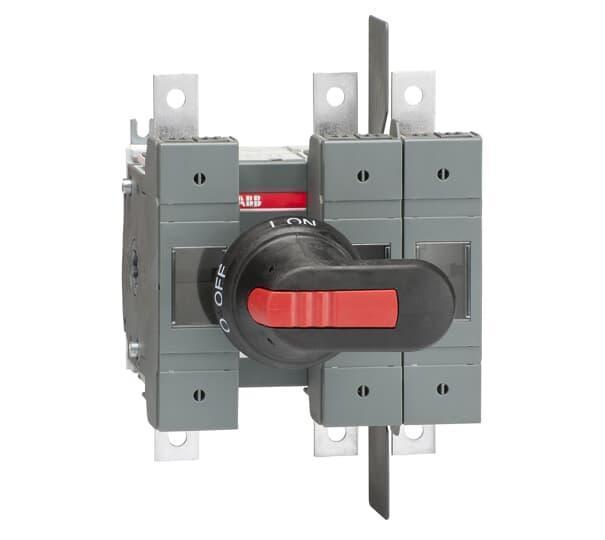

ABB OS100GJ12P
Part Number # OS100GJ12P
SKU # 2457640
$395.25 / Each
Typical price:$525.86 / Each
ABB OS100GJ12P Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | OS100GJ12P |
| SKU #: | 2457640 |
| Amperage Rating: | 100 A |
| Contact Form: | 1NO-1NC 1 Form A/1 Form B |
| Dimensions: | 172 mm H x 147 mm W x 105 mm D |
| Enclosure Type: | IP65 |
| Horsepower: | 75 hp |
| Number of Poles: | 3 |
| Series: | OS Series |
| Short Circuit Current Rating (kA): | 200 kA |
| Temperature Rating (Degrees F): | 40 deg C |
| Terminal Type: | Lug |
| Type: | Fusible Open |
| Country of origin: | FI |
| Mounting type: | Surface |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122233 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$395.25 / Each
Typical price:$525.86 / Each
Quantity:
- ABB Disconnect Switch, Fusible Open, Series: OS Series, 600 VAC, 100 A, 75 hp, 3 Pole, 200 kA Short Circuit, 1NO-1NC 1 Form A/1 Form B Contact Form, IP65 Enclosure, Surface Mounting, Lug Terminal, 40 deg C, 172 mm H x 147 mm W x 105 mm D Dimensions
OS100GJ12P Application
For motor disconnects or industrial control panel disconnects on service entrance equipment, panelboards, switchboards, industrial control equipment, motor control centers and low voltage applicationsOS100GJ12P Includes
Terminal Bolt Kit, Black ON-OFF Plastic Handle and ShaftOS100GJ12P Item Features
- Finger proof - dead front construction plus terminal shrouds reduce the risk of touching live parts, improving safety and reliability of the installation
- Switches can be used equally well with either top or bottom incoming power feed
- Modular construction
- The handle and shaft provide door interlock so that the door cannot be opened when the switch is in the on position
- Handles can be padlocked in the "OFF" position with up to three padlocks
- Welded contact protection
- Clear position indication
- Excellent track resistant material reduces the risk of flash over between phases in even the most severe circumstances
- Quick make, quick brake mechanism
- Fuses are totally isolated in the off position, reducing the risk of shock to authorized personnel
- Superior short circuit protection
- Front operated mode
- Class J fuse compatible
- 1-pole to left of mechanism, 2-poles to right
- The shaft is adjustable for a range of installation depths
OS100GJ12P Standards
UL 98|CSA C22.2 No. 4|IEC 60947-1/60947-3SKU #2457640Part Number #OS100GJ12PUNSPSC39122233UPC
Image provided may only be a representation of final product and may include optional equipment
