Brand: Square D
Square D QOU3305292
Part Number # QOU3305292
SKU # 2457732

Brand: Square D
QOU3305292
Square D QOU3305292
Part Number # QOU3305292
SKU # 2457732
$437.43 / Each
Typical price:$498.00 / Each
Square D QOU3305292 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | QOU3305292 |
| SKU #: | 2457732 |
| Amperage Rating: | 30 A |
| Dimensions: | 3 in W x 2.95 in D x 4.05 in H |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 10 kA |
| Number of Poles: | 3 |
| Type: | Standard |
| Wire Size: | 14 to 2 AWG Al/Cu |
| Country of origin: | MX |
| Mounting type: | Plug-On |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121603 |
| UPC: | 03606486146972 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
$437.43 / Each
Typical price:$498.00 / Each
Quantity:
- Square D Miniature Circuit Breaker, Standard, 240 V AC, 30 A, 50/60 Hz Frequency, 10 kA Interrupt, 3 Poles, 14 to 2 AWG Al/Cu Wire, Plug-On Mounting, 3 in W x 2.95 in D x 4.05 in H Dimensions
QOU3305292 Application
Residential and Light Commercial Circuit Protection, Commercial and Industrial Circuit Protection, Single-Phase and Three-Phase Applications, High Interruption Rating Capabilities, Overcurrent Protection, Short Circuit Protection, Parallel and Series Arc Fault Protection and Ground Fault Protection ApplicationsQOU3305292 Item Features
- Ideal for OEM applications requiring high reliability and flexible configuration
- Qualifies as a sustainable product due to its high-efficiency design
- Simple design and clear instructions help you installcorrectly
- Can be DIN rail-mounted, surface-mounted, or flush-mounted
- Visi-Trip indication provides a clear visual signal when the breaker has tripped
QOU3305292 Standards
Green Premium Listed|RoHS Compliant|REACH CompliantSKU #2457732Part Number #QOU3305292UNSPSC39121603UPC03606486146972

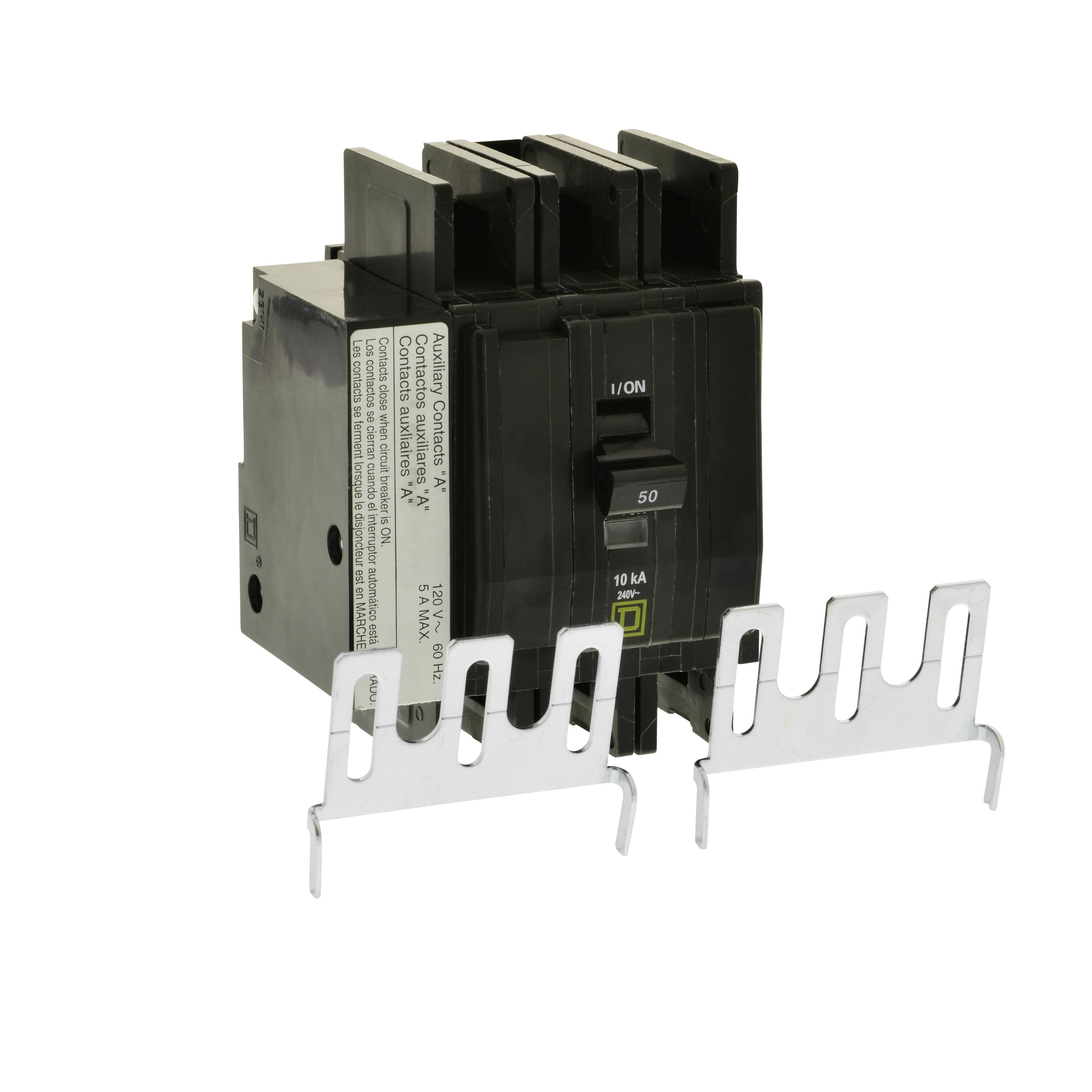

Image provided may only be a representation of final product and may include optional equipment
