1003080000
Weidmuller 1003080000
Part Number # 1003080000
SKU # 2457831
$12.92 / Each
Typical price:$14.87 / Each
Weidmuller 1003080000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1003080000 |
| SKU #: | 2457831 |
| Dimensions: | 77.5 mm H x 35 mm W x 50 mm D |
| Entry Type: | PG21 |
| Finish: | Nickel Plated |
| Series: | HQ Series |
| Specifications: | IP65 Degree of Protection, Side-Locking Clamp on Lower Side |
| Suitable For Use With: | RockStar NEMA Type 4X Plug Housing and HDC Enclosure |
| Temperature Rating (Degrees F): | -40 to 125 deg C |
| Type: | Standard |
| Country of origin: | CN |
| Material: | Die Cast Zinc |
| Mounting type: | Bulkhead |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151901 |
| UPC: | 04032248698011 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$12.92 / Each
Typical price:$14.87 / Each
Quantity:

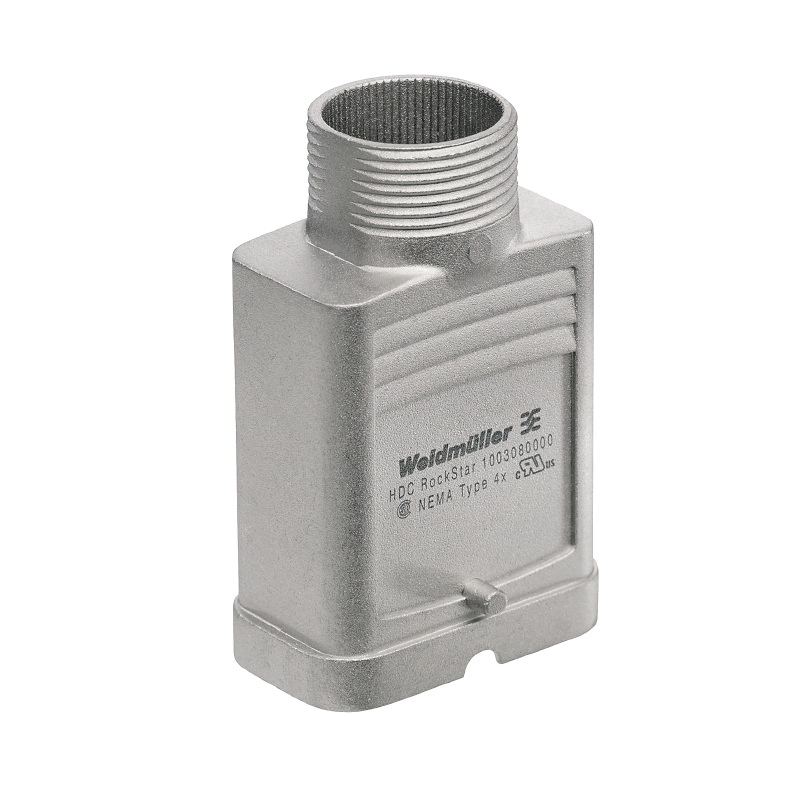

- Weidmuller Hood, Standard, Series: HQ Series, Top Entry Position, PG21 Entry, Bulkhead Mounting, For Use With: RockStar NEMA Type 4X Plug Housing and HDC Enclosure, -40 to 125 deg C, Specifications: IP65 Degree of Protection, Side-Locking Clamp on Lower Side, Die Cast Zinc, Silver Gray, Nickel Plated, 77.5 mm H x 35 mm W x 50 mm D Dimensions
1003080000 Application
Industrial Applications1003080000 Item Features
- Special die cast alloy and the multi-layered surface sealing provide complete protection for the HDC housings
- Cleverly designed interlock system is manufactured from stainless steel
- Guarantees a long lifespan with high resistance to corrosion and impact
- Housing interlock system provides integrated safety
- Unique, patented spring system provides the housing interlock with a secure grip and prevents accidental opening
- Laser marking allows for easy and quick identification
- Each housing is permanently labelled with a laser marking so that each product can be quickly designated and positioned
1003080000 Standards
cULus Listed|RoHS Compliant|CE CertifiedSKU #2457831Part Number #1003080000UNSPSC32151901UPC04032248698011
Image provided may only be a representation of final product and may include optional equipment
