1933730000
Weidmuller 1933730000
Part Number # 1933730000
SKU # 2458000
$68.79 / 50Each
Typical price:$76.40 / Each
Weidmuller 1933730000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1933730000 |
| SKU #: | 2458000 |
| Amperage Rating: | 20/24 A |
| Dimensions: | 56.5 mm H x 5.1 mm W x 38.5 mm D |
| Series: | Z Series |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Type: | 1-Tier Compact Feed-Through |
| Wire Size: | 30 to 12 AWG |
| Connection type: | Tension Clamp |
| Country of origin: | CZ |
| Material: | Wemid |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04032248586769 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$68.79 / 50Each
Typical price:$76.40 / Each
Quantity:

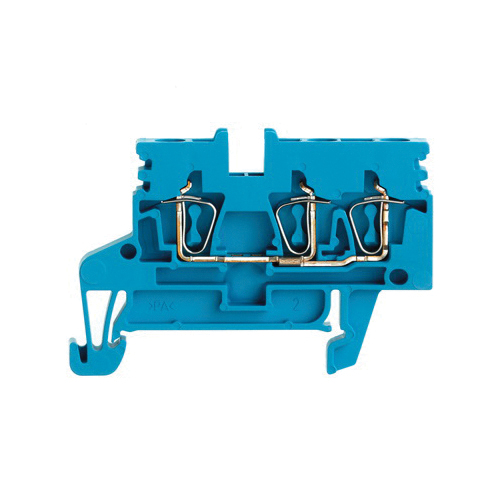

- Klippon Terminal Block, 1-Tier Compact Feed-Through, Series: Z Series, 300/800 V, 20/24 A, 30 to 12 AWG Wire, 10 mm Wire Strip Length, DIN Rail Mounting, Tension Clamp Connection, -50 to 120 deg C, Wemid, Blue, 56.5 mm H x 5.1 mm W x 38.5 mm D Dimensions
1933730000 Item Features
- Tension clamp technology is a universal contact system for all common conductor connection types
- Its fantastic level of flexibility makes the tension clamp a profitable alternative connection
- 800 V IEC, 300 V UL and CSA
- 24 A IEC, CSA and 20 A UL
1933730000 Standards
RoHS Compliant|cULus File No. E60693 Recognized|CSA 200039-1842498|ATEX KEMA06ATEX0271U|IECEX IECEXULD15.0008U|UL 94 V-0 Flammability Rating|CE Certified|EAC Certified|DNV-GL Approved|INMETRO Certified|RINA 1861|IEC 60947-7-1SKU #2458000Part Number #1933730000UNSPSC39121410UPC04032248586769
Image provided may only be a representation of final product and may include optional equipment
