Part Number # B62/004
SKU # 2458562
Belden B62/004 Key Features
| Brand: | Belden |
|---|---|
| Part Number # : | B62/004 |
| SKU #: | 2458562 |
| Amperage Rating: | 190 A |
| Conductor Size: | 2/0 AWG |
| Conductor Type: | Fully Annealed Bare Stranded Copper |
| Jacket Color: | Black |
| Jacket Material: | Thermoset/CPE |
| Number of Conductors: | 4 |
| Outside Diameter: | 1.855 in |
| Strands: | 259 |
| Temperature Rating (Degrees F): | 90 deg C |
| Type: | Type G Flexible |
| Insulation material: | EPDM |
| Manufacturer Name: | Omni Cable |
| UNSPSC: | MISC |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
- Omni Cable Portable Cord, Type G Flexible, 2 kV AC, 190 A, 4 Conductors, Fully Annealed Bare Stranded Copper Conductor, 2/0 AWG Conductor, 1.855 in OD, 259 Strands, EPDM Insulation, Thermoset/CPE Jacket, Black Jacket, 90 deg C
B62/004 Application
For mining equipment, cranes, conveyors and mobile equipment, excellent impact resistance, withstands severe environmental conditions, resistant to heat, acids, oil, moisture and most chemicalsB62/004 Item Features
- Fully annealed stranded bare copper, ropelay stranding for maximum flexibility
- Heavy duty thermoset CPE jacket
B62/004 Standards
UL Listed|MSHA Approved|ICEA 5-75-381SKU #2458562Part Number #B62/004UNSPSCMISCUPC

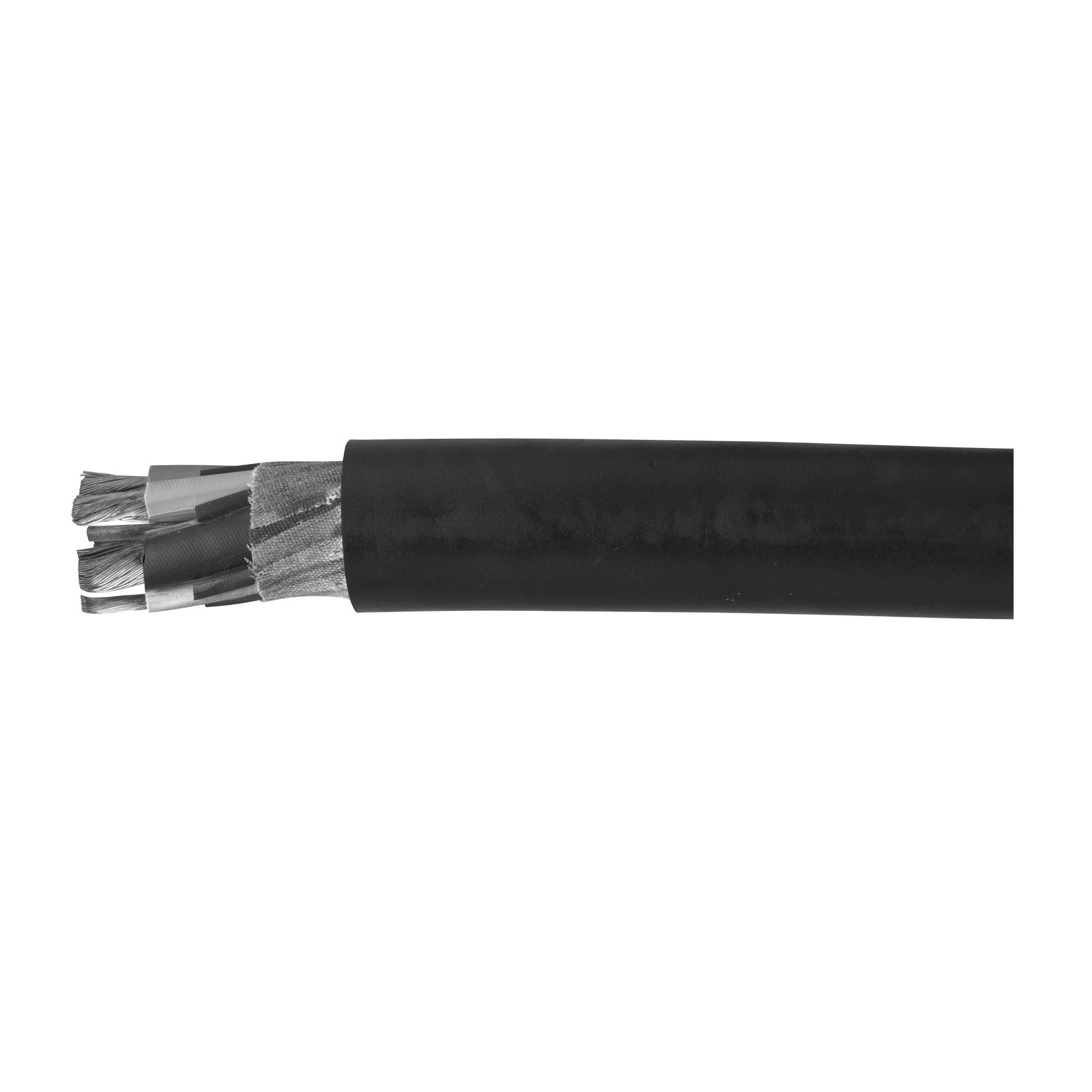

Image provided may only be a representation of final product and may include optional equipment
