Part Number # CCP2-2-100CF
SKU # 2458565
CCP2-2-100CF
Bussmann CCP2-2-100CF
Part Number # CCP2-2-100CF
SKU # 2458565
$1055.40 / 3Each
Typical price:$1956.30 / Each
Bussmann CCP2-2-100CF Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | CCP2-2-100CF |
| SKU #: | 2458565 |
| Amperage Rating: | 100 A |
| Fuse Type: | Class CF |
| Number of Poles: | 2 |
| Operating Temperature: | -4 to 167 deg F |
| Operator: | Switch Handle |
| Type: | Compact Fused |
| Height: | 3.7 in |
| Mounting type: | 35 mm DIN Rail |
| Width: | 0.3 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39122233 |
| UPC: | 00051712709316 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1055.40 / 3Each
Typical price:$1956.30 / Each
Quantity:
Bussmann CCP2-2-100CF
Brand: Bussmann
Part Number: CCP2-2-100CF
Additional Description: BUSS-CCP2-2-100CF (N) 2 Pole Comp Ckt Protect 100A NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series CCP UL98 fusible disconnect, 600 Vac, 125 Vdc, 100A, UL98 fusible disconnect, Two-pole, 60 Hz, CUBEFuse, 200 - CCP2-2-100CF
CCP2-2-100CF Item Features
- Uses UL class CF time delay or fast acting CUBEFuse with class J electrical performance
- Extremely compact design at 25.4 mm wide per pole
- Amp rating rejection disconnects will not accept a CUBEFuse amp rating greater than switch rating
- Disconnect rated to provide a means for load isolation
- UL 98 listed and suitable for branch circuit disconnect and branch circuit protection with installed fuses
- Open fuse indication - local open fuse indication light standard on each pole
- Additional open fuse indication can be provided by the indicating time delay CUBEFuse (6 to 100 A)
- Finger-safe construction with 10 AWG wire or larger
- Built-in switch interlock prohibits removing or installing the fuse while in the ON position
- Padlockable for lockout/tagout procedures with a 1/4 in lock
- 200 kA AC, 100 kA DC short circuit current rating
CCP2-2-100CF Standards
UL 98,RoHS CompliantSKU #2458565Part Number #CCP2-2-100CFUNSPSC39122233UPC00051712709316

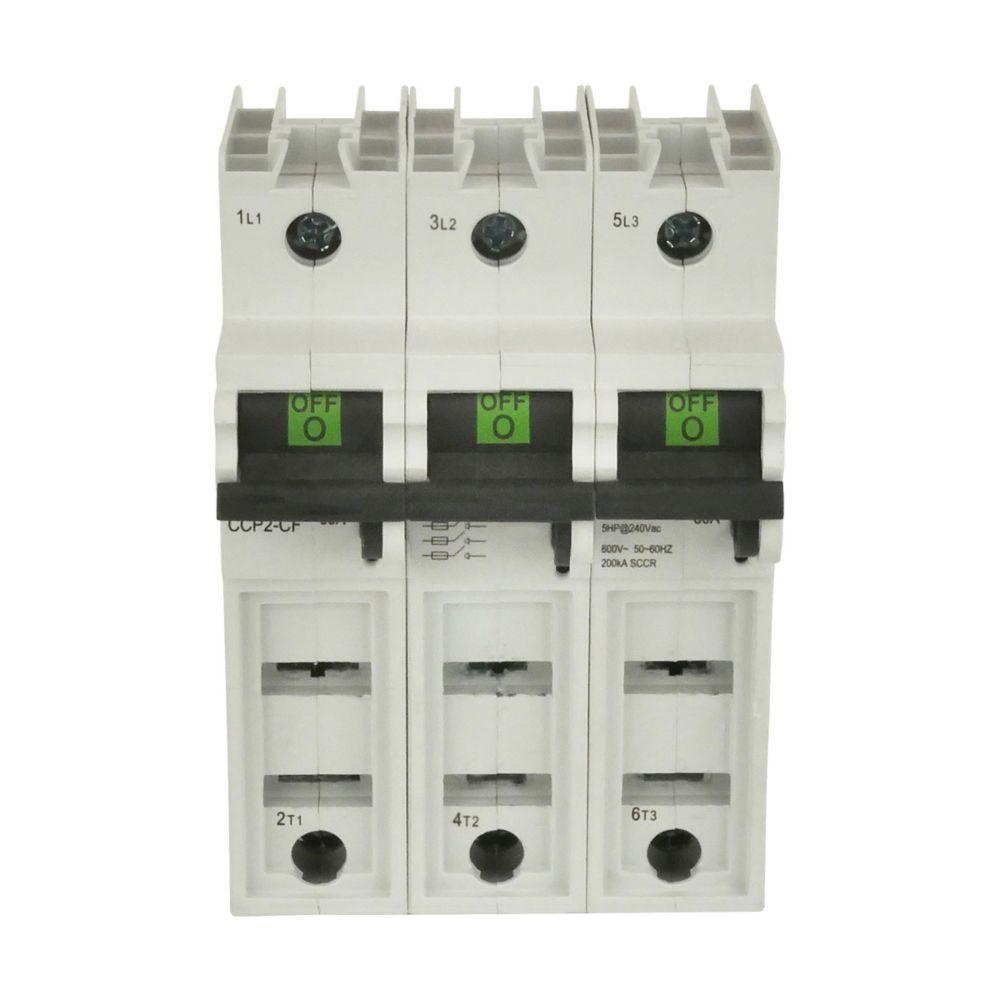

Image provided may only be a representation of final product and may include optional equipment
