Part Number # K655LRM2380
SKU # 2458926
K655LRM2380
Thomas & Betts K655LRM2380
Part Number # K655LRM2380
SKU # 2458926
$1221.91 / Each
Typical price:$1637.36 / Each
Thomas & Betts K655LRM2380 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | K655LRM2380 |
| SKU #: | 2458926 |
| Amperage Rating: | 600 A |
| Conductor Size: | 700 to 750 kcmil Stranded/Compressed, 900 kcmil Solid/Compact |
| Conductor Type: | Copper |
| Dimensions: | 10.36 in W |
| Series: | K655LR |
| Material: | EPDM Rubber |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121421 |
| UPC: | 00075114097901 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1221.91 / Each
Typical price:$1637.36 / Each
Quantity:
- Elastimold Deadbreak Elbow Connector, Series: K655LR, 15 to 25 kV, 600 A, 700 to 750 kcmil Stranded/Compressed, 900 kcmil Solid/Compact Conductor, Copper Conductor, 1.37 to 1.63 in Insulation Diameter, EPDM Rubber, Black, 10.36 in W
K655LRM2380 Application
Designed to provide fully shielded, dead-front submersible cable connections to high-voltage apparatusK655LRM2380 Includes

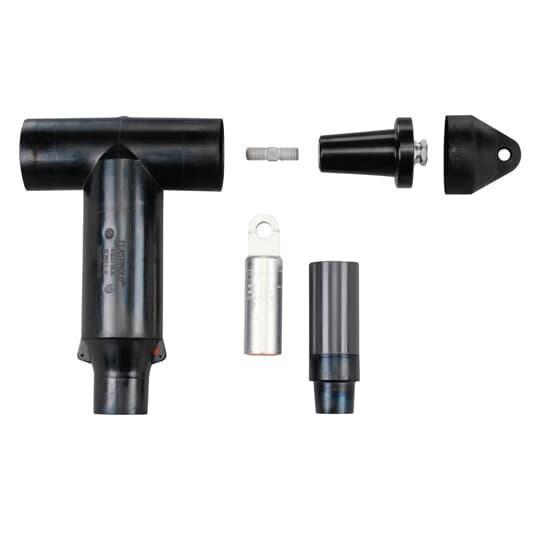

(1) K655BLR Elbow Connector Housing, (1) 03700XXX Copper Compression Lug, (1) 650SA Stud, (1) K650BIP Insulated Plug with Cap, (3) 82-08 Lubricant Tube, (1) 655CA-W Cable Adapter, (1) S-0230 Installation Instruction, (1) IS-0249 Installation Instruction and (1) CC-0050 Crimp chartK655LRM2380 Item Features
- Fully shielded, fully submersible molded rubber housing
- 100% peroxide-cured construction includes insulation and conductive EPDM materials
- Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state
- Without test point
K655LRM2380 Standards
ANSI Specified|IEEE 386SKU #2458926Part Number #K655LRM2380UNSPSC39121421UPC00075114097901
Image provided may only be a representation of final product and may include optional equipment
