1984610000
Weidmuller 1984610000
Part Number # 1984610000
SKU # 2459165
$331.50 / 10Each
Typical price:$355.80 / Each
Weidmuller 1984610000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1984610000 |
| SKU #: | 2459165 |
| Amperage Rating: | 6 A |
| Coil Voltage: | 24 to 230 V AC |
| Contact Form: | 1CO 1 Form C |
| Dimensions: | 89.6 mm H x 6.4 mm W x 87.8 mm D |
| Enclosure Type: | IP20 |
| Series: | TERMSERIES |
| Temperature Rating (Degrees F): | -40 to 60 deg C |
| Terminal Type: | Screw |
| Country of origin: | CN |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39122325 |
| UPC: | 04050118375299 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$331.50 / 10Each
Typical price:$355.80 / Each
Quantity:
- Weidmuller Relay Module, Series: TERMSERIES, 6 A, 610 mW, 650 mVA, 575 mW, 1.1 VA Power, 24 to 230 V AC Coil, 1CO 1 Form C Contact Form, Screw Terminal, IP20 Enclosure, -40 to 60 deg C, 89.6 mm H x 6.4 mm W x 87.8 mm D Dimensions
1984610000 Item Features
- Space saving, just 6.4 mm modular width
- AgNi contact
- Multi-voltage input - 24 to 230 VUC in one module
- Slim design with 6.4 mm or 12.8 mm W
- Distinctive fiber optic illuminated status display
- 5 cross connection levels
- Clear marking
- Pluggable relays and SSRs
- Wide range of accessories
- 610 mW at 24 VDC, 650 mVA at 24 VAC, 575 mW at 230 VDC, 1.1 VA at 230 VAC
- https://www.youtube.com/watch?v=CbUO3LxUzYc&feature=youtu.be
1984610000 Standards
RoHS Compliant|REACH SVHC Lead 7439-92-1|UL 94 V-0 Flammability Rating|EN 50178, EN 55011, EN 61000-6-1, 2, 4|cULus File No. E324123|cULusEX Listed|CE Certified|EAC CertifiedSKU #2459165Part Number #1984610000UNSPSC39122325UPC04050118375299

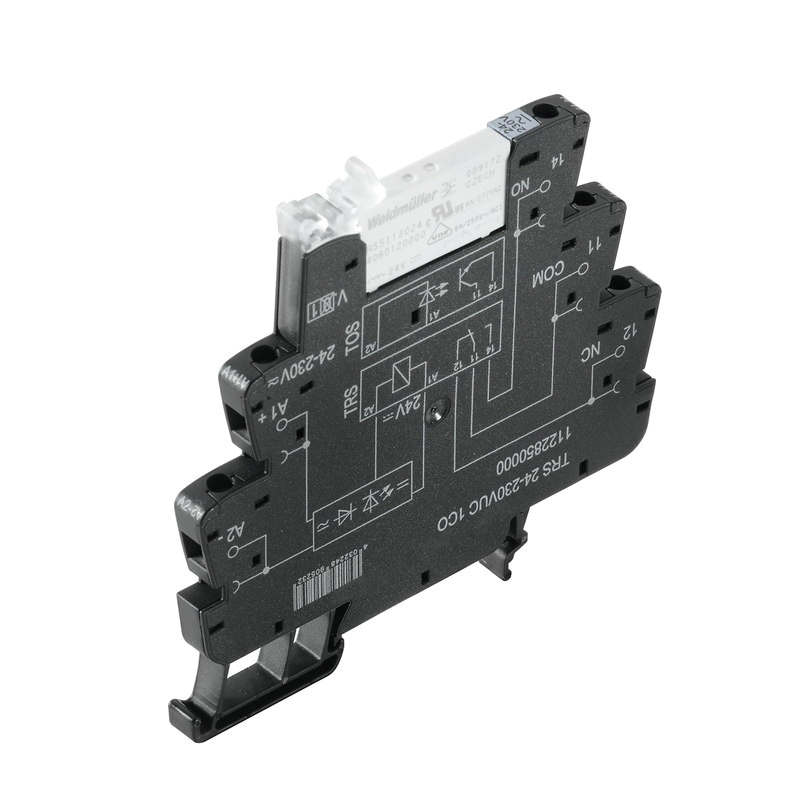

Image provided may only be a representation of final product and may include optional equipment
