Part Number # AC500R400TN
SKU # 2459383
AC500R400TN
Thomas & Betts AC500R400TN
Part Number # AC500R400TN
SKU # 2459383
$63.96 / Each
Typical price:$85.70 / Each
Thomas & Betts AC500R400TN Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | AC500R400TN |
| SKU #: | 2459383 |
| Conductor Size: | 336.4 kcmil, 397.5 kcmil, 397/5 kcmil, 400 to 500 kcmil, 477 to 500 kcmil, 600 kcmil, 477 kcmil |
| Conductor Type: | ACSR/Aluminum/Copper/Compact |
| Dimensions: | 1-21/64 in OD x 8-7/8 in L |
| Specifications: | 106, 300, 317, 15A Dies |
| Type: | Straight Uninsulated |
| UNSPSC: | 39121449 |
| UPC: | 00783786691838 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$63.96 / Each
Typical price:$85.70 / Each
Quantity:

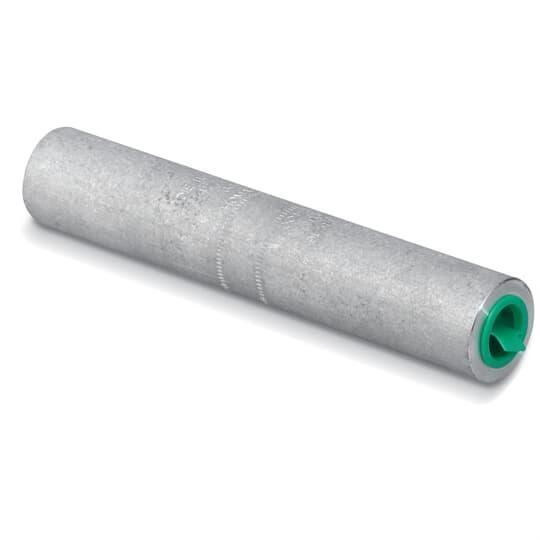

- Blackburn Compression Reducing Splice, Straight Uninsulated, ACSR/Aluminum/Copper/Compact Conductor, 336.4 kcmil, 397.5 kcmil, 397/5 kcmil, 400 to 500 kcmil, 477 to 500 kcmil, 600 kcmil, 477 kcmil Conductor, Specifications: 106, 300, 317, 15A Dies, Aluminum, Tin Plated, 1-21/64 in OD x 8-7/8 in L Dimensions
AC500R400TN Includes
Oxide Inhibitor, (1) 500 kcmil Pink Cap and (1) 400 kcmil Green CapAC500R400TN Item Features
- Made of aluminum which provides high strength and high conductivity
- Dual rated for use with aluminum and copper conductors
- All splices marked with conductor sizes and die references for easy identification
- Connector bores coated with oxide inhibitor and capped to prevent oxidation
- Pre-filled with oxide inhibiting compound
- solid center stop ensures proper cable insertion
- 400 to 500 kcmil, 477 to 500 kcmil, 600 kcmil aluminum/copper/compact, 397/5 (26/7) kcmil, 477 (18/1) kcmil ACSR, 397.5 to 400 kcmil aluminum/copper, 336.4 (26/7) kcmil, 397.5 (18/1) kcmil ACSR
AC500R400TN Standards
ANSI C119.4SKU #2459383Part Number #AC500R400TNUNSPSC39121449UPC00783786691838
Image provided may only be a representation of final product and may include optional equipment
