CS120B

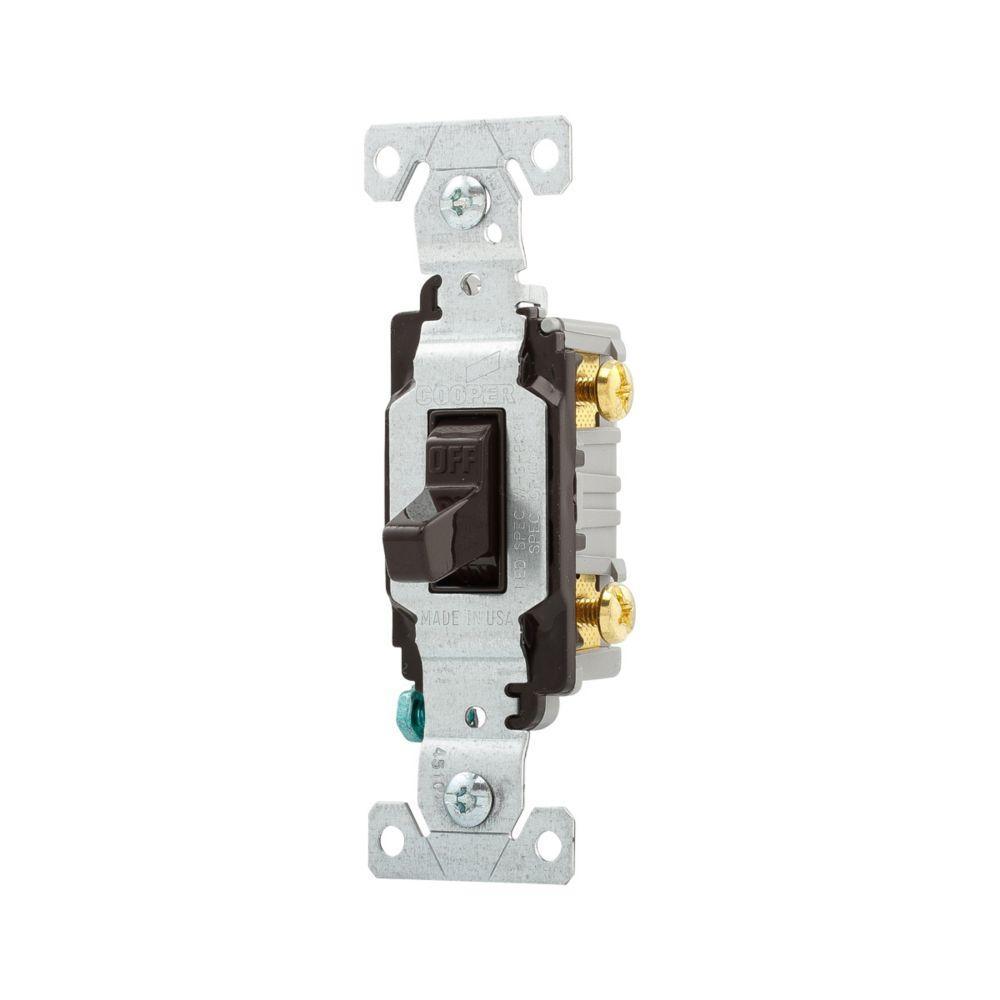

EATON Arrow Hart CS120B Heavy Duty Specification Grade Toggle Switch, 120/277 V, 20 A, 1 hp Power Rating
Part Number # CS120B
SKU # 2459665
$825.00
CS120B Key Features
| Part Number # : | CS120B |
|---|---|
| SKU #: | 2459665 |
| Actuator: | Compact Toggle |
| Dimensions: | 1.13 in W x 0.87 in D |
| UNSPSC: | 39122211 |
| UPC: | 032664750779 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$825.00
Quantity:
- EATON Arrow Hart Toggle Switch, Heavy Duty Specification Grade, Series: CS Series, 120/277 V, 20 A, 1 hp Power, 1 Pole, Compact Toggle Actuator, Wall Mounting, Side Wire/Screw Terminal, 50000 Cycles Operating Cycles, Nylon/PVC, Brown, Environmental Conditions: -40 to 65 deg C Operating Temperature, 1.13 in W x 0.87 in D Dimensions
CS120B Application
Commercial, Institutional Buildings and StructuresCS120B Item Features
- Spring cup toggle design for robust actuation
- Terminals accept up to 10 AWG solid or stranded wire
- 120/277 VAC rating ideal for fluorescent lighting fixtures typical in commercial applications
- Terminal screws are backed out and ready to wire
- Tri-combo head mounting and terminal screws ease installation
- 14 to 10 AWG terminal accommodation
- Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections
- 3.28 in L screw to screw
- 2.38 in L back
CS120B Standards
Federal Specification Classification 6241 05,NOM,cULus ListedSKU #2459665Part Number #CS120BUNSPSC39122211UPC032664750779
Image provided may only be a representation of final product and may include optional equipment
