Part Number # A1102/004
SKU # 2459768
A1102/004
LUTZE A1102/004
Part Number # A1102/004
SKU # 2459768
$43.20 / Each
Typical price:$56.55 / Each
LUTZE A1102/004 Key Features
| Brand: | LUTZE |
|---|---|
| Part Number # : | A1102/004 |
| SKU #: | 2459768 |
| Conductor Size: | 2/0 AWG |
| Conductor Type: | Tinned Copper |
| Jacket Color: | Black |
| Jacket Material: | PVC |
| Number of Conductors: | 4 |
| Outside Diameter: | 1.52 in |
| Series: | A110 |
| Strands: | 1344, 30 |
| Temperature Rating (Degrees F): | -40 to 90, 105 deg C Static |
| Type: | Flexible |
| Insulation material: | XLPE |
| Manufacturer Name: | LUTZE Inc |
| UNSPSC: | 0 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$43.20 / Each
Typical price:$56.55 / Each
Quantity:
- Silflex, A1102/004, Motor and Servo Cable, Flexible, Series: A110, 600, 1000 V, 4 Conductors, Tinned Copper Conductor, 2/0 AWG Conductor, 1.52 in OD, 1344, 30 Strands, XLPE Insulation, PVC Jacket, Black Jacket, -40 to 90, 105 deg C Static
A1102/004 Application
For Motor supply cable to connect power to 3-phase-motors and servo drives, Thermoset XLPE insulation offering superior overload and short-circuit temperature, TC-ER-JP for use with cable trays without conduit, which can reduce installation costs in industrial environments, WTTC - wind turbine tray cable rating for use in wind power generation, Dry, damp or wet conditionsA1102/004 Item Features
- Motor supply cable to connect power to 3-phase motors, VFDs and servo drives
- TC-ER-JP for use with cable trays without conduit, which can reduce installation costs in industrial environments
- Reduced cable ODs
- Flame retardant
- WTTC - wind turbine tray cable rating for use in wind power generation
- High insulation resistance and low capacitance cable
- Sunlight resistant
- Crush impact restitant and direct burial
- Non-wicking fillers
A1102/004 Standards
UL Flexible Motor Supply Cable|Flexible VFD Servo Cable|TC-ER|WTTC|UL DP-1|NEC 336/392|Class I and II, Div. 2|Zone 2 per NEC 501/502/505|Submersible Pump|C(UL) TC and CIC FT4|UL 1277|NFPA 79SKU #2459768Part Number #A1102/004UNSPSC0UPC

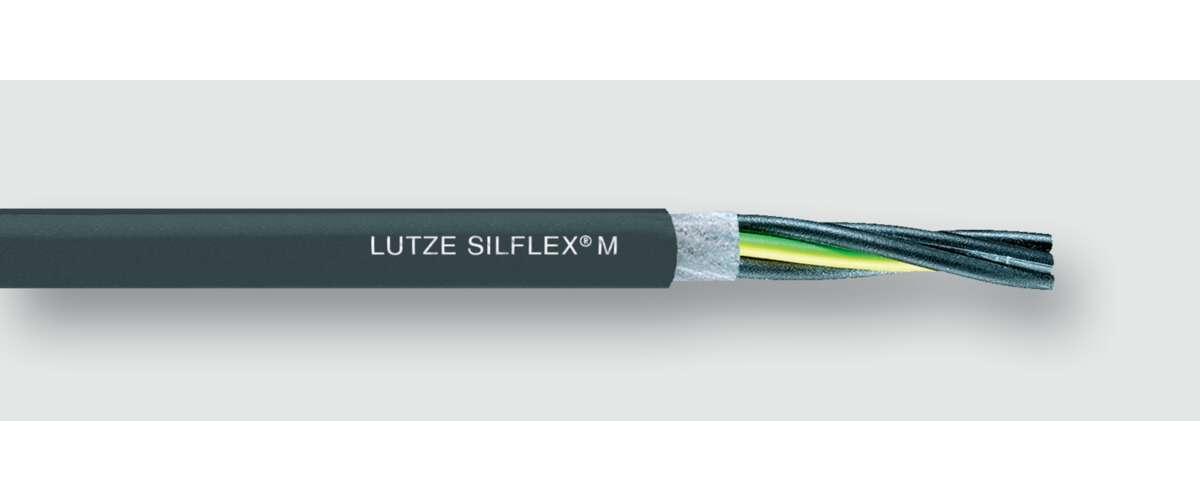

Image provided may only be a representation of final product and may include optional equipment
