Thomas & Betts ISRM32-26
Part Number # ISRM32-26
SKU # 2460165

ISRM32-26
Thomas & Betts ISRM32-26
Part Number # ISRM32-26
SKU # 2460165
Thomas & Betts ISRM32-26 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | ISRM32-26 |
| SKU #: | 2460165 |
| Cable Openings: | 19.94 to 26.04 mm |
| Dimensions: | 48.26 mm OD |
| Series: | ISR |
| UNSPSC: | 39121719 |
| UPC: | 00786210202945 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Thomas & Betts ISRM32-26
Brand: Thomas & Betts
Part Number: ISRM32-26

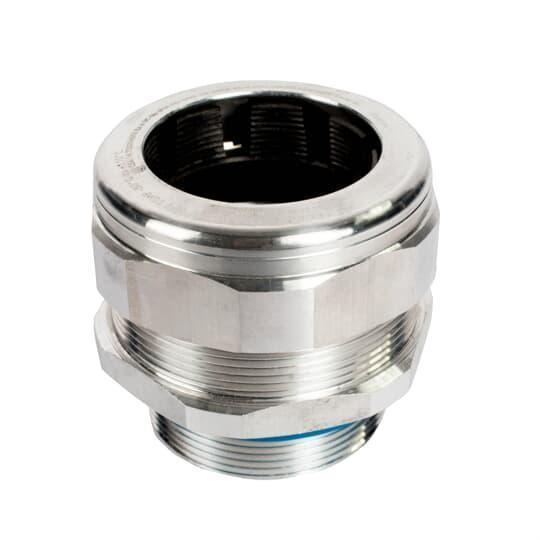

ABB Cable Gland, Strain Relief Straight, Series: ISR, M32 Trade, Cable Openings: 19.94 to 26.04 mm, Non-Armored/Portable/Tray Cable, Thread Connection, Aluminum, Metallic, -58 to 230 deg F, 48.26 mm OD Dimensions
Additional Description: TB -ISRM32-26 (N) TRAY/CORD AL FTG-M32 - 19.94-26.04 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Industrial Strain-Relief Fitting, Hub Size M32, Cable Range 19.94 to 26.04mm, CSA Listed, Outer Diameter 48.26mm, Aluminum
ISRM32-26 Application
For conduit system, industrial strain relief fittings, hazardous and industrial sites, extreme temperatures environments and physically demanding applicationsISRM32-26 Item Features
- 100% of IEC cable pull-out requirements with no external clamping
- High pullout force
- Wide interface seal
- Wide clamping range
- Compact construction
- IP66 rating
- Type 4X - ingress protection
ISRM32-26 Standards
UL 2225/514B File No. E328651/E311979/E13938/E307708 for Wet and Dry Locations|CSA C22.2-25/18.3/IEC/EN 60079-0, 60079-7, 60079-31|II 1D 2G, Ex e IIC Gb, Ex ta IIIC Da|C22.2-25 Class I DIV 2 ABCD, Class II DIV 1 EFG, Class III DIV1|ATEX 2014/34/EU/SIRA 14ATEX3238X|Class I Div 2 and Class II Div 1|CE Marked|IECEx CSA 14.0035X|ABS 16-HS1588269-PDA|CSA 70009467 File No. 23086SKU #2460165Part Number #ISRM32-26UNSPSC39121719UPC00786210202945
Image provided may only be a representation of final product and may include optional equipment
