Part Number # NMB8-30GM55-Z3-C-FE-300MM-V1
SKU # 2460276
NMB8-30GM55-Z3-C-FE-300MM-V1
Pepperl+Fuchs NMB8-30GM55-Z3-C-FE-300MM-V1
Part Number # NMB8-30GM55-Z3-C-FE-300MM-V1
SKU # 2460276
$204.96 / Each
Pepperl+Fuchs NMB8-30GM55-Z3-C-FE-300MM-V1 Key Features
| Brand: | Pepperl+Fuchs |
|---|---|
| Part Number # : | NMB8-30GM55-Z3-C-FE-300MM-V1 |
| SKU #: | 2460276 |
| Amperage Rating: | </=200 mA |
| Sensing Distance: | 8 mm |
| Sensing Method: | Inductive |
| Series: | NMB8 |
| Size: | 30 mm Dia x 55 mm L |
| Switching Speed: | 5 Hz |
| Type: | Tubular |
| UNSPSC: | 41111926 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$204.96 / Each
Quantity:
Pepperl+Fuchs NMB8-30GM55-Z3-C-FE-300MM-V1
Brand: Pepperl+Fuchs
Part Number: NMB8-30GM55-Z3-C-FE-300MM-V1

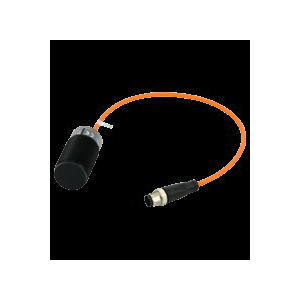

Pepperl+Fuchs® Proximity Sensor, Tubular, Series: NMB8, Inductive Sensing Method, 8 mm Sensing Distance, NO, 6 to 30 VDC,
Additional Description: PF -NMB8-30GM55-Z3-C-FE-300MM-V1 INDUCTIVE DC
NMB8-30GM55-Z3-C-FE-300MM-V1 Item Features
- Weld field immune
- Weld slag resistant coating
- Ferrous targets
- 0 to 6.48 mm assured operating distance
- Actuating element ferrous targets
- Reverse polarity protection
- LED, red switching state indicator
- 3-pin, M12 x 1 connector x 300 mm POC cable connection
- Xylan coated stainless steel 1.4305/AISI 303 sensing face
- IP67 degree of protection
- Xylan coated housing
- 2-wire DC output polarity
NMB8-30GM55-Z3-C-FE-300MM-V1 Standards
cULus|cCSAus Listed|CCC CertifiedSKU #2460276Part Number #NMB8-30GM55-Z3-C-FE-300MM-V1UNSPSC41111926UPC
Image provided may only be a representation of final product and may include optional equipment
