Part Number # NMB1,5-8GM23-Z3-C-FE-850MM-V1
SKU # 2460277
NMB1,5-8GM23-Z3-C-FE-850MM-V1

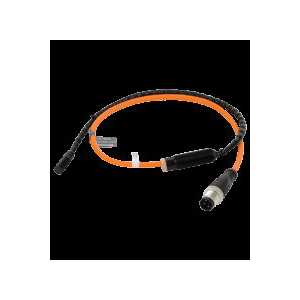

Pepperl+Fuchs NMB1,5-8GM23-Z3-C-FE-850MM-V1 Cylinder Tubular Proximity Sensor, Inductive, NO Contact, 6 to 30 V DC, 5 Hz Switching Speed
Part Number # NMB1,5-8GM23-Z3-C-FE-850MM-V1
SKU # 2460277
$228.48
NMB1,5-8GM23-Z3-C-FE-850MM-V1 Key Features
| Part Number # : | NMB1,5-8GM23-Z3-C-FE-850MM-V1 |
|---|---|
| SKU #: | 2460277 |
| Amperage Rating: | 2 to 100 mA |
| Contact Configuration: | NO |
| Sensing Distance: | 1.5 mm |
| Sensing Method: | Inductive |
| Series: | Cylinder |
| Size: | 8 mm Dia |
| Switching Speed: | 5 Hz |
| Temperature Rating (Degrees F): | -13 to 158 deg F |
| Type: | Tubular |
| Material: | Stainless Steel |
| Mounting type: | Flush |
| Manufacturer Name: | Pepperl+Fuchs |
| UNSPSC: | 41111926 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$228.48
Quantity:
- Pepperl+Fuchs Proximity Sensor, Tubular, Series: Cylinder, Inductive Sensing Method, 1.5 mm Sensing Distance, NO, 6 to 30 V DC, 2 to 100 mA, 5 Hz Switching Speed, 8 mm Dia, -13 to 158 deg F, Flush Mount, Stainless Steel
NMB1,5-8GM23-Z3-C-FE-850MM-V1 Item Features
- Weld field immune
- Weld slag resistant coating
- 0 to 1.215 mm assured operating distance
- Actuating element ferrous targets
- Reverse polarity protection
- Pulsing short-circuit protection
- LED, red switching state indicator
- 4-pin, M12 x 1 connector with TPE cable, 850 mm
- Xylan coated stainless steel 1.4305/AISI 303 sensing face
- IP67 degree of protection
- Xylan coated housing
- 2-wire DC output polarity
NMB1,5-8GM23-Z3-C-FE-850MM-V1 Standards
cULus|cCSAus Listed|CCC CertifiedSKU #2460277Part Number #NMB1,5-8GM23-Z3-C-FE-850MM-V1UNSPSC41111926UPC
Image provided may only be a representation of final product and may include optional equipment
